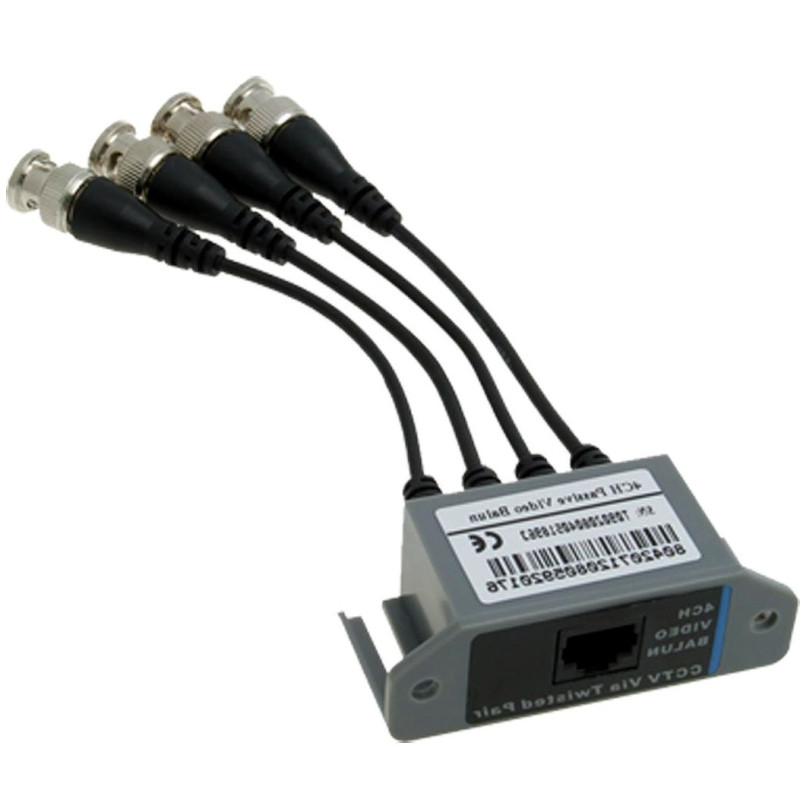

Video Transformer over Twisted Pair 4 Channels CCTV Industrial Cameras UTP RJ45 Network Cable

Model: ACTii AC2051

EAN: 6931240020517 SKU: 2051987631

• Transmission range up to 600m
• Robust design
• Cables facilitate device connection

Description

The transformer is designed to transmit a video signal from four cameras using a twisted pair cable. The device matches the impedance of a 75 OHM coaxial cable to the impedance of a symmetrical cable, ensuring video signal transmission up to 600m (Category 5 twisted pair cable). The transformer is a passive device that does not require a power supply. To build a complete signal transmission path, two such devices are required.

Specification

Transformer parameters

Range: 600 m

Input/Output voltage range: 75 OHM (CVBS) 1 Vpp

Insertion loss: -0.5 dB (for f=5 Mhz)

Video bandwidth: 0-50 Mhz (-3 dB)

CMRR (dB @ 5MHz): 50 dB

Coaxial input/output impedance: 75 OHM

Symmetrical input/output impedance: 100 OHM

Separation between inputs: -50dB

Coaxial input/output connector type: 4x BNC plug

Symmetrical input/output connector type: RJ-45 (8-pin, 4 pairs)

Operating temp. / relative humidity: -20 C ... +55 C / <95%

Housing

Material: thick plastic

Color: gray

Additional mounts facilitate attachment, e.g., to a wall

Set contents

Transformer

User manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 35 x 75 x 25 mm (D x W x H)

Package dimensions: 100 x 60 x 60 mm (D x W x H)

Product weight: 120 g

Weight including packaging: 130 g
