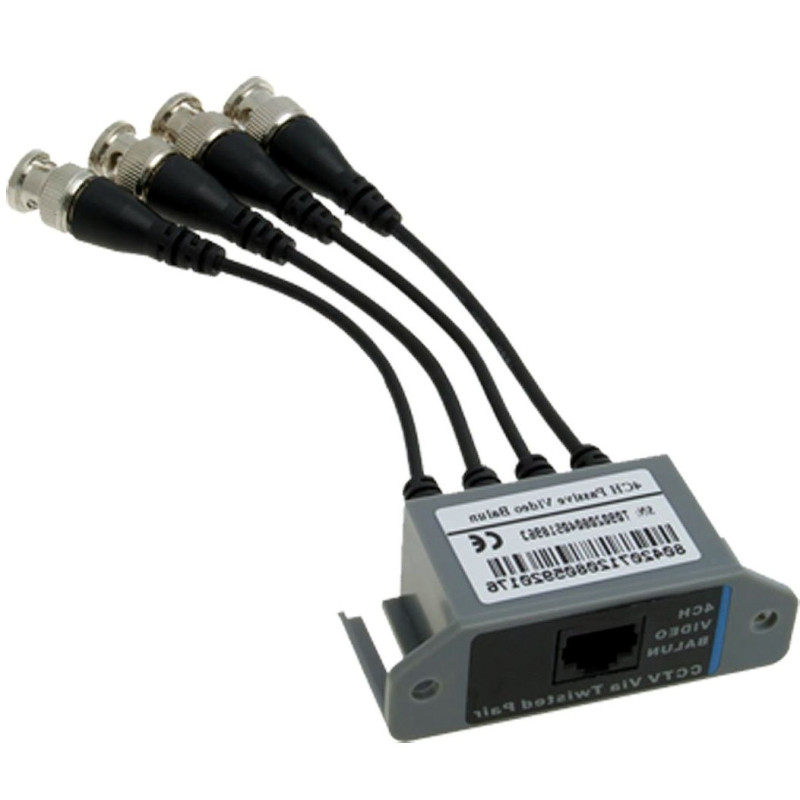

VIDEO Balun Twisted Pair 4 Channels CCTV Industrial Cameras UTP RJ45 Network Cable

Model: ACTii AC2051

EAN: 6931240020517 SKU: 2051987631

• Transmission range up to 600m
• Solid construction
• Cables facilitate device connection

Description

The transformer is designed for video signal transmission from four cameras using twisted pair network cable. The device matches the impedance of 75 OHM coaxial cable to the impedance of the balanced cable, ensuring video signal transmission up to 600m (category 5 twisted pair cable). The transformer is a passive device and does not require power. Two such devices are required to build a full signal transmission path.

Specification

Transformer parameters

Range: 600 m

Input/Output voltage range: 75 OHM (CVBS) 1 Vpp

Insertion loss: -0.5 dB (for f=5 Mhz)

Video bandwidth: 0-50 Mhz (-3 dB)

CMRR (dB @ 5MHz): 50 dB

Coaxial input/output impedance: 75 OHM

Balanced input/output impedance: 100 OHM

Separation between inputs: -50dB

Coaxial input/output connector type: 4xBNC plug

Balanced input/output connector type: RJ-45 (8-pin, 4 pairs)

Operating temp. / relative humidity: -20C ... +55C / <95%

Housing

Material: thick plastic

Color: gray

Additional mounts facilitate attachment e.g. to the wall

Set contents

Transformer

User manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 35 x 75 x 25 mm (D x W x H)

Packaging dimensions: 100 x 60 x 60 mm (D x W x H)

Product weight: 120 g

Weight with packaging: 130 g
