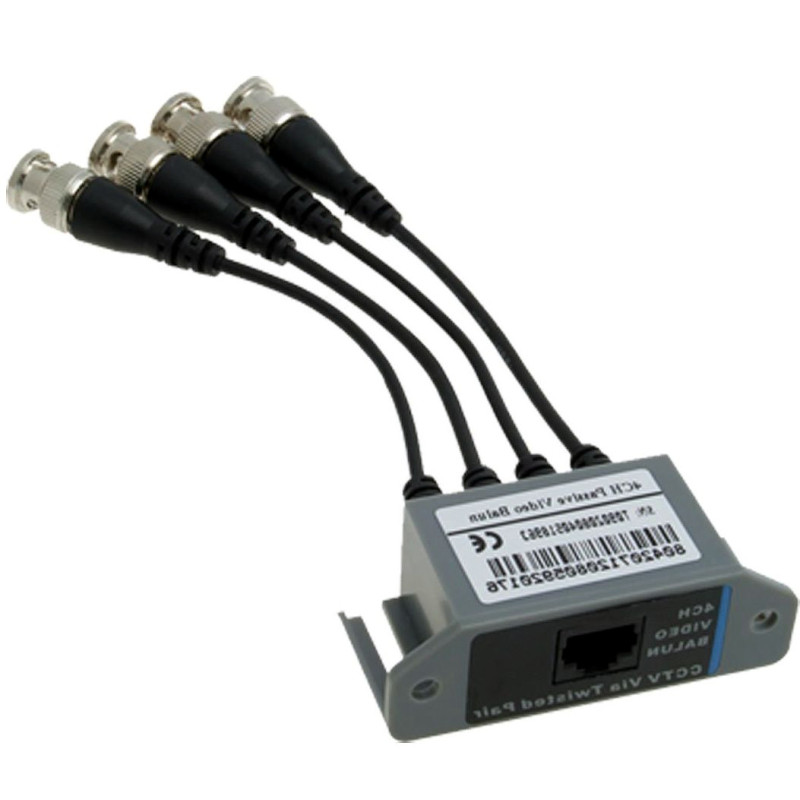

VIDEO Balun over twisted pair 4 channels CCTV Industrial Cameras UTP RJ45 Network Cable

Model: ACTii AC2051

EAN: 6931240020517 SKU: 2051987631

• Transmission range up to 600m
• Solid workmanship
• Cables facilitate device connection

Description

The transformer is designed to transmit a video signal from four cameras using a twisted pair computer cable. The device matches the 75 OHM coaxial cable impedance to the balanced line impedance, ensuring video signal transmission up to 600m (category 5 twisted pair cable). The transformer is a passive device that does not require power. Two such devices are required to build a full signal transmission path.

Specification

Transformer parameters

Range: 600 m

Input/output voltage range: 75 OHM (CVBS) 1 Vpp

Insertion loss: -0.5 dB (for f=5 Mhz)

Video bandwidth: 0-50 Mhz (-3 dB)

CMRR (dB @ 5MHz): 50 dB

Coaxial input/output impedance: 75 OHM

Balanced input/output impedance: 100 OHM

Crosstalk between inputs: -50dB

Coaxial input/output connector type: 4xBNC plug

Balanced input/output connector type: RJ-45 (8-pin, 4 pairs)

Operating temp. / rel. humidity: -20st C ... +55st C / <95%

Housing

Material: thick plastic

Color: gray

Additional mounts facilitate attachment e.g. to a wall

Set contents

Transformer

User manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 35 x 75 x 25 mm (Depth x Width x Height)

Package dimensions: 100 x 60 x 60 mm (Depth x Width x Height)

Product weight: 120 g

Weight with packaging: 130 g
