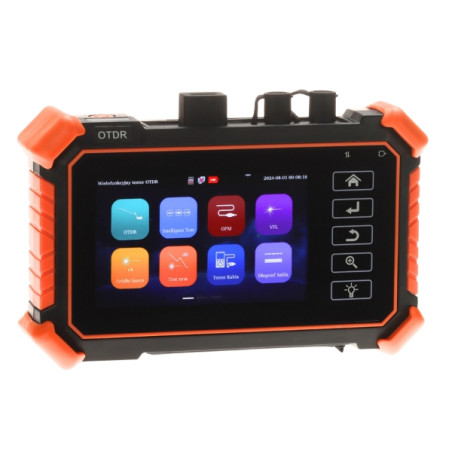

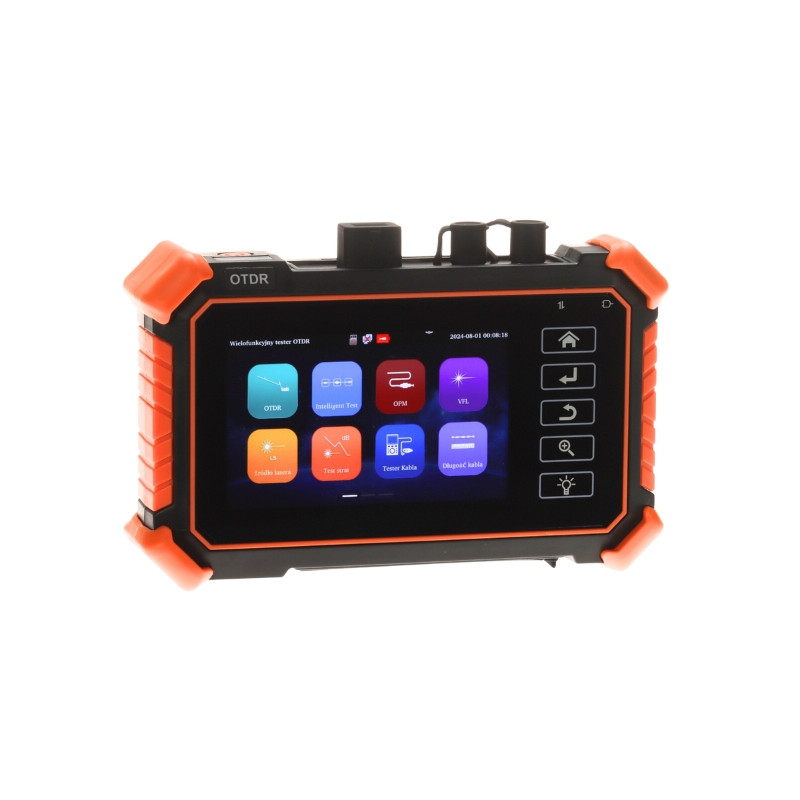

Optical Time Domain Reflectometer OTDR Optical Power Meter RJ45 Network Tester VFL PING 4 Inch Touch Delta Tester CS-R3-40H
zł1,139.47
Tax included
The CS-R3-40H optical reflectometer is an advanced and compact diagnostic device that is an essential piece of equipment for every professional installer of fiber optic and copper networks. This product integrates the functions of multiple measuring tools into one handy housing, which significantly improves field work. The device's main task is to diagnose fiber optic links (OTDR) at wavelengths of 1310 nm and 1550 nm, which allows for precise fault localization, fiber bending, and loss measurement on splices and connectors with an impressive range of up to 200 kilometers.
A major advantage of the CS-R3-40H model is its equipment with a precise Optical Power Meter (OPM), a stabilized Optical Light Source (OLS), and a high-sensitivity Visual Fault Locator (VFL). Additionally, the device offers a wide suite of tools for verifying Ethernet networks and structured cabling. The user has access to an RJ45 twisted-pair tester, a PING test function, and IP address scanning, allowing for instantaneous verification of connections in IP monitoring systems or LAN networks.
A modern, 4-inch touchscreen provides intuitive, smartphone-like operation, which, combined with the graphical event map function, allows for easy interpretation of measurement results even by less experienced technicians. The device is powered by an efficient 4000 mAh lithium-polymer battery, ensuring long operation time without the need for frequent charging. A built-in LED flashlight further facilitates work in dark rooms and server cabinets. The solid construction and included protective case make the CS-R3-40H a reliable partner in the most difficult installation conditions, combining laboratory precision with the mobility of field equipment.
Optical Time Domain Reflectometer OTDR Optical Power Meter RJ45 Network Tester VFL PING 4 Inch Touch
Model: Delta Tester CS-R3-40H
EAN: 6931240022917 SKU: 931022916
- Multifunctional optical reflectometer OTDR (1310/1550 nm)
- Built-in Optical Power Meter (OPM) and Optical Light Source (OLS)
- Visual Fault Locator (VFL)
- RJ45/UTP cable tester with TDR function (up to 600m)
- Network tools: PING test and IP address scanning
- Intuitive 4-inch color touchscreen
- 'Event Map' function – graphical presentation of line events
- Generation of professional measurement reports in PDF
- Li-Poly 4000 mAh battery with USB-C charging
- Integrated LED flashlight and practical carrying case included
Description
The CS-R3-40H optical reflectometer is an advanced and compact diagnostic device that is an essential piece of equipment for every professional installer of fiber optic and copper networks. This product integrates the functions of multiple measuring tools into one handy housing, which significantly improves field work. The device's main task is to diagnose fiber optic links (OTDR) at wavelengths of 1310 nm and 1550 nm, which allows for precise fault localization, fiber bending, and loss measurement on splices and connectors with an impressive range of up to 200 kilometers.
A major advantage of the CS-R3-40H model is its equipment with a precise Optical Power Meter (OPM), a stabilized Optical Light Source (OLS), and a high-sensitivity Visual Fault Locator (VFL). Additionally, the device offers a wide suite of tools for verifying Ethernet networks and structured cabling. The user has access to an RJ45 twisted-pair tester, a PING test function, and IP address scanning, allowing for instantaneous verification of connections in IP monitoring systems or LAN networks.
A modern, 4-inch touchscreen provides intuitive, smartphone-like operation, which, combined with the graphical event map function, allows for easy interpretation of measurement results even by less experienced technicians. The device is powered by an efficient 4000 mAh lithium-polymer battery, ensuring long operation time without the need for frequent charging. A built-in LED flashlight further facilitates work in dark rooms and server cabinets. The solid construction and included protective case make the CS-R3-40H a reliable partner in the most difficult installation conditions, combining laboratory precision with the mobility of field equipment.
Specification
Display and Interface
4 inch - touchscreen, color, high sensitivity
Optical wavelengths (OTDR)
1310 nm / 1550 nm
Optical Power Meter (OPM)
Wavelength range: 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
Optical Light Source (OLS)
1310 / 1550 nm; Operating modes: CW / 270 Hz / 330 Hz / 1000 Hz / 2000 Hz
VFL (Fault Locator)
Built-in fiber optic laser tester (visible red light)
Connectors
SC-UPC for OTDR, Universal 2.5 mm connector for OPM and VFL
OTDR measurement range
From 0.5 km to 200 km
Dynamic range
26 dB / 24 dB
Copper RJ45 tests
Continuity test, pair sequence, cable length; TDR reflectometer up to 600 m
IP Tools
PING test (host availability verification), IP Scanning (device detection in the network)
Additional functions
Built-in LED flashlight, PDF report generation with data export
Power supply
Li-Poly 3.7 V / 4000 mAh battery; Charging 5 V DC / 2 A via USB-C port (power adapter included)
Operating conditions
Temperature: -10 °C ... 50 °C; Relative humidity: 30 % ... 90 %
Physical parameters
Dimensions: 160 x 100 x 45 mm; Weight: 0.40 kg
System Software and Functionality
The CS-R3-40H reflectometer system software offers an advanced user interface optimized for the touchscreen. A key module is the 'Event Map', which automatically analyzes the reflectogram and presents results in the form of clear graphic icons representing splices, connectors, and line ends, eliminating interpretation errors. The system enables immediate generation of measurement reports in PDF format directly on the device's memory, allowing for quick transfer of documentation upon completion of work. Network tools such as PING and IP scanner are integrated in a way that allows simultaneous work on verifying cabling and active devices. The software ensures smooth energy management and intuitive data export via the USB-C port, and regular updates allow for the expansion of the base of supported standards and diagnostic functions.
Contents
1x Optical reflectometer
1x Carrying case
1x USB-C power adapter
1x RJ45 termination tester
1x Wrist strap
Dimensions, Weight
Product dimensions: 45 x 160 x 100 mm (D x W x H)
Package dimensions: 90 x 200 x 160 mm (D x W x H)
Product weight: 400 g
Weight with package: 820 g
