Double sideband TV modulator, microprocessor control, LED display, PLL, RTV SAT signal summing Terra MT-47
zł245.80
Tax included

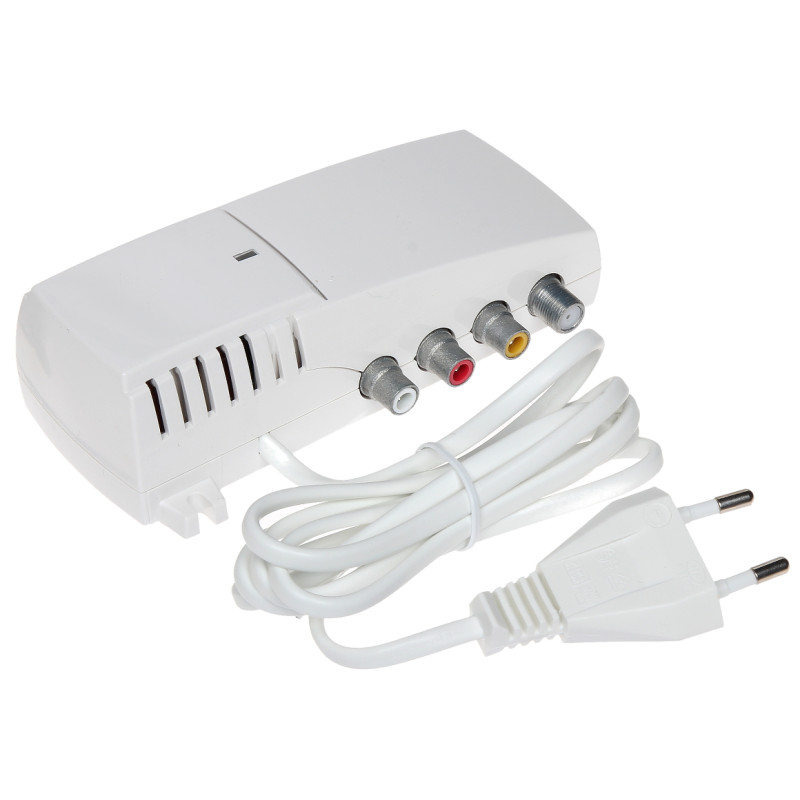

The MT-47 modulator is a professional electronic device designed for use in terrestrial television systems and video surveillance installations. It is a double sideband modulator, which means high flexibility in selecting output channels. The main task of the device is to convert an analog audio and video signal (e.g., from an industrial camera, multimedia player, or decoder) into a high-frequency RF signal that can be transmitted via coaxial cable to multiple television receivers simultaneously.
The device features advanced microprocessor control, which translates into exceptional operational precision and ease of configuration. The output channel selection is performed digitally using two buttons hidden under an aesthetic cover. The current channel number and other operating parameters are presented on a clear LED display, which eliminates errors during installation. Thanks to the use of a quartz frequency stabilization system (PLL), the carrier frequency error is practically zero, which guarantees a stable image without interference and the need for receiver tuning.
A key advantage of the MT-47 model is the possibility of cascading, which allows for the construction of extensive headend stations supporting multiple channels. The modulator also allows for summing the modulated signal with an existing terrestrial television signal, making it an ideal solution for upgrading existing RTV networks. The manufacturer has ensured configuration security by introducing a lock function against unauthorized access. Additionally, the device supports a wide range of PAL system standards, including B/G/D/K/H/I/L/M/N versions and the Australian standard, which ensures full compatibility with receivers worldwide. A solid housing and high-quality F-type connectors guarantee longevity and reliability in continuous operation.
Double sideband TV modulator, microprocessor control, LED display, PLL, RTV SAT signal summing
Model: Terra MT-47
EAN: 6931240039809 SKU: 931039805
- Double sideband modulator with microprocessor control
- Digital output channel selection via buttons
- Clear LED display showing operating parameters
- Quartz frequency stabilization system (PLL) ensuring signal stability
- Non-volatile memory storing settings after power loss
- Possibility of cascading multiple modulators
- Function for summing modulated signal with terrestrial TV signal
- Protection against unauthorized access to settings
- Support for multiple PAL system variants and Australian standard
- RF input/output loop-through carrying full RTV/SAT band up to 2150MHz
Description
The MT-47 modulator is a professional electronic device designed for use in terrestrial television systems and video surveillance installations. It is a double sideband modulator, which means high flexibility in selecting output channels. The main task of the device is to convert an analog audio and video signal (e.g., from an industrial camera, multimedia player, or decoder) into a high-frequency RF signal that can be transmitted via coaxial cable to multiple television receivers simultaneously.
The device features advanced microprocessor control, which translates into exceptional operational precision and ease of configuration. The output channel selection is performed digitally using two buttons hidden under an aesthetic cover. The current channel number and other operating parameters are presented on a clear LED display, which eliminates errors during installation. Thanks to the use of a quartz frequency stabilization system (PLL), the carrier frequency error is practically zero, which guarantees a stable image without interference and the need for receiver tuning.
A key advantage of the MT-47 model is the possibility of cascading, which allows for the construction of extensive headend stations supporting multiple channels. The modulator also allows for summing the modulated signal with an existing terrestrial television signal, making it an ideal solution for upgrading existing RTV networks. The manufacturer has ensured configuration security by introducing a lock function against unauthorized access. Additionally, the device supports a wide range of PAL system standards, including B/G/D/K/H/I/L/M/N versions and the Australian standard, which ensures full compatibility with receivers worldwide. A solid housing and high-quality F-type connectors guarantee longevity and reliability in continuous operation.
Specification
Device type
Double sideband analog TV modulator
Signal inputs
1x Video composite (Cinch), 1x RF (F), 2x Audio (Cinch)
Signal outputs
1x RF (F)
Video parameters
Frequency range: 20 Hz ... 6 MHz; Level/impedance: 1 V ± 1 dB / 75 Ω; Frequency response: ± 1 dB
Audio parameters
Frequency range: 20 Hz ... 15 kHz; Level adjustment: 1 ... -14 dB; Level/impedance/deviation: 775 mV RMS / 10 kΩ / 50 kHz
RF output characteristics
Typical level: 85 dBµV; Impedance: 75 Ω; Level adjustment: 0 ... -20 dB
RF frequency range
VHF: 170 MHz ... 230 MHz (K6-12); UHF: 470 MHz ... 862 MHz (K21-69)
Standards and modulation
PAL versions: B/G/D/K/H/I/L/M/N/Australia; Amplitude modulation depth: 81%; A/V ratio: 12 / 16 dB
Subcarriers and carriers
Audio subcarrier frequency: 4.5, 5.5, 6.0, 6.5 MHz; Video carrier adjustment range: ± 2.25 MHz (0.25 MHz step); Carrier accuracy: ± 50 kHz
Signal loop-through
Frequency range: 47 MHz ... 2150 MHz; SAT loop-through attenuation: 2.5 dB; Terr loop-through attenuation: 1.5 dB
Signal quality
SNR (weighted): ≥ 55 dB
Power supply and consumption
Power supply: 230 V AC @ 50Hz; Power consumption: 2.5 W
Environmental conditions
Operating temperature: -10 °C ... 50 °C
Construction and dimensions
Device dimensions: 133 x 73 x 39 mm; Weight: 0.336 kg; Housing with LED display and control buttons
Software and control
The MT-47 device is equipped with dedicated firmware managed by a built-in microprocessor. This system is responsible for precise control of the PLL generator, which eliminates frequency errors and ensures output signal stability. The user interface based on two buttons allows for intuitive navigation through the configuration menu, visible on the LED display. The software allows for digital adjustment of the audio input level, signal deviation, as well as changing the audio subcarrier offset from the video carrier. All changes made are automatically saved in the integrated non-volatile memory, so the device retains the full configuration even after complete power disconnection. Additionally, the software implements advanced algorithms for supporting multiple PAL standards, which makes the device universal for global markets.
Contents
1x TV Modulator MT-47
1x User manual
1x Mounting accessories
Dimensions, Weight
Product dimensions: 39 x 133 x 73 mm (D x W x H)
Packaging dimensions: 50 x 140 x 95 mm (D x W x H)
Product weight: 336 g
Weight with packaging: 380 g
