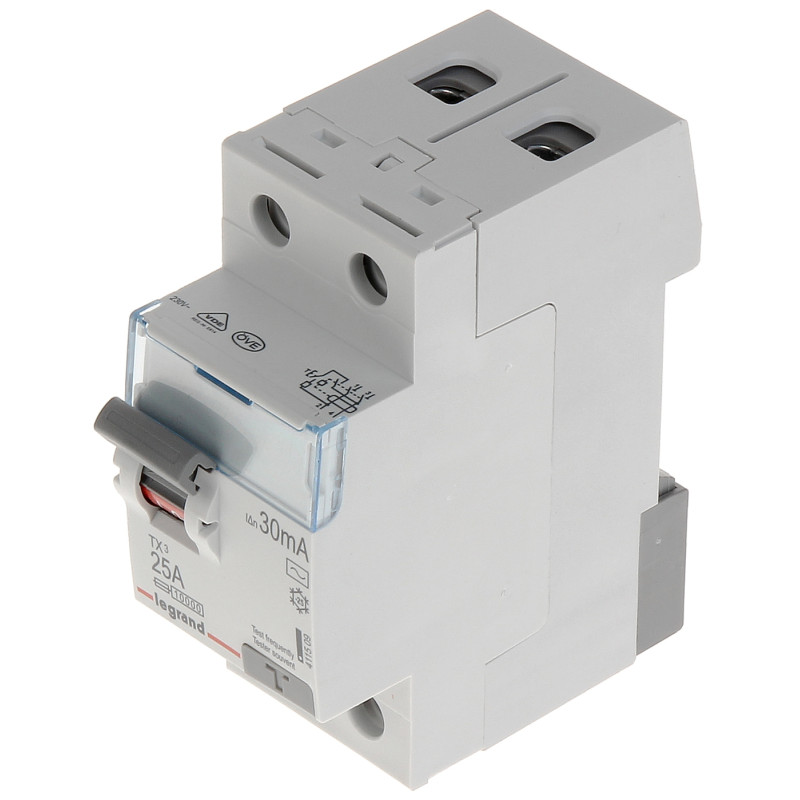

Single-phase residual current circuit breaker Type AC 30mA 25A RCD DIN rail TS-35 LEGRAND LE-411509
zł208.01
Tax included
The LE-411509 residual current circuit breaker is a key component of any modern electrical installation, ensuring the highest level of user safety and property protection against the effects of failures. This device has been designed by a renowned manufacturer, which guarantees reliability and precision of operation for many years of use in domestic and industrial conditions.
The main task of this single-phase AC type circuit breaker is to immediately disconnect the power supply upon detecting current leakage, which effectively protects against electric shock from indirect and direct contact. It is an essential protection in every electrical circuit.
Product advantages:
- High sensitivity: A rated residual current of 30 mA allows for an instantaneous reaction in life-threatening situations.
- Solid construction: Made of high-quality plastic resistant to mechanical damage and high temperatures.
- Easy installation: Standard mounting on a DIN rail TS-35 allows for quick installation in most electrical distribution boards available on the market.
- Compatibility: The possibility of expansion with auxiliary contacts, releases, and drives from the DX3 series significantly increases the functionality of the device.
- Readability: A special space on the front of the housing allows for placing a circuit description, which facilitates identification and maintenance of the installation.
- Safety: A rated short-circuit breaking capacity of 10000 A ensures protection even in difficult network operating conditions.
This product is essential in single-family homes, apartments, and office buildings where the safety of the electrical installation is a priority. Thanks to the use of screw terminals, the wire connection is durable and secure, which minimizes the risk of failures resulting from poor electrical contact.
Single-phase residual current circuit breaker Type AC 30mA 25A RCD DIN rail TS-35
Model: LEGRAND LE-411509
EAN: 6931240028162 SKU: 931028161
- Single-phase residual current circuit breaker type AC
- Rated residual current 30 mA for shock protection
- Rated current 25 A
- Rated short-circuit breaking capacity 10000 A
- Mounting on standard DIN rail TS-35
- Compatible with DX3 series auxiliary contacts and releases
- Dedicated space for circuit description label
- Connection possible via comb or pin busbars
- Robust plastic housing
Description
The LE-411509 residual current circuit breaker is a key component of any modern electrical installation, ensuring the highest level of user safety and property protection against the effects of failures. This device has been designed by a renowned manufacturer, which guarantees reliability and precision of operation for many years of use in domestic and industrial conditions.
The main task of this single-phase AC type circuit breaker is to immediately disconnect the power supply upon detecting current leakage, which effectively protects against electric shock from indirect and direct contact. It is an essential protection in every electrical circuit.
Product advantages:
- High sensitivity: A rated residual current of 30 mA allows for an instantaneous reaction in life-threatening situations.
- Solid construction: Made of high-quality plastic resistant to mechanical damage and high temperatures.
- Easy installation: Standard mounting on a DIN rail TS-35 allows for quick installation in most electrical distribution boards available on the market.
- Compatibility: The possibility of expansion with auxiliary contacts, releases, and drives from the DX3 series significantly increases the functionality of the device.
- Readability: A special space on the front of the housing allows for placing a circuit description, which facilitates identification and maintenance of the installation.
- Safety: A rated short-circuit breaking capacity of 10000 A ensures protection even in difficult network operating conditions.
This product is essential in single-family homes, apartments, and office buildings where the safety of the electrical installation is a priority. Thanks to the use of screw terminals, the wire connection is durable and secure, which minimizes the risk of failures resulting from poor electrical contact.
Specification
Device type
Professional residual current circuit breaker (RCD - Residual Current Device) designed for shock protection in low-voltage installations.
Network type and number of phases
Device dedicated to operation in single-phase (1-phase) installations, providing circuit separation in case of detecting irregularities.
Sensitivity characteristics
Type AC - the circuit breaker reacts to sinusoidal alternating residual currents, which is the standard in most domestic and office lighting circuits and socket outlets.
Rated residual current
30 mA (0.03 A) - this value is the standard for supplementary protection, protecting human life against the effects of direct contact with live parts.
Rated continuous current
25 A - the maximum current that can flow through the device contacts continuously without causing it to trip or suffer thermal damage.
Pole configuration
2-pole (2P), which allows for simultaneous disconnection of the phase and neutral wire, increasing safety during maintenance work.
Rated short-circuit breaking capacity
10000 A (10 kA) - parameter defining the circuit breaker's ability to safely interrupt short-circuit current without destroying the apparatus.
Rated insulation and operating voltage
230 V AC - optimized for standard European electrical power networks.
Operating frequency
50 Hz - device fully adapted for operation in the European power grid.
Terminal technology
Equipped with solid screw (cage) terminals that guarantee secure clamping of wires of various cross-sections and prevent them from loosening.
Expansion options and accessories
Full compatibility with DX3 series auxiliary equipment, including auxiliary contacts, signaling contacts, shunt trips, and remote control drives.
Mounting standard
Adapted for mounting on a TH-35 mounting bracket (DIN rail), which ensures compatibility with most modern modular distribution boards.
Modular dimensions
The device width is 2 modules (36 mm), which allows for optimal space management in the distribution cabinet.
Additional housing functions
Integrated window with a transparent flap for circuit description and the possibility of power supply via comb or pin busbars from the top or bottom.
Durability and materials
Housing made of non-flammable plastic with high resistance to tracking currents, ensuring longevity and stability of electrical parameters.
Contents
1x Residual current circuit breaker LE-411509 Legrand
1x Quick installation and operation manual
1x Manufacturer's declaration of conformity
Dimensions, Weight
Product dimensions: 75 x 36 x 83 mm (D x W x H)
Package dimensions: 40 x 105 x 85 mm (D x W x H)
Product weight: 186 g
Weight with packaging: 206 g
