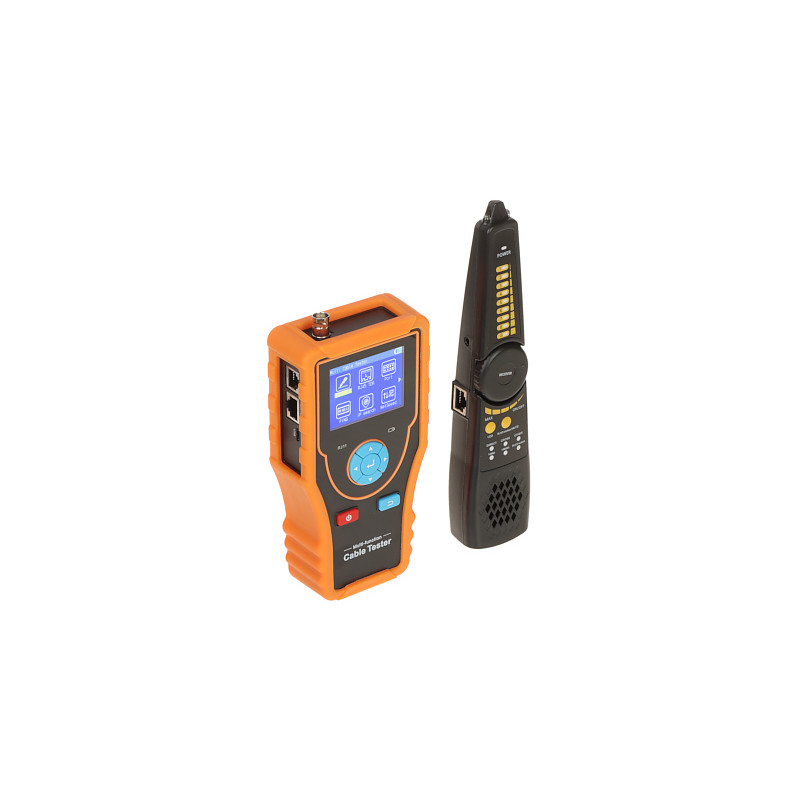

Network and telephone cable tester with TDR reflectometer and PING test CS-NT24
zł627.79
Tax included
The professional CS-NT24 cable tester is an advanced diagnostic tool designed for installers of CCTV systems, computer networks, and telecommunications. The device enables precise measurement of cable continuity, identification of cable type, and detection of telephone line status. The tester supports a wide range of cables, including UTP/STP twisted pair (cat. 5, 5e, 6, 6e) and coaxial cables. Thanks to the built-in TDR reflectometer, the user can quickly locate faults, measure cable length, attenuation, impedance, and reflection coefficient, which significantly reduces service time. An additional advantage is the PING test function, which allows for verifying the correct operation of the Ethernet port in IP cameras and other network devices, as well as checking the availability of IP addresses on the network. The device features a clear 2.4-inch LCD display that presents measurement results in an easy-to-read manner. The built-in 2000 mAh Li-Ion battery provides up to 16 hours of continuous operation, making it an ideal solution for field work. The set also includes a probe that facilitates the identification of a specific cable in a large bundle. The entire kit is enclosed in a handy case, ensuring protection during transport.
Network and telephone cable tester with TDR reflectometer and PING test
Model: CS-NT24
EAN: 6931240028315 SKU: 931028310
- Built-in TDR reflectometer for measuring cable length and parameters
- PING test for verifying Ethernet ports and IP addresses
- Cable identification in a bundle using a probe
- Support for UTP, STP, RJ45, RJ11 and coaxial cables
- 2.4-inch LCD display (320x240 px)
- Operating time up to 16 hours on a single charge
- Automatic shutdown (10-120 minutes)
- Detection of telephone line status and switch ports
Description
The professional CS-NT24 cable tester is an advanced diagnostic tool designed for installers of CCTV systems, computer networks, and telecommunications. The device enables precise measurement of cable continuity, identification of cable type, and detection of telephone line status. The tester supports a wide range of cables, including UTP/STP twisted pair (cat. 5, 5e, 6, 6e) and coaxial cables. Thanks to the built-in TDR reflectometer, the user can quickly locate faults, measure cable length, attenuation, impedance, and reflection coefficient, which significantly reduces service time. An additional advantage is the PING test function, which allows for verifying the correct operation of the Ethernet port in IP cameras and other network devices, as well as checking the availability of IP addresses on the network. The device features a clear 2.4-inch LCD display that presents measurement results in an easy-to-read manner. The built-in 2000 mAh Li-Ion battery provides up to 16 hours of continuous operation, making it an ideal solution for field work. The set also includes a probe that facilitates the identification of a specific cable in a large bundle. The entire kit is enclosed in a handy case, ensuring protection during transport.
Specification
Tested cables
STP / UTP cat. 5, 5e, 6, 6e - RJ45 (8P8C), RJ11 (6P4C), Coaxial cable
Power supply
Tester: Li-Ion battery 3.7V / 2000mAh, USB power adapter DC 5V/2A; Probe: 2 x Battery 1.5V AA/LR6/FR6
Charging time
3 hours
Operating time
Up to 16 hours
Display
2.4 inch LCD, resolution 320 x 240 px
TDR test
Measurement of pair status, length (max 180m), attenuation, reflection coefficient, impedance and skew
PING test
Verification of correct operation of the IP camera Ethernet port and correctness of the IP address
Network functions
IP network scanning, network port identification, duplex mode detection
Cable location
Cable identification in a bundle, UTP cable sequence and type test, RJ45 connector fault detection
Additional functions
Telephone line status detection, automatic shutdown (10-120 min)
Warranty
2 years
Software
The device has a built-in diagnostic interface supporting advanced network functions. The software allows for performing a PING test, which checks connectivity with network devices (e.g., IP cameras) and verifies the availability of IP addresses on the network. The IP network scanning function allows for quick identification of connected devices. The TDR (Time Domain Reflectometry) software is used for precise analysis of the physical layer of the cable, detecting breaks, shorts, and measuring cable length with high accuracy. The user interface is optimized for fast diagnostics, offering an intuitive menu for managing cable sequence tests and identifying ports in switches. The system automatically detects the duplex mode and telephone line status, presenting the results on a clear LCD display.
Contents
1x Tester CS-NT24
1x Probe
1x USB power adapter 5V/2A
1x Case
Dimensions, Weight
Product dimensions: 40 x 175 x 88 mm (D x W x H)
Package dimensions: 105 x 260 x 145 mm (D x W x H)
Product weight: 390 g
Weight with packaging: 1040 g
