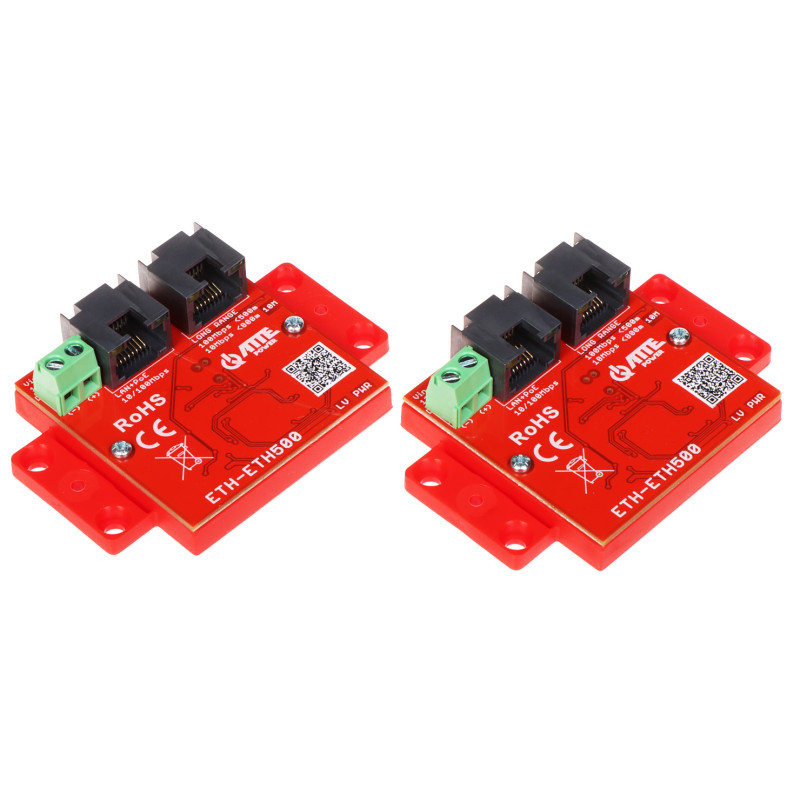

Ethernet PoE Extender Repeater LAN RJ45 800m Range 50W Data and Power Transmission Active CCTV Kit Twisted Pair

Model: ATTE ETH-ETH500-SET

EAN: 6931240040577 SKU: 931040579

• Increase Ethernet network and PoE power range up to 800 meters
• Kit consisting of two cooperating modules
• Ability to power directly from a PoE switch (802.3at/af)
• Alternative power supply via built-in screw terminals
• Transmission speed up to 100 Mbps at a distance of up to 500 meters
• Maximum total output power of the set up to 50W
• Built-in LED signaling for LAN, PoE power, and 10Mb connection status
• Cascading connection capability for extreme distances
• Very low power consumption of the device (only 1.35W)
• Compact dimensions allowing for installation in junction boxes and mounts

Description

ETH-ETH500-SET is a professional and innovative set of two devices designed as a high-performance LAN and PoE power extender (repeater). This device is the ideal solution for situations where the standard Ethernet transmission range, limited to 100 meters, proves insufficient for the needs of modern IP monitoring installations or extensive network systems. The main advantage of this model is its unique ability to transmit data and power over impressive distances reaching up to 800 meters, making it one of the most efficient solutions on the market.

Specification

The kit offers unprecedented installation flexibility. Thanks to the use of advanced electronics, the device can be powered directly from a PoE switch (802.3at/af standard or Passive PoE), which eliminates the need for additional power cables at the location of the extender itself and the end camera. This allows for a significant reduction in labor and installation material costs. The system supports 10/100 Mbps transmission speeds, with output power parameters intelligently correlated with distance: up to 250 meters we obtain 100 Mbps and 50W of power, up to 500 meters we maintain 100 Mbps at 25W, and at an extreme distance of 800 meters, the system offers a stable 10 Mbps and 15W of power.

The compact design of each element of the set ensures that the device easily fits into small spaces, such as junction boxes or camera bases. The ETH-ETH500-SET kit is also characterized by its cascading connection capability, which allows for the construction of very extensive network topologies in industrial facilities, warehouses, or open areas. The PoE output voltage is always equal to the input voltage, which ensures full compatibility with a wide range of network devices. This is a reliable solution for installers who value time, aesthetic finish, and transmission stability in difficult distance conditions.

LAN Ports

2 x RJ45 10/100 Base-T (per kit element) supporting Passive PoE

Optical signaling

LEDs indicating status: LAN (transmission), PoE (power), 10Mb (speed status)

UTP transmission range

Up to 800 meters when using appropriate speed and power parameters

Transmission speed

Automatic 10 / 100 Mbps negotiation on LAN & PoE ports

Current efficiency (250m)

Range up to 250 m: Speed 100 Mbps, Maximum output power 50 W

Current efficiency (500m)

Range up to 500 m: Speed 100 Mbps, Maximum output power 25 W

Current efficiency (800m)

Range up to 800 m: Speed 10 Mbps, Maximum output power 15 W

Maximum total power

Total set power limited to 50 W (depending on power source)

Software and control

The device operates based on an intelligent microcontroller managing the physical layer of data transmission and energy distribution. Algorithms implemented in the device logic allow for automatic detection of voltage drops over long cable sections and transmission optimization to maintain connection stability even at the threshold distance of 800m. The system supports transparent transmission of Ethernet packets, which makes it completely invisible to the network protocol layer, requires no IP configuration, and works in Plug & Play mode. The intelligent PoE monitoring system protects connected devices from overload by dynamically adjusting operating parameters to the current load and the quality of the transmission medium (twisted pair).

Selected features

Ability to power from a switch (PoE 802.3at/af, Passive PoE) and via screw terminals; Cascading connection capability; PoE output voltage equal to input voltage

Input power supply

44 - 58 V DC via Passive PoE or 12 - 58 V DC via screw terminals

Power consumption

Very low self-consumption at 1.35 W level guaranteeing high energy efficiency

Mechanical parameters

Weight: 0.05 kg; Dimensions of a single element: 73 x 52 x 20 mm; Modular type housing

Dimensions, Weight

Product dimensions: 20 x 73 x 52 mm (Depth x Width x Height)

Package dimensions: 55 x 125 x 85 mm (Depth x Width x Height)

Product weight: 50 g

Weight with packaging: 81 g
