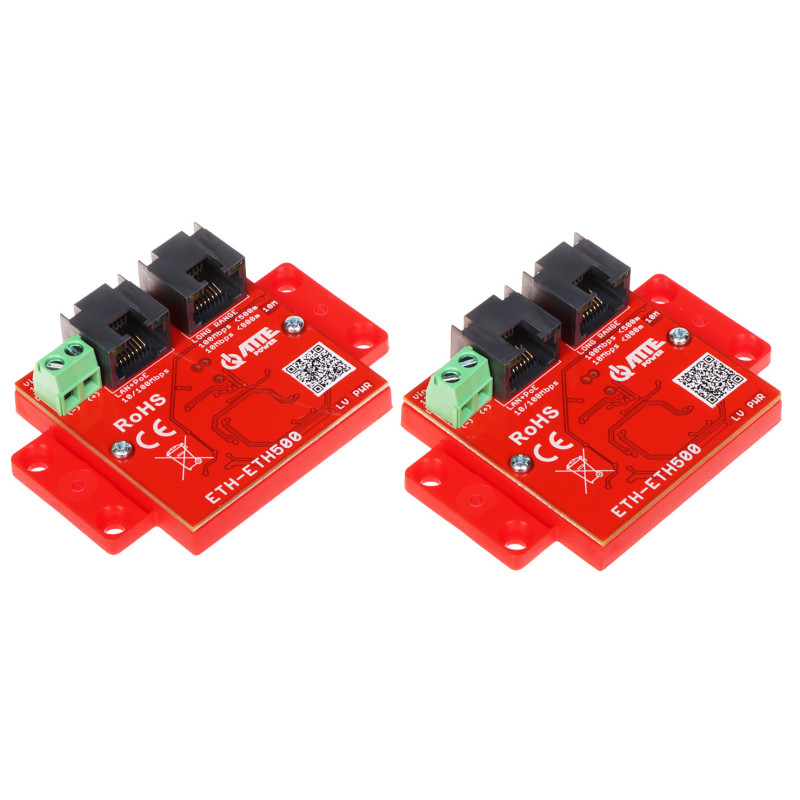

Ethernet PoE Extender Repeater LAN RJ45 800m 50W Data and Power Transmission Active CCTV Twisted Pair Kit

Model: ATTE ETH-ETH500-SET

EAN: 6931240040577 SKU: 931040579

• Increase the range of Ethernet network and PoE power supply up to 800 meters
• Kit consisting of two cooperating modules
• Ability to power directly from a PoE switch (802.3at/af)
• Alternative power supply via built-in screw terminals
• Transmission speed up to 100 Mbps at a distance of up to 500 meters
• Maximum output power of the set up to 50W
• Built-in LED indicators for LAN, PoE power, and 10Mb connection status
• Cascading connection possibility for extreme distances
• Very low self-power consumption of the device (only 1.35W)
• Compact dimensions allowing for mounting in junction boxes and brackets

Description

ETH-ETH500-SET is a professional and innovative set of two devices designed as an efficient LAN and PoE power extender (repeater). This device is the ideal solution in situations where the standard Ethernet transmission range, limited to 100 meters, proves insufficient for the needs of modern IP monitoring installations or extensive network systems. The main advantage of this model is its unique ability to transmit data and power over impressive distances reaching up to 800 meters, making it one of the most efficient solutions on the market.

Specification

2 x RJ45 10/100 Base-T (for each kit component) supporting Passive PoE

The kit offers unparalleled installation flexibility. Thanks to the use of advanced electronics, the device can be powered directly from a PoE switch (802.3at/af standard or Passive PoE), which eliminates the need to run additional power cables at the installation site of the extender itself and the end camera. This allows for a significant reduction in labor costs and installation materials. The system supports 10/100 Mbps transmission speeds, with output power parameters intelligently correlated with distance: up to 250 meters we get 100 Mbps and 50W of power, up to 500 meters we maintain 100 Mbps at 25W, and at an extreme distance of 800 meters, the system offers a stable 10 Mbps and 15W of power.

The compact design of each kit component makes the device easily fit into small spaces, such as junction boxes or camera bases. The ETH-ETH500-SET kit also features the ability to be cascaded, which allows for the construction of very extensive network topologies in industrial facilities, warehouses, or open areas. The PoE output voltage is always equal to the input voltage, which ensures full compatibility with a wide range of network devices. This is a reliable solution for installers who value time, aesthetic finish, and transmission stability in difficult distance conditions.

LEDs indicating the status: LAN (transmission), PoE (power), 10Mb (speed status)

LAN Ports

Up to 800 meters with appropriate speed and power parameters

Optical signaling

10/100 Mbps auto-negotiation on LAN & PoE ports

UTP transmission range

Range up to 250 m: Speed 100 Mbps, Maximum output power 50 W

Transmission speed

Range up to 500 m: Speed 100 Mbps, Maximum output power 25 W

Current efficiency (250m)

Range up to 800 m: Speed 10 Mbps, Maximum output power 15 W

Current efficiency (500m)

Total kit power limited to 50 W (depending on power source)

Current efficiency (800m)

The device operates based on an intelligent microcontroller managing the physical layer of data transmission and power distribution. The algorithms implemented in the device's logic allow for automatic detection of voltage drops on long cable segments and optimization of transmission to maintain connection stability even at the 800m limit. The system supports transparent Ethernet packet forwarding, making it completely invisible to network protocol layers, requiring no IP configuration and operating in Plug & Play mode. The intelligent PoE monitoring system protects connected devices from overload by dynamically adjusting operating parameters to the current load and quality of the transmission medium (twisted pair).

Maximum total power

Ability to power from a switch (PoE 802.3at/af, Passive PoE) and via screw terminals; Cascading connection possibility; PoE output voltage equal to input voltage

Software and control

44 - 58 V DC via Passive PoE or 12 - 58 V DC via screw connectors (terminals)

Selected features

Very low self-consumption at 1.35 W, guaranteeing high energy efficiency

Input power

Weight: 0.05 kg; Single component dimensions: 73 x 52 x 20 mm; Modular type housing

Power consumption

3 years (36 months) manufacturer warranty

Mechanical parameters

1x Set of two modules Extender ETH-ETH500-SET

1x User manual PL/EN

Warranty

Dimensions, Weight

Product dimensions: 20 x 73 x 52 mm (D x W x H)

Packaging dimensions: 55 x 125 x 85 mm (D x W x H)

Product weight: 50 g

Weight with packaging: 81 g
