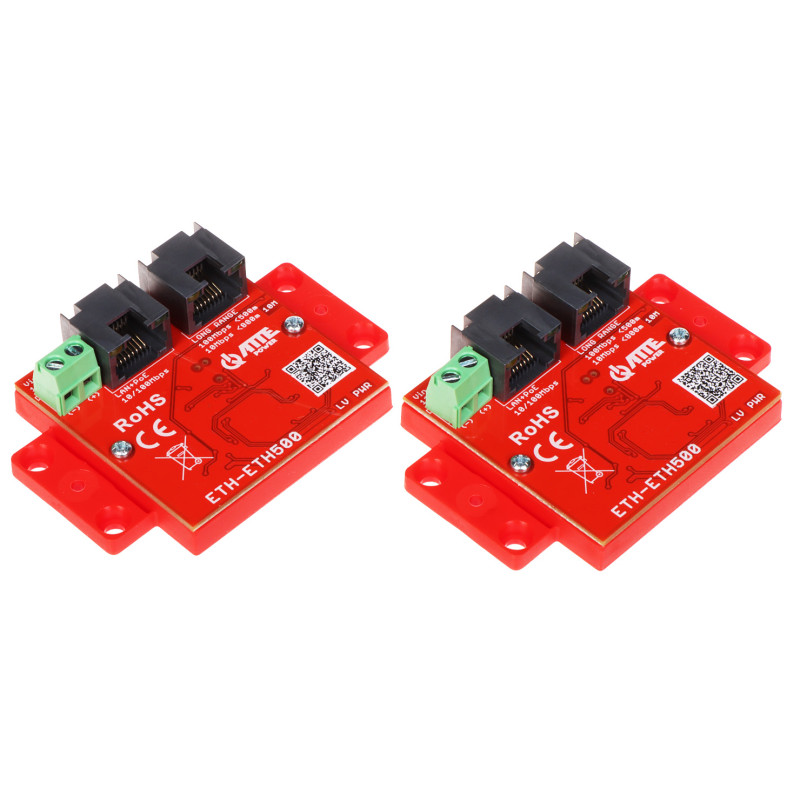

Ethernet PoE Extender Repeater LAN RJ45 800m Range 50W Data and Power Transmission Active CCTV Twisted Pair Kit ATTE ETH-ETH500-
zł 306,27
Tax included
ETH-ETH500-SET is a professional and innovative set of two devices designed as an efficient LAN and PoE extender (repeater). This device is the ideal solution in situations where the standard Ethernet transmission range, limited to 100 meters, proves insufficient for the needs of modern IP monitoring installations or extensive network systems. The main advantage of this model is its unique ability to transmit data and power over impressive distances reaching up to 800 meters, making it one of the most efficient solutions on the market.
The set offers unprecedented installation flexibility. Thanks to the use of advanced electronics, the device can be powered directly from a PoE switch (standard 802.3at/af or Passive PoE), which eliminates the need to run additional power cables at the installation site of the extender itself and the end camera. This allows for a significant reduction in labor and installation material costs. The system supports 10/100 Mbps transmission speeds, with output power parameters intelligently correlated with distance: up to 250 meters we get 100 Mbps and 50W of power, up to 500 meters we maintain 100 Mbps at 25W, and at an extreme distance of 800 meters, the system offers a stable 10 Mbps and 15W of power.
The compact design of each element of the set ensures that the device fits easily into small spaces, such as installation boxes or camera bases. The ETH-ETH500-SET kit also features daisy-chain capability, which allows for building very extensive network topologies in industrial facilities, warehouses, or open areas. The PoE output voltage is always equal to the input voltage, which ensures full compatibility with a wide range of network devices. This is a reliable solution for installers who value time, aesthetic finish, and transmission stability in difficult distance conditions.
Ethernet PoE Extender Repeater LAN RJ45 800m Range 50W Data and Power Transmission Active CCTV Twisted Pair Kit
Model: ATTE ETH-ETH500-SET
EAN: 6931240040577 SKU: 931040579
- Increase Ethernet network and PoE power range up to 800 meters
- Set consisting of two cooperating modules
- Ability to power directly from a PoE switch (802.3at/af)
- Alternative power supply via built-in screw terminals
- Transmission speed up to 100 Mbps at a distance of up to 500 meters
- Maximum output power of the set up to 50W
- Built-in LED indicators for LAN, PoE power, and 10Mb connection status
- Daisy-chain capability for extreme distances
- Very low power consumption of the device (only 1.35W)
- Compact dimensions allowing mounting in junction boxes and mounts
Description
ETH-ETH500-SET is a professional and innovative set of two devices designed as an efficient LAN and PoE extender (repeater). This device is the ideal solution in situations where the standard Ethernet transmission range, limited to 100 meters, proves insufficient for the needs of modern IP monitoring installations or extensive network systems. The main advantage of this model is its unique ability to transmit data and power over impressive distances reaching up to 800 meters, making it one of the most efficient solutions on the market.
The set offers unprecedented installation flexibility. Thanks to the use of advanced electronics, the device can be powered directly from a PoE switch (standard 802.3at/af or Passive PoE), which eliminates the need to run additional power cables at the installation site of the extender itself and the end camera. This allows for a significant reduction in labor and installation material costs. The system supports 10/100 Mbps transmission speeds, with output power parameters intelligently correlated with distance: up to 250 meters we get 100 Mbps and 50W of power, up to 500 meters we maintain 100 Mbps at 25W, and at an extreme distance of 800 meters, the system offers a stable 10 Mbps and 15W of power.
The compact design of each element of the set ensures that the device fits easily into small spaces, such as installation boxes or camera bases. The ETH-ETH500-SET kit also features daisy-chain capability, which allows for building very extensive network topologies in industrial facilities, warehouses, or open areas. The PoE output voltage is always equal to the input voltage, which ensures full compatibility with a wide range of network devices. This is a reliable solution for installers who value time, aesthetic finish, and transmission stability in difficult distance conditions.
Specification
LAN Ports
2x RJ45 10/100 Base-T (per kit element) supporting Passive PoE
Optical signaling
LEDs indicating status: LAN (transmission), PoE (power), 10Mb (speed status)
UTP transmission range
Up to 800 meters with appropriate speed and power parameters
Transmission speed
Automatic 10/100 Mbps negotiation on LAN & PoE ports
Current efficiency (250m)
Range up to 250 m: Speed 100 Mbps, Maximum output power 50 W
Current efficiency (500m)
Range up to 500 m: Speed 100 Mbps, Maximum output power 25 W
Current efficiency (800m)
Range up to 800 m: Speed 10 Mbps, Maximum output power 15 W
Maximum total power
Total set power limited to 50 W (depending on power source)
Software and control
The device operates based on an intelligent microcontroller managing the physical data transmission layer and power distribution. Algorithms implemented in the device logic allow for automatic detection of voltage drops over long cable sections and transmission optimization to maintain connection stability even at extreme 800m distances. The system supports transparent Ethernet packet forwarding, making it completely invisible to network protocol layers, requiring no IP configuration and operating in Plug & Play mode. An intelligent PoE monitoring system protects connected devices from overload by dynamically adjusting operating parameters to the current load and quality of the transmission medium (twisted pair).
Selected features
Ability to power from a switch (PoE 802.3at/af, Passive PoE) and via screw terminals; Daisy-chain capability; PoE output voltage equal to input voltage
Input power
44 - 58 V DC via Passive PoE or 12 - 58 V DC via screw terminals
Power consumption
Very low self-consumption at 1.35 W ensuring high energy efficiency
Mechanical parameters
Weight: 0.05 kg; Dimensions of a single element: 73 x 52 x 20 mm; Modular enclosure
Warranty
3 years (36 months) manufacturer warranty
Contents
1x Set of two ETH-ETH500-SET extender modules
1x User manual PL/ENDimensions, Weight
Product dimensions: 20 x 73 x 52 mm (Depth x Width x Height)
Packaging dimensions: 55 x 125 x 85 mm (Depth x Width x Height)
Product weight: 50 g
Weight with packaging: 81 g
