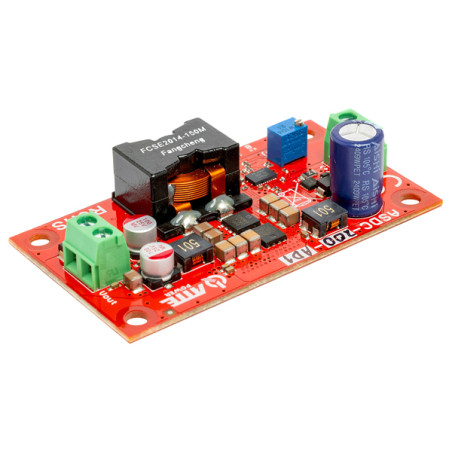

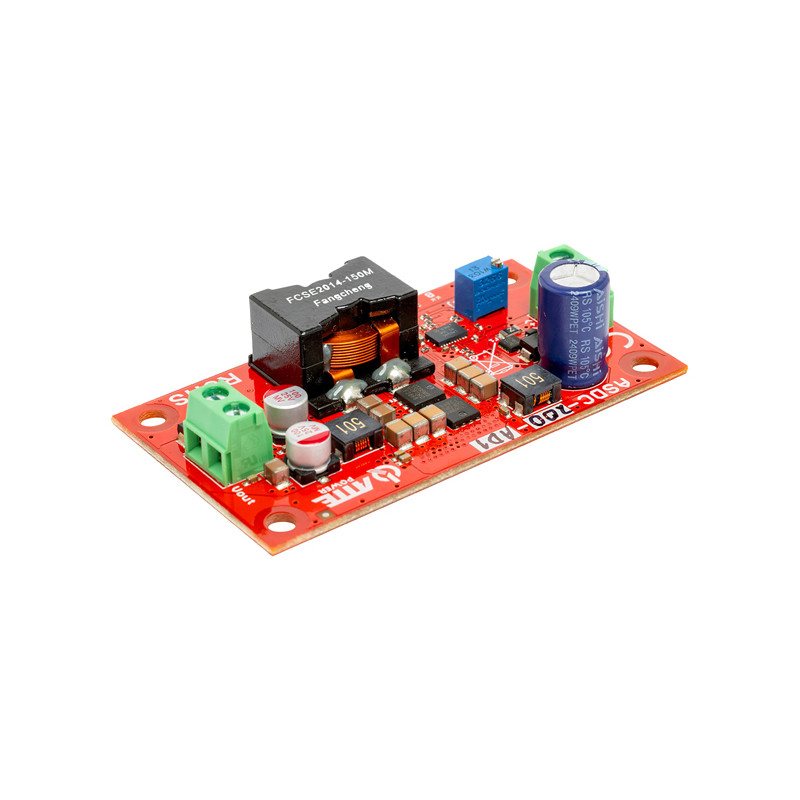

DC/DC Step-Down Voltage Converter Module 200W 8A 16-56V to 5-24V Adjustable Switching Power Supply ATTE ASDC-200-AD1-OF
zł178.47
Tax included
The ASDC-200-AD1-OF converter module is a high-performance DC/DC step-down device designed for professional power supply systems in low-voltage installations. The main task of this module is to precisely step down the input voltage from a wide range of 16V to 56V DC to a stabilized output voltage, which the user can smoothly adjust between 5V and 24V DC. Thanks to an impressive output power of up to 200W and a maximum current of up to 8A, this product is widely used in demanding CCTV surveillance installations, alarm systems, and modern building automation.
A key advantage of the device is its compact Open Frame design, which allows for easy integration inside larger system enclosures or installation boxes. The converter is characterized by very high energy efficiency, which directly translates into minimizing heat loss and increasing the overall reliability of the entire power supply system. Operational safety is guaranteed by a comprehensive set of built-in protections: short-circuit, overvoltage, overload, and thermal. They effectively protect both the module itself and all connected receivers from the effects of network failures or installation errors.
Please note that due to the switching nature of the device's operation, the output voltage must always be at least 3V lower than the input voltage. The product is made of the highest quality electronic components, which is confirmed by the manufacturer's 3-year warranty. It is an ideal solution wherever it is necessary to power devices with a lower nominal voltage from a bus with a higher potential, while ensuring full stability of current parameters even at maximum operating load.
DC/DC Step-Down Voltage Converter Module 200W 8A 16-56V to 5-24V Adjustable Switching Power Supply
Model: ATTE ASDC-200-AD1-OF
EAN: 6931240012703 SKU: 931012706
- Wide input voltage range from 16V to 56V DC
- Smooth output voltage adjustment in the range of 5V - 24V DC
- High output power up to 200W (at 24V)
- Maximum output current of up to 8A
- Compact Open Frame design for installation
- Complete protection system: short-circuit, thermal, overload
- High energy efficiency of the switching circuit
- Product from Polish manufacturer ATTE with a 3-year warranty
Description
The ASDC-200-AD1-OF converter module is a high-performance DC/DC step-down device designed for professional power supply systems in low-voltage installations. The main task of this module is to precisely step down the input voltage from a wide range of 16V to 56V DC to a stabilized output voltage, which the user can smoothly adjust between 5V and 24V DC. Thanks to an impressive output power of up to 200W and a maximum current of up to 8A, this product is widely used in demanding CCTV surveillance installations, alarm systems, and modern building automation.
A key advantage of the device is its compact Open Frame design, which allows for easy integration inside larger system enclosures or installation boxes. The converter is characterized by very high energy efficiency, which directly translates into minimizing heat loss and increasing the overall reliability of the entire power supply system. Operational safety is guaranteed by a comprehensive set of built-in protections: short-circuit, overvoltage, overload, and thermal. They effectively protect both the module itself and all connected receivers from the effects of network failures or installation errors.
Please note that due to the switching nature of the device's operation, the output voltage must always be at least 3V lower than the input voltage. The product is made of the highest quality electronic components, which is confirmed by the manufacturer's 3-year warranty. It is an ideal solution wherever it is necessary to power devices with a lower nominal voltage from a bus with a higher potential, while ensuring full stability of current parameters even at maximum operating load.
Specification
Device type
Step-Down DC/DC Voltage Converter
Number of inputs / outputs
1 input / 1 output
Supply voltage (input)
16V ... 56V DC
Output voltage
5V ... 24V DC (adjustable via potentiometer)
Output current
Maximum 8A
Output power
Maximum 200W at 24V
Minimum voltage difference
3V (difference between input and output)
Short-circuit protection
Yes - electronic protection protecting the module
Overload protection
Yes - protection against current draw above the permissible standard
Overvoltage protection
Yes - protection against sudden voltage spikes
Thermal protection
Yes - automatic shutdown after exceeding safe temperature
Construction
Open Frame module for mounting in enclosures
Voltage regulation
Built-in multi-turn potentiometer for precise setting
Software and control
The device is based on an advanced analog-digital PWM (Pulse Width Modulation) controller that continuously monitors operating parameters. Although the module does not have an external software interface, its internal control logic ensures an extremely fast response to dynamic load changes (transient response). The control circuit optimizes the transistor switch duty cycle, which allows for maintaining a stable output voltage with minimal ripple, which is crucial for sensitive electronics such as IP cameras or microprocessor systems. The system intelligently manages power distribution, ensuring that processing efficiency remains at the highest level across the entire load range.
Warranty
3 years
Contents
1x ASDC-200-AD1-OF converter module
Dimensions, Weight
Product dimensions: 20 x 74 x 42 mm (D x W x H)
Package dimensions: 35 x 90 x 55 mm (D x W x H)
Product weight: 37 g
Weight with packaging: 62 g
