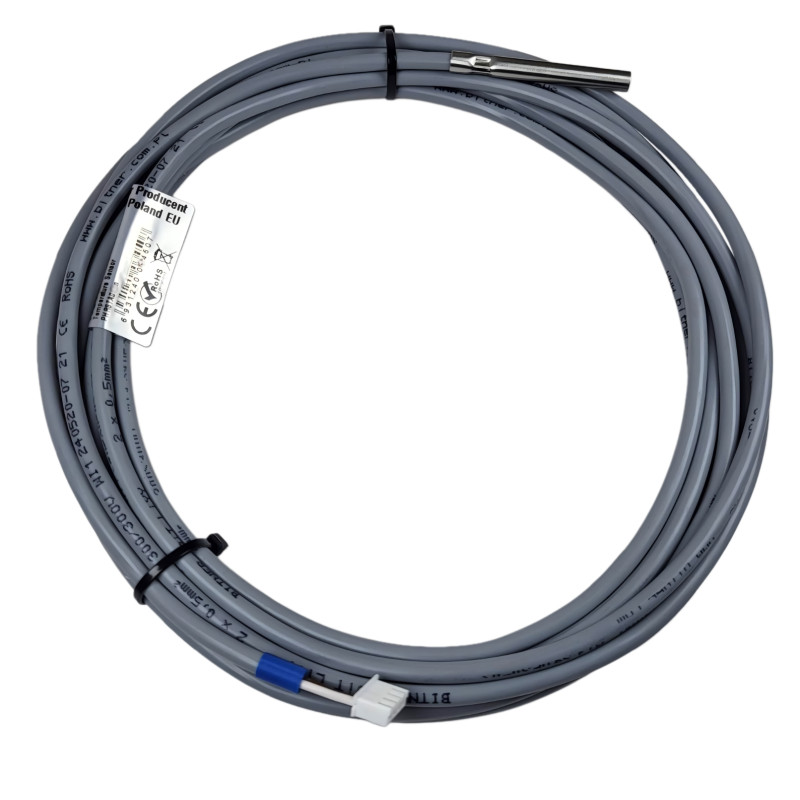

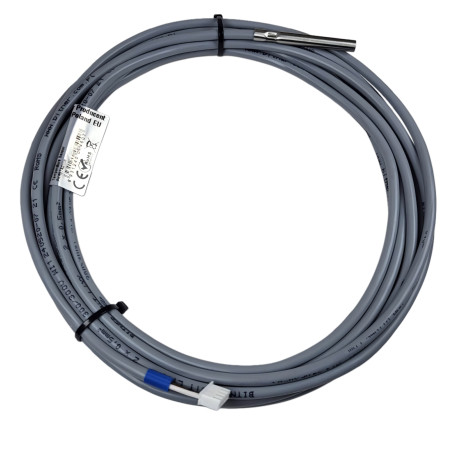

DHW Domestic Hot Water Temperature Sensor for LG THERMA V Heat Pump 12m

Model: ACTii AC3412

EAN: 6931240034125 SKU: 341217851

• High-quality precision temperature sensor
• Uses a specialized copper flexible control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃, compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a sleeve with a diameter of 6mm and length of 50mm, made of stainless steel
• Each sensor is tested at 3 different temperatures to ensure measurement compliance with the reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of tightness is a frequent problem with temperature sensors, resulting in their damage by moisture.
• Our temperature sensors are characterized by higher quality. Unlike the competition, we use only 100% copper thick certified control cable produced in the EU in thick and flexible insulation. We use sensors from branded companies. Each sensor is checked by us for measurement compliance with the reference sensor.
• Sensor finished with a connector matching the socket on the main board of the heat pump. Connecting the sensor requires only plugging the sensor into the appropriate place on the main board.

Description

Domestic Hot Water (DHW) temperature sensor designed for LG THERMA V heat pumps

Sensor intended for all LG heat pumps where the acceptable sensor is labeled: PHRSTA0 (the DHW sensor model intended for a given heat pump is listed in the user manual in the accessories tab)

Example heat pump models compatible with the DHW temperature sensor:

Sensor cable length: 12m

Lack of tightness is a frequent problem with temperature sensors, resulting in their damage by moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with PHRSTA0

Intended use: LG THERMA V Heat Pumps

Sensor measurement range: from -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with a diameter: 6mm and length: 50mm, made of stainless steel

Cable termination: 4-pin plug fitting the socket on the main board of the heat pump with designation: CN_TH4 (DHW sensor input)

Cable length: 12m (472 inches)

Cable Parameters

Cable parameters:

Cable type: Control / signal cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V , ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃ , Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. installation temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals / Admissions: CPR - Certificates / DoP

Cable construction:

Core material: Copper cores

Working core structure: Cl.5 (according to EN 60228, IEC 60228)

Core structure: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and for mobile devices. They are suitable for operation in indoor installations, in dry and damp rooms.

Other Information

Temperature sensors with different cable lengths are available in our offer

Set contents

Temperature sensor with 12m cable

Certificates and standards

CE, RoHS

Compatibility list:

HM051M U43, HM071M U43, HM091M U43, HM121M U33, HM141M U33, HM161M U33, HM123M U33, HM143M U33, HM163M U33, HM051MR U44, HM071MR U44, HM091MR U44, HM093MR U44, HM071MRS UA40, HM091MRS UA40, HM123MRS UB40, HM163MRS UB40, HM121MR U34, HM141MR U34, HM161MR U34, HM123MR U34, HM143MR U34, HM163MR U34, HM093HFX UB60, HM121HF UB60, HM123HF UB60, HM141HF UB60, HM143HF UB60, HM161HF UB60, HM163HF UB60, HN091MR NK5, HN1600MC NK1, HN0916M NK3, HN1616M NK3, HN1636M NK3, HN1639HC NK0, KPHTC411M, KPHTC481M, KPHTC551M, HU121MRB U30, HU141MRB U30, HU161MRB U30, HU123MRB U30, HU143MRB U30, HU163MRB U30, HN1616Y NB1, HN1616M NK5, HN1636M NK5, HN1616HC NK0, HN1616HY NK0, HN1636HY NK0, HU041MR U20, HU061MR U20, HU051MR U44, HU071MR U44, HU091MR U44, HN0613M NK5, HN0613T NK0, HN0913T NK0, HU121MA U33, HU141MA U33, HU161MA U33, HU123MA U33, HU143MA U33, HU163MA U33, PHCS0 and others from the LG THERMA V series

Dimensions, Weight

Product dimensions: 30 x 150 x 150 mm (D x W x H)

Package dimensions: 100 x 200 x 50 mm (D x W x H)

Product weight: 450 g

Weight with packaging: 480 g
