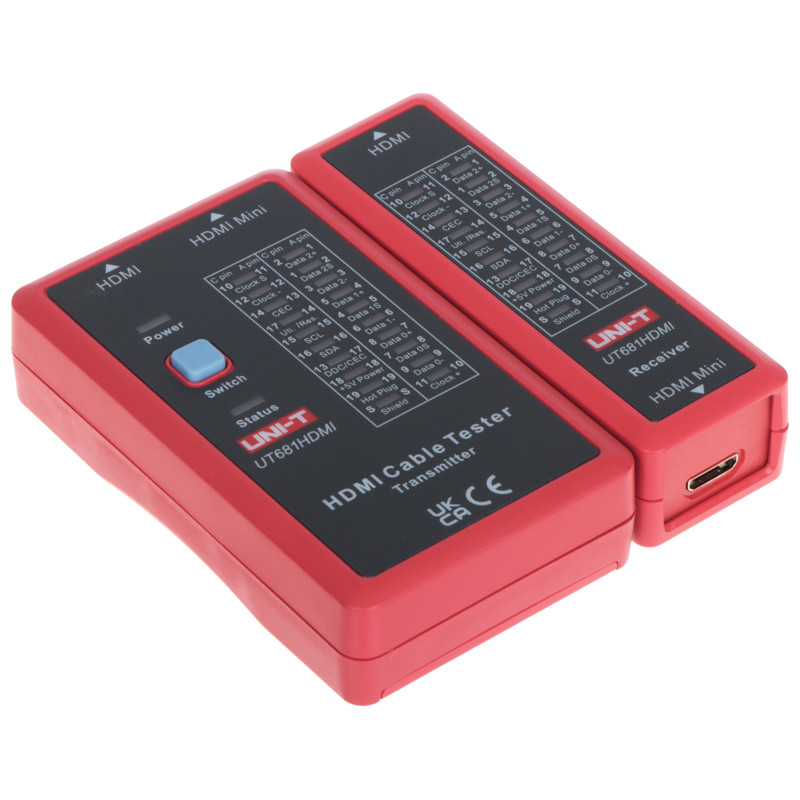

HDMI and mini HDMI cable tester wire continuity diagnostic fault locator UNI-T UT-681-HDMI
156,59 zł
Tax included
The UT-681-HDMI cable tester is a professional and reliable diagnostic tool designed for audio-video system installers, IT technicians, and demanding home users. The device allows for instant and extremely precise verification of HDMI and mini HDMI cable functionality, which is a key element when diagnosing high-resolution digital signal transmission issues.
Thanks to its innovative two-piece design consisting of a main unit and a detachable terminator (remote), the tester enables verification of cables that have already been installed in walls, cable trays, or conduits. Simply plug the main unit into one end of the cable and connect the remote to the other end to get a full picture of the installation's technical status in seconds. The device effectively detects common faults such as short circuits between individual wires, open circuits (lack of continuity), and incorrect wiring of signal pairs.
The tester's housing is made of high-quality, durable plastic, ensuring resistance to mechanical damage and longevity even during intensive use in harsh construction environments. The device is equipped with an intelligent power management system that automatically turns off the tester after 10 minutes of inactivity, significantly extending the life of the 9V battery. An additional advantage is the built-in low battery alarm, which informs the user when the cell needs to be replaced, eliminating the risk of erroneous measurements. A clear LED panel allows for intuitive interpretation of results, and the ability to choose between single and full scan modes provides full control over the testing process.
HDMI and mini HDMI cable tester wire continuity diagnostic fault locator
Model: UNI-T UT-681-HDMI
EAN: 6931240090640 SKU: 931090646
- Testing of HDMI and mini HDMI cables
- Detection of short circuits and open circuits
- Two-piece design (main unit + remote)
- Single and full scan modes
- Automatic power-off function after 10 minutes
- Low battery indicator
- Durable plastic housing
- Powered by a standard 9V battery (included)
Description
The UT-681-HDMI cable tester is a professional and reliable diagnostic tool designed for audio-video system installers, IT technicians, and demanding home users. The device allows for instant and extremely precise verification of HDMI and mini HDMI cable functionality, which is a key element when diagnosing high-resolution digital signal transmission issues.
Thanks to its innovative two-piece design consisting of a main unit and a detachable terminator (remote), the tester enables verification of cables that have already been installed in walls, cable trays, or conduits. Simply plug the main unit into one end of the cable and connect the remote to the other end to get a full picture of the installation's technical status in seconds. The device effectively detects common faults such as short circuits between individual wires, open circuits (lack of continuity), and incorrect wiring of signal pairs.
The tester's housing is made of high-quality, durable plastic, ensuring resistance to mechanical damage and longevity even during intensive use in harsh construction environments. The device is equipped with an intelligent power management system that automatically turns off the tester after 10 minutes of inactivity, significantly extending the life of the 9V battery. An additional advantage is the built-in low battery alarm, which informs the user when the cell needs to be replaced, eliminating the risk of erroneous measurements. A clear LED panel allows for intuitive interpretation of results, and the ability to choose between single and full scan modes provides full control over the testing process.
Specification
Purpose
Advanced diagnostics and verification of galvanic connection integrity in standard HDMI multimedia cables.
Supported connector standards
Full-size HDMI connector (Type A) and mini-HDMI connector (Type C) used in mobile devices and cameras.
Types of detected faults
Precise detection of short circuits, open circuits, and crossed wires.
Operating modes
Single scan mode (step-by-step) for detailed analysis of each wire individually and full scan mode (automatic) for a quick test of the entire cable.
Status signaling
Intuitive LED system placed on both parts of the device, allowing for simultaneous viewing of results at the beginning and end of the cable.
Power supply
9V battery, type 6F22 / 1604S. The battery is included in the factory set, allowing for immediate start of work.
Power management
Auto Power Off function automatically cuts off power after 10 minutes of inactivity, protecting the battery from unnecessary discharge.
Warning system
Built-in Low Battery Alarm signaled by an LED, preventing measurements from being performed with insufficient power.
Construction and materials
Housing made of high-impact ABS plastic, ergonomically designed for a secure grip in the hands.
Measurement method
Electrical continuity testing of all 19 signal wires and the shield (ground) of the HDMI cable.
Application
Essential in home cinema installations, professional AV systems, CCTV video monitoring, server rooms, and RTV equipment services.
Certification and safety
The device is CE certified, meeting European safety and electromagnetic compatibility standards.
Environmental conditions
Operating temperature from -10°C to +50°C, permissible air humidity up to 90% (non-condensing).
Warranty
Full manufacturer warranty for a period of 24 months (2 years) from the date of purchase.
Contents
1x UT-681-HDMI main tester unit
1x Terminator (remote)
1x 9V 6F22 battery
1x User manual in English
1x Original cardboard packaging
Dimensions, Weight
Product dimensions: 29 x 103 x 96 mm (D x W x H)
Packaging dimensions: 45 x 130 x 105 mm (D x W x H)
Product weight: 132 g
Weight with packaging: 208 g
