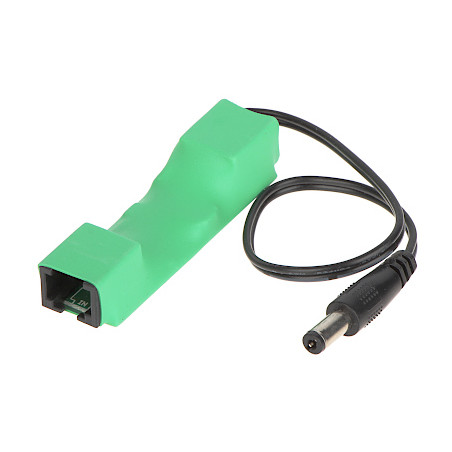

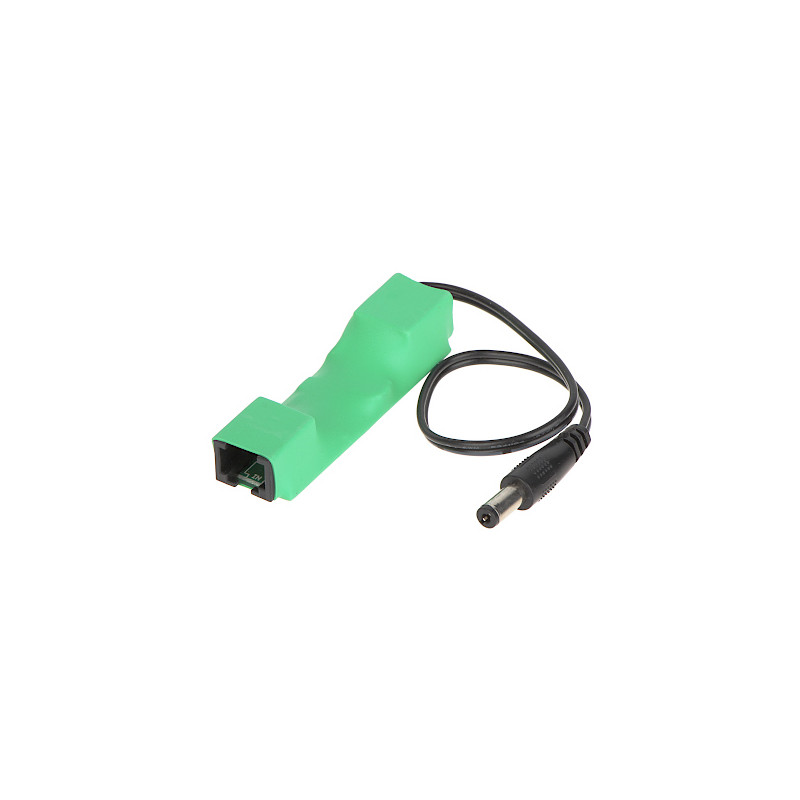

PoE power adapter stepping down voltage from 48V to 5V DC 2.1/5.5mm plug stabilizer for IP cameras and LAN networks ATTE ASDC-05
zł145.71
Tax included
The ASDC-05-050-HS PoE adapter is an advanced technical solution designed for professional IP monitoring systems and network installations. The main task of this compact device is to draw power directly from a twisted-pair cable operating in the PoE (Power over Ethernet) standard and convert the high input voltage (typically 48V) into a stable 5V DC voltage. This allows for powering a wide range of devices, such as IP cameras, routers, switches, or access points, which do not natively support PoE technology and require 5V power via a standard 2.1/5.5 mm barrel plug.
The use of the ASDC-05-050-HS adapter brings a number of measurable benefits. First and foremost, it eliminates the need to run additional power cables to each device individually, which significantly reduces material costs and the time required for installation. The device is characterized by very high energy efficiency, which minimizes heat loss and ensures stable operation of the connected equipment even in difficult conditions. The adapter is fully compatible with popular power standards such as IEEE 802.3af, IEEE 802.3at, and Passive PoE systems, making it an extremely versatile tool for installers.
Another significant advantage is its miniature design. Small dimensions allow for trouble-free installation inside junction boxes, wall mounts for cameras, or in tight spaces of suspended ceilings. The housing made of high-quality green plastic provides adequate mechanical protection, and the built-in LED allows for instant verification of voltage presence at the output, which facilitates system diagnostics. It is a reliable link in modern telecommunications infrastructure, ensuring the continuity of network device operation.
PoE power adapter stepping down voltage from 48V to 5V DC 2.1/5.5mm plug stabilizer for IP cameras and LAN networks
Model: ATTE ASDC-05-050-HS
EAN: 6931240092156 SKU: 931092150
- Power supply directly from 48V PoE line
- Voltage step-down to a stable 5V DC level
- Standard 2.1/5.5 mm output plug on a cable
- Full compatibility with IEEE 802.3af and IEEE 802.3at
- Support for Passive PoE power systems
- Compact housing made of durable plastic
- Built-in LED indicating voltage presence
- Wide operating temperature range from -25°C to +50°C
- Easy installation in camera junction boxes and mounts
- High energy efficiency of the circuit
Description
The ASDC-05-050-HS PoE adapter is an advanced technical solution designed for professional IP monitoring systems and network installations. The main task of this compact device is to draw power directly from a twisted-pair cable operating in the PoE (Power over Ethernet) standard and convert the high input voltage (typically 48V) into a stable 5V DC voltage. This allows for powering a wide range of devices, such as IP cameras, routers, switches, or access points, which do not natively support PoE technology and require 5V power via a standard 2.1/5.5 mm barrel plug.
The use of the ASDC-05-050-HS adapter brings a number of measurable benefits. First and foremost, it eliminates the need to run additional power cables to each device individually, which significantly reduces material costs and the time required for installation. The device is characterized by very high energy efficiency, which minimizes heat loss and ensures stable operation of the connected equipment even in difficult conditions. The adapter is fully compatible with popular power standards such as IEEE 802.3af, IEEE 802.3at, and Passive PoE systems, making it an extremely versatile tool for installers.
Another significant advantage is its miniature design. Small dimensions allow for trouble-free installation inside junction boxes, wall mounts for cameras, or in tight spaces of suspended ceilings. The housing made of high-quality green plastic provides adequate mechanical protection, and the built-in LED allows for instant verification of voltage presence at the output, which facilitates system diagnostics. It is a reliable link in modern telecommunications infrastructure, ensuring the continuity of network device operation.
Specification
Device type
The ASDC-05-050-HS is a high-efficiency, non-isolated DC/DC power adapter acting as a buck converter. It has been specifically designed for operation in Ethernet network environments, enabling the transmission of data and power via a single UTP/FTP cable, followed by their separation directly at the end device.
Output power
The maximum useful power is 5 W, which allows for stable powering of most standard miniature cameras, communication modules, and other low-power receivers.
Number of inputs
1 RJ-45 port intended for connecting a network cable (twisted pair) with a PoE power source (switch or injector).
Input voltage
Wide range from 35 V to 56 V DC, which ensures full compatibility with standard 48V PoE switches and high-voltage injectors.
Output voltage
Stabilized 5 V DC output on a flexible cable terminated with a standard 2.1/5.5 mm plug.
Output current
The maximum current is 1 A, which is sufficient for most network devices powered by 5V.
Optical signaling
Built-in LED indicating the presence of output voltage, which significantly facilitates the installation process and subsequent service diagnostics.
Ingress protection class
IP20 - the device is intended for indoor use or for installation in sealed outdoor enclosures and junction boxes.
Housing material
Durable plastic resistant to typical mechanical damage and environmental factors inside buildings.
Color scheme
Characteristic green housing color, typical for professional ATTE power modules, facilitating identification in telecommunications cabinets.
Operating temperature
Very wide temperature range from -25 °C to +50 °C, enabling reliable operation in unheated halls, warehouses, and inside outdoor enclosures.
Protections
The device has built-in circuits protecting against the effects of improper connection and stabilizing output parameters regardless of voltage fluctuations on the PoE line.
Connectors and interfaces
Input: RJ-45 socket (Data + PoE); Output: RJ-45 socket (Data - no PoE power on output); Power output: 2.1/5.5 mm DC plug on cable.
Application and compatibility
The adapter is widely used in professional CCTV systems where there is a need to connect older types of IP cameras or budget models that do not have a built-in PoE module. It is also indispensable for powering digital intercoms, access controllers, proximity card readers, and various types of sensors and building automation actuators that require a stable 5V DC voltage. Thanks to support for 802.3af and 802.3at standards, the adapter can work with almost any modern managed and unmanaged switch available on the market.
Contents
1x PoE power adapter ASDC-05-050-HS ATTE
1x User manual in Polish
1x CE declaration of conformity
Dimensions, Weight
Product dimensions: 75 x 21 x 17 mm (D x W x H)
Package dimensions: 90 x 55 x 30 mm (D x W x H)
Product weight: 20 g
Weight with packaging: 32 g
