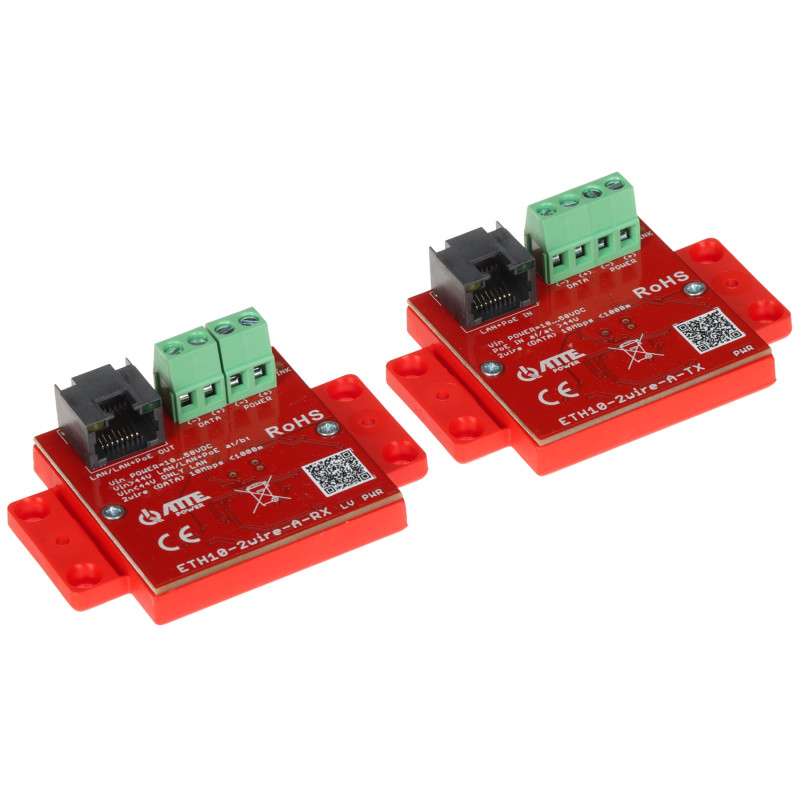

UTP to 2-Wire Converter Set LAN and PoE Transmission 1000m Range Plug and Play IP CCTV Adapter ATTE ETH10-2WIRE-A-SET
zł459.32
Tax included
The ETH10-2WIRE-A-SET is a professional solution dedicated to transmitting Ethernet data and PoE power using any pair of wires, such as twisted pair, telephone cable, or OMY cable. This product is absolutely indispensable in situations where upgrading a surveillance system from analog to a modern IP system faces difficulties related to cabling infrastructure.
Thanks to innovative 2-wire technology, the user can avoid costly and time-consuming cable replacement by utilizing existing two-wire installations. The main advantage of the set is an impressive transmission range of up to 1000 meters with a stable throughput of 10 Mbps, which is fully sufficient for the smooth operation of most high-resolution IP cameras. The devices operate in Plug & Play mode, meaning they require no complex configuration – simply connect the wires and the system will automatically establish a connection.
Compact module dimensions allow for extremely easy mounting in camera bases, small installation boxes, or telecommunications cabinets. The set provides full support for PoE 802.3af and 802.3at power standards, allowing direct power supply for receivers up to 30W. Additionally, built-in surge and overload protection guarantee the safety of connected equipment and the longevity of the entire installation. It is an ideal choice for installers looking for reliable, proven, and cost-effective transmission solutions in difficult site conditions.
UTP to 2-Wire Converter Set LAN and PoE Transmission 1000m Range Plug and Play IP CCTV Adapter
Model: ATTE ETH10-2WIRE-A-SET
EAN: 6931240042441 SKU: 931042449
- Enables LAN + PoE transmission over just 2 wires
- Extremely long transmission range up to 1000 meters
- Full support for PoE 802.3af and 802.3at standards (up to 30W)
- Plug & Play operation - no configuration required
- Very low self-power consumption of the set (only 0.7W)
- Integrated surge and overload protection
- Compact housing suitable for camera bases
- Clear optical status indication (LED)
- Support for IP cameras and all network devices
Description
The ETH10-2WIRE-A-SET is a professional solution dedicated to transmitting Ethernet data and PoE power using any pair of wires, such as twisted pair, telephone cable, or OMY cable. This product is absolutely indispensable in situations where upgrading a surveillance system from analog to a modern IP system faces difficulties related to cabling infrastructure.
Thanks to innovative 2-wire technology, the user can avoid costly and time-consuming cable replacement by utilizing existing two-wire installations. The main advantage of the set is an impressive transmission range of up to 1000 meters with a stable throughput of 10 Mbps, which is fully sufficient for the smooth operation of most high-resolution IP cameras. The devices operate in Plug & Play mode, meaning they require no complex configuration – simply connect the wires and the system will automatically establish a connection.
Compact module dimensions allow for extremely easy mounting in camera bases, small installation boxes, or telecommunications cabinets. The set provides full support for PoE 802.3af and 802.3at power standards, allowing direct power supply for receivers up to 30W. Additionally, built-in surge and overload protection guarantee the safety of connected equipment and the longevity of the entire installation. It is an ideal choice for installers looking for reliable, proven, and cost-effective transmission solutions in difficult site conditions.
Specification
Physical connectors
Each converter has 1x RJ45 port (Ethernet) and 1x screw terminal block (2-wire) for easy cable mounting.
LAN network interface
1x 10 Mbps RJ45 port; full-duplex support.
Range and speed
Data and power transmission range up to 1000 meters using a 2-wire line while maintaining a speed of 10 Mbps.
TX transmitter specification
ETH10-2WIRE-A-TX: PoE input - Passive PoE ≤ 30W, PoE (802.3at) ≤ 30W, PoE (802.3af) ≤ 15W. Supported pins: 1,2; 3,6 or 4,5; 7,8. Features 2-wire DATA connector.
RX receiver specification
ETH10-2WIRE-A-RX: PoE output - PoE (802.3af/at/bt). Output pins: - (1,2), + (3,6), + (4,5), - (7,8). Output voltage matches input voltage.
LED optical indication
LEDs indicating power status, 2-wire line link, LAN network activity, and warning of excessively low input voltage.
Technical protection
Surge protection on LAN and DATA ports. Reverse power supply protection and 0.6A overload protection in the TX transmitter.
Power parameters
TX: 24-56V DC (PoE) or 10-56V DC (Power). RX: 10-56V DC (Power). Total power consumption of both devices is only 0.7W.
Construction and material
Housing made of durable plastic (Polycarbonate - PC). IP20 protection class, intended for indoor installation or in external enclosures.
Operating conditions
Wide operating temperature range from -25°C to +65°C allows for use in harsh climatic conditions.
Dimensions and weight
A single module has dimensions of 51 x 51 x 23 mm. Net weight of a single unit is 30 grams.
Warranty and quality
The product is covered by a 3-year manufacturer warranty from ATTE, confirming high build quality.
Device logic
ETH10-2WIRE-A-SET converters use advanced algorithms for automatic connection parameter negotiation and an intelligent PoE power management system. The device logic allows for maintenance-free detection of the power type and optimization of data transmission depending on the quality and length of the two-wire line. The system monitors input voltage and signals if parameters are too low via an LED, preventing damage to connected IP cameras. The device does not require manual configuration, eliminating human error during installation. The converter logic ensures full transparency for network protocols, making it compatible with every IP camera available on the market.
Selected technical features
Plug & Play technology enables immediate startup without software settings. Supports high-resolution video signal transmission and PTZ control. Voltage stabilization and noise filters ensure a clean signal over long distances.
Contents
1x ETH10-2WIRE-A-TX transmitter
1x ETH10-2WIRE-A-RX receiver
Dimensions, Weight
Product dimensions: 23 x 51 x 51 mm (D x W x H)
Packaging dimensions: 55 x 125 x 85 mm (D x W x H)
Product weight: 60 g
Weight with packaging: 88 g
