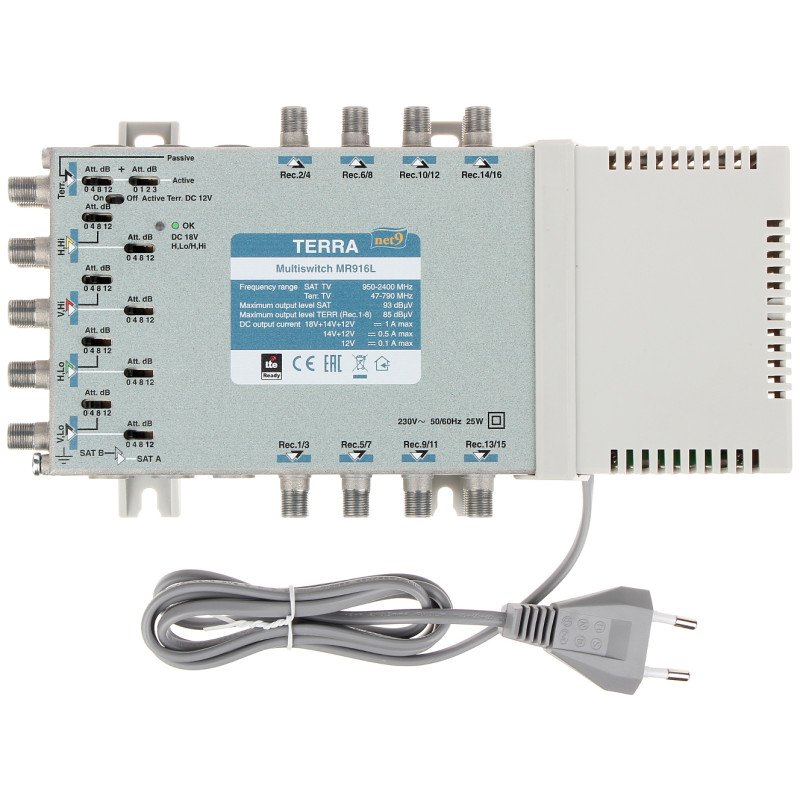

9-input 16-output multiswitch active LTE filter DiSEqC 2.0 SAT DVB-T radial professional installation TERRA MR-916L
zł1,604.82
Tax included
The TERRA MR-916L radial multiswitch is a professional device designed for modern collective terrestrial and satellite television installations. It is an ideal solution for small and medium-sized systems covering from a few to several dozen subscriber outlets, performing perfectly in single-family homes, residences, and smaller multi-family buildings. The device has 9 inputs (8 for satellite signals from two Quatro LNBs and 1 for DVB-T/T2 terrestrial television) and allows signal distribution to 16 independent users.
The main advantage of the MR-916L model is the built-in cable characteristic pre-correction, which compensates for coaxial cable attenuation as frequency increases, ensuring a balanced signal level for every user. Additionally, the multiswitch is equipped with an active terrestrial television path with a built-in LTE filter, which effectively eliminates interference from 4G mobile network transmitters. The robust housing and integrated 230V power supply ensure stable operation and easy installation. The device supports the DiSEqC 2.0 protocol, enabling smooth switching between satellites. By choosing TERRA brand products, you are investing in the highest build quality, reliability, and long-term durability of the antenna installation. Thanks to input and output isolation above 30dB, signals do not overlap, resulting in crystal-clear picture and sound. The device is characterized by low power consumption and high resistance to external factors inside buildings.
9-input 16-output multiswitch active LTE filter DiSEqC 2.0 SAT DVB-T radial professional installation
Model: TERRA MR-916L
EAN: 6931240018613 SKU: 931018615
- Support for two satellite positions (8 SAT inputs)
- Active terrestrial television path with LTE filter
- Built-in cable characteristic pre-correction
- Support for DiSEqC 2.0 protocol
- High isolation between inputs and outputs (>30dB)
- Integrated 230V AC power supply
- 12V DC preamplifier power supply capability
- Robust metal housing ensuring shielding
Description
The TERRA MR-916L radial multiswitch is a professional device designed for modern collective terrestrial and satellite television installations. It is an ideal solution for small and medium-sized systems covering from a few to several dozen subscriber outlets, performing perfectly in single-family homes, residences, and smaller multi-family buildings. The device has 9 inputs (8 for satellite signals from two Quatro LNBs and 1 for DVB-T/T2 terrestrial television) and allows signal distribution to 16 independent users.
The main advantage of the MR-916L model is the built-in cable characteristic pre-correction, which compensates for coaxial cable attenuation as frequency increases, ensuring a balanced signal level for every user. Additionally, the multiswitch is equipped with an active terrestrial television path with a built-in LTE filter, which effectively eliminates interference from 4G mobile network transmitters. The robust housing and integrated 230V power supply ensure stable operation and easy installation. The device supports the DiSEqC 2.0 protocol, enabling smooth switching between satellites. By choosing TERRA brand products, you are investing in the highest build quality, reliability, and long-term durability of the antenna installation. Thanks to input and output isolation above 30dB, signals do not overlap, resulting in crystal-clear picture and sound. The device is characterized by low power consumption and high resistance to external factors inside buildings.
Specification
Device type
9-input radial multiswitch dedicated to star topology installations.
Inputs
8x satellite inputs (950 MHz ... 2400 MHz) for two Quatro LNBs; 1x active terrestrial input (47 MHz ... 790 MHz) with LTE filter; 1x passive terrestrial input (5 MHz ... 862 MHz).
Outputs
16x subscriber outputs in the 5 MHz ... 2400 MHz range, providing full access to the SAT and TV band.
Switching signals
Control via 14 V / 18 V voltages, 0 Hz / 22 kHz signal, and DiSEqC 2.0 protocol.
SAT gain
Adjustable gain with cable pre-correction in the range from 6 dB to 14 dB.
TV gain
Adjustable gain with cable pre-correction in the range from -1 dB to 5 dB.
Signal isolation
Between SAT/SAT inputs: > 30 dB; Between SAT outputs: > 30 dB; Between DVB-T outputs: > 30 dB.
Maximum SAT output level
93 dBµV (in accordance with standards for collective systems).
Maximum TV output level
82 dBµV ... 85 dBµV (ensures stable terrestrial reception).
Preamplifier power supply
Capability to provide 12 V DC power to the terrestrial antenna path.
Main power supply
Built-in high-efficiency 230 V AC (50/60 Hz) switching power supply.
Interface and Control Protocol
The device uses the advanced DiSEqC 2.0 (Digital Satellite Equipment Control) communication protocol, which enables bidirectional communication between the satellite tuner and the multiswitch. This allows the system to automatically recognize connected LNBs and manage polarization (H/V) and band (Low/High) switching for two different satellite positions (e.g., Astra and Hotbird). This protocol ensures full compatibility with modern digital decoders, allowing for stable and fast channel switching without delays. The control logic implemented in TERRA integrated circuits guarantees precise decoding of 22kHz commands, which eliminates signal switching errors even over long transmission lines.
Operating conditions
Designed for indoor installation in dry and ventilated areas.
Warranty
24 months (2 years) provided by the manufacturer's authorized service center.
Contents
1x MR-916L Multiswitch
1x User manual in Polish and English
1x Integrated power cable
Dimensions, Weight
Product dimensions: 52 x 253 x 135 mm (D x W x H)
Packaging dimensions: 60 x 285 x 180 mm (D x W x H)
Product weight: 1390 g
Weight with packaging: 1520 g
