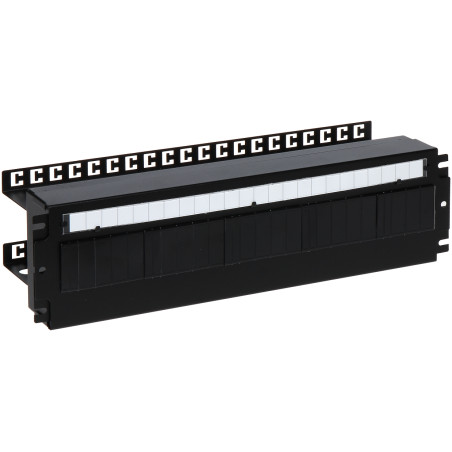

Power Distribution Panel for 19 Inch Rack Cabinets TH-35 DIN Rail for 24 S Fuses Steel Housing Black IP20 PULSAR A19-TS-35/PD-3U
zł219.78
Tax included
A professional power distribution panel is an essential piece of equipment for any advanced 19-inch RACK server cabinet. The device has been designed for the safe and organized mounting of modular apparatus, such as S-type electrical fuses, miniature circuit breakers, or other elements mounted on a standard DIN rail. Thanks to its solid construction made of high-quality cold-rolled steel, powder-coated in black (RAL 9005), the panel provides not only an aesthetic appearance but also exceptional durability and resistance to mechanical damage and corrosion.
Power Distribution Panel for 19 Inch Rack Cabinets TH-35 DIN Rail for 24 S Fuses Steel Housing Black IP20
Model: PULSAR A19-TS-35/PD-3U
EAN: 6931240052631 SKU: 931052632
- RACK 19 inch mounting standard
- 3U mounting height
- Built-in standard TH-35 DIN rail
- Possibility to mount up to 24 fuses with 1S width
- Made of durable powder-coated steel
- High resistance to corrosion and scratches
- 6-point front mounting to RACK profiles
- Integrated 420x20 mm labeling field for circuit identification
- Includes a set of 6 M6 screws with mounting cages
- IP20 protection class ensuring interior protection
Description
A professional power distribution panel is an essential piece of equipment for any advanced 19-inch RACK server cabinet. The device has been designed for the safe and organized mounting of modular apparatus, such as S-type electrical fuses, miniature circuit breakers, or other elements mounted on a standard DIN rail. Thanks to its solid construction made of high-quality cold-rolled steel, powder-coated in black (RAL 9005), the panel provides not only an aesthetic appearance but also exceptional durability and resistance to mechanical damage and corrosion.
Specification
Mounting standard
RACK 19 inch - compatibility with all standard server and telecommunication cabinets of this size.
Mounting height
3 U (rack units), which provides optimal space for modular apparatus and cabling.
Mounting rail
Integrated TH-35 DIN rail made according to current mounting standards for electrical apparatus.
Modular capacity
Maximum of 24 fuses with a width of 1 S (17.5 mm). Large space allows for the installation of various miniature circuit breakers and residual current devices.
Material and finish
High-quality structural steel protected against corrosion via powder coating, which guarantees product longevity.
Color scheme
Black (RAL 9005 color code), matte finish, matching the standard coloring of RACK accessories.
Protection class
IP20 - protection against solid objects larger than 12.5 mm, the standard for indoor devices.
Mounting stability
6-point front mounting to RACK profiles, ensuring rigidity and no panel vibration in the cabinet.
Identification system
Integrated labeling field with dimensions of 420 x 20 mm, allowing for permanent and legible marking of individual power sections.
Operating temperature
From -10 °C to +40 °C, which allows for stable operation in typical conditions found in ventilated server rooms.
Internal dimensions
Width: 445 mm, Height: 125 mm, Depth: 55 mm - optimal space under the DIN rail.
External dimensions
Width: 481 mm, Height: 132 mm, Depth: 135 mm - full dimensions of the panel housing.
Additional features
High resistance to chemical and mechanical corrosion, construction facilitating the entry and arrangement of power cables.
Warranty
24 months (2 years) - full service support from the manufacturer Pulsar.
Contents
1x Power distribution panel
6x M6 mounting screw
6x M6 mounting cage (cage nut)
Dimensions, Weight
Product dimensions: 135 x 481 x 132 mm (D x W x H)
Package dimensions: 145 x 490 x 145 mm (D x W x H)
Product weight: 2060 g
Weight with packaging: 2290 g
