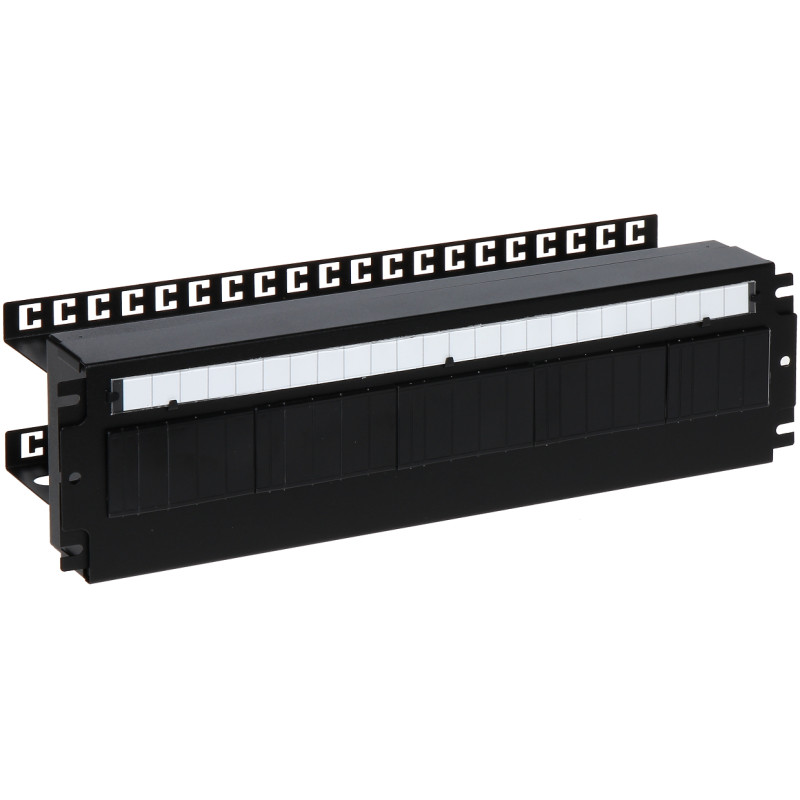

Power Distribution Panel for 19 Inch RACK Cabinets TH-35 DIN Rail for 24 S-Type Fuses Black Steel IP20

Model: PULSAR A19-TS-35/PD-3U

EAN: 6931240052631 SKU: 931052632

• RACK 19 inch mounting standard
• Mounting height 3U
• Integrated standard TH-35 DIN rail
• Capacity for up to 24 S-type fuses with 1S width
• Constructed from durable powder-coated steel
• High resistance to corrosion and scratches
• 6-point face-mounting for RACK profiles
• Integrated labeling field 420x20 mm for circuit identification
• Includes a set of 6 M6 screws with cage nuts
• IP20 ingress protection rating for interior safety

Description

A professional power distribution panel is an essential component for any advanced 19-inch RACK server cabinet. The device is designed for the safe and organized installation of modular equipment, such as S-type electrical fuses, miniature circuit breakers, and other components mounted on a standard DIN rail. Thanks to its robust construction made of high-quality cold-rolled steel, powder-coated in black (RAL 9005), the panel ensures not only an aesthetic appearance but above all, exceptional durability and resistance to mechanical damage and corrosion.

Specification

19-inch RACK - compatibility with all standard server and telecommunication cabinets of this size.

A key advantage of this model is its massive capacity – inside the 3U high housing, you can install up to 24 modules with a width of 1S (17.5 mm each). This allows for comprehensive power management even in highly complex telecommunications systems. The panel features 6-point face-mounting to RACK profiles, ensuring structural stability even when fully loaded with equipment. An additional benefit is the integrated 420x20 mm labeling field, which allows for precise identification of each circuit, significantly simplifying future maintenance and service work. The product has an IP20 ingress protection rating and is suitable for operation in a wide temperature range, making it an ideal solution for professional server rooms, data centers, and building automation systems.

3 U (rack units), which provides optimal space for modular equipment and cabling.

Mounting Standard

Integrated TH-35 (DIN) rail manufactured in accordance with current mounting standards for electrical equipment.

Mounting Height

Maximum 24 fuses with a width of 1 S (17.5 mm). The large space allows for the installation of various miniature circuit breakers and residual current devices.

Mounting Rail

High-quality structural steel with anti-corrosion protection via powder coating, ensuring product longevity.

Modular Capacity

Black (color code RAL 9005), matte finish, matching the standard color scheme of RACK accessories.

Material and Finish

IP20 - protection against solid objects larger than 12.5 mm, standard for indoor-use devices.

Color Scheme

6-point face-mounting to RACK profiles, ensuring rigidity and lack of vibrations in the cabinet.

Ingress Protection

Integrated 420 x 20 mm labeling field, enabling durable and legible marking of individual power sections.

Mounting Stability

-10 °C to +40 °C, allowing stable operation in typical conditions found in ventilated server rooms.

Identification System

Width: 445 mm, Height: 125 mm, Depth: 55 mm - optimal space under the DIN rail.

Operating Temperature

Width: 481 mm, Height: 132 mm, Depth: 135 mm - full dimensions of the panel housing.

Internal Dimensions

High resistance to chemical and mechanical corrosion, construction facilitating the entry and arrangement of power cables.

External Dimensions

24 months (2 years) - full manufacturer service support from Pulsar.

Additional Properties

1x Power distribution panel

6x M6 mounting screw

6x M6 mounting cage nut

Warranty

Dimensions, Weight

Product dimensions: 135 x 481 x 132 mm (D x W x H)

Package dimensions: 145 x 490 x 145 mm (D x W x H)

Product weight: 2060 g

Weight with packaging: 2290 g
