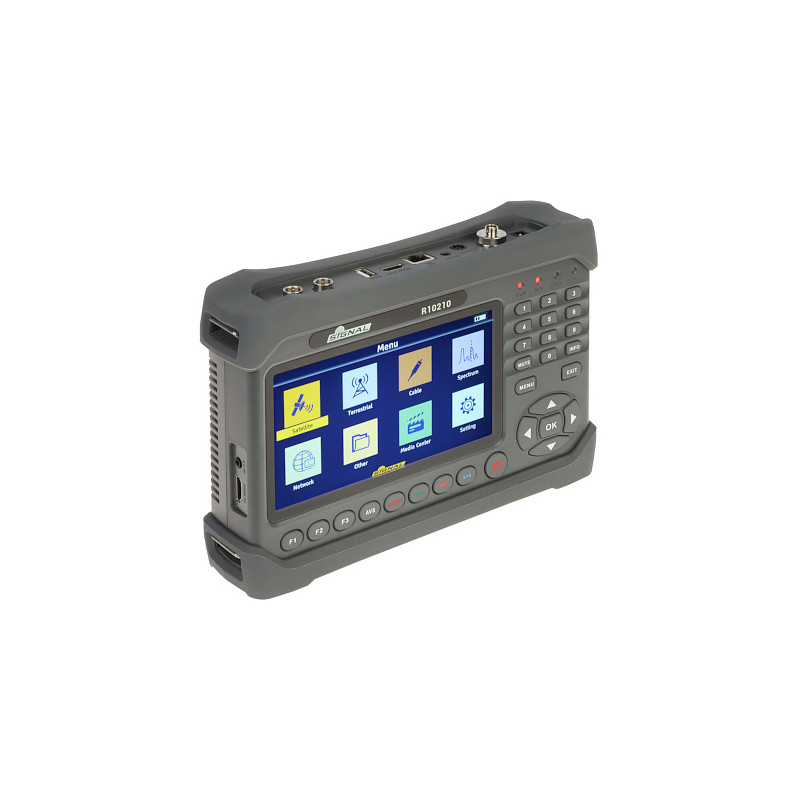

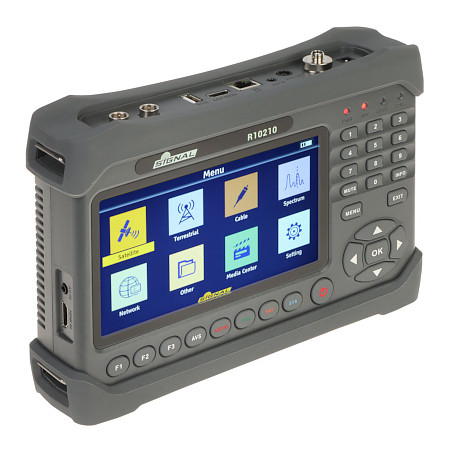

TV/SAT DVB-T/T2 DVB-S/S2 DVB-C signal meter with 7 inch display and spectrum analyzer SIGNAL ST-6986
zł1,899.61
Tax included
The universal ST-6986 meter is an advanced tool designed for professional installers of terrestrial, satellite, and cable television systems. The device supports DVB-T/T2, DVB-S/S2, and DVB-C standards, making it an extremely versatile solution for daily service work. Equipped with a large, clear 7-inch LCD display with a resolution of 1280 x 720 px, the meter ensures comfortable operation and precise real-time preview of tuned channels. Thanks to the built-in MPEG-2, H.264, and H.265 video decoder, the user can verify the correctness of the signal reception directly on the device screen.
The advantages of the device include advanced diagnostic functions, such as spectrum analysis for the entire frequency band, a constellation diagram, and precise measurements of signal parameters: dBμV, C/N, BER, and MER. The meter also has a built-in optical power meter, which allows for the diagnostics of fiber optic installations. Automatic DiSEqC identification and support for Unicable (dSCR) and Wideband systems significantly speed up the satellite antenna configuration process. A robust design, a built-in 5000 mAh Li-Ion battery, and an included practical carrying case make the ST-6986 an ideal companion for field work, ensuring long operating time without the need for frequent charging.
TV/SAT DVB-T/T2 DVB-S/S2 DVB-C signal meter with 7 inch display and spectrum analyzer
Model: SIGNAL ST-6986
EAN: 6931240040454 SKU: 931040451
- Support for DVB-T/T2, DVB-S/S2, DVB-C
- 7-inch LCD display (1280 x 720 px)
- Built-in H.265 video decoder
- Spectrum analysis and constellation diagram
- Built-in optical power meter
- Support for Unicable (dSCR) and Wideband
- 5000 mAh battery
- Practical carrying case included
Description
The universal ST-6986 meter is an advanced tool designed for professional installers of terrestrial, satellite, and cable television systems. The device supports DVB-T/T2, DVB-S/S2, and DVB-C standards, making it an extremely versatile solution for daily service work. Equipped with a large, clear 7-inch LCD display with a resolution of 1280 x 720 px, the meter ensures comfortable operation and precise real-time preview of tuned channels. Thanks to the built-in MPEG-2, H.264, and H.265 video decoder, the user can verify the correctness of the signal reception directly on the device screen.
The advantages of the device include advanced diagnostic functions, such as spectrum analysis for the entire frequency band, a constellation diagram, and precise measurements of signal parameters: dBμV, C/N, BER, and MER. The meter also has a built-in optical power meter, which allows for the diagnostics of fiber optic installations. Automatic DiSEqC identification and support for Unicable (dSCR) and Wideband systems significantly speed up the satellite antenna configuration process. A robust design, a built-in 5000 mAh Li-Ion battery, and an included practical carrying case make the ST-6986 an ideal companion for field work, ensuring long operating time without the need for frequent charging.
Specification
Output and input
Inputs: IEC socket (Ant), F socket (LNB), HDMI, AV (mini Jack), Fiber optic (SC/FC). Outputs: HDMI, AV (mini Jack), 12V DC power supply.
Frequency range
48 MHz ... 862 MHz (DVB-T/T2/C), 950 MHz ... 2150 MHz (DVB-S/S2).
Signal level
-20 ... +80 dBm (DVB-S/S2), -20 ... +80 dBm (DVB-T/T2/C), -40 ... +23 dBm (Optical power meter).
LNB power supply
13V / 18V, max. 400 mA.
Band switching
0 / 22 kHz.
Antenna power supply
5V / 12V / 24V @ 100 mA.
DiSEqC
Support for 1.0, 1.1, 1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband.
Modulation
QPSK/8PSK/16APSK (S/S2), QPSK/16-QAM/64-QAM/256-QAM (T/T2/C).
Software update
Via USB port. The device has a built-in multimedia interface that allows for playing files in wma, mp3, mp4, avi, jpg, jpeg, bmp, img formats. The software enables advanced signal analysis, including calculating azimuth and elevation angles for satellite antennas, which is crucial for precise dish alignment. The user interface is intuitive and multilingual, which facilitates navigation through measurement functions.
Battery power
Li-Ion battery 7.4V / 5000 mAh.
Mains power
12V / 1.5A (power adapter included).
Power consumption
≤ 10 W.
Selected features
7-inch display, DVB-T/T2/C/S/S2 signal measurement, MPEG-2/H.264/H.265 decoder, spectrum analysis, dBμV, C/N, BER, MER measurement, built-in optical power meter (850-1625 nm).
Supported languages
Polish, English, Czech, Danish, French, Greek, Spanish, Dutch, German, Slovenian, Portuguese, Russian, Turkish, Hungarian, Italian.
Contents
1x ST-6986 meter
1x 12V/1.5A power adapter
1x Protective case
User manual
Dimensions, Weight
Product dimensions: 59 x 259 x 181 mm (D x W x H)
Package dimensions: 100 x 345 x 300 mm (D x W x H)
Product weight: 1170 g
Weight with package: 3014 g
