Optical Time Domain Reflectometer OTDR Power Meter Light Source VFL LAN Tester 1310/1550nm 100km Touch Screen Delta Fiber OTDR-X
zł2,458.03
Tax included

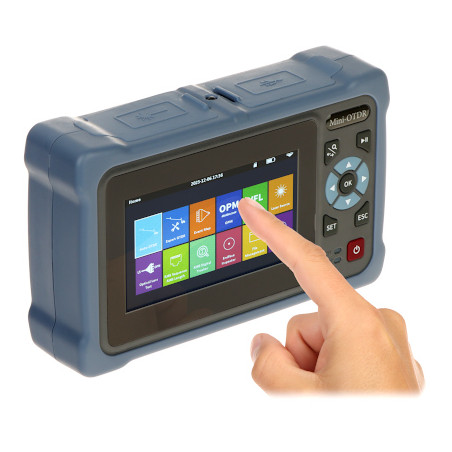

The OTDR-XK40D optical reflectometer is an advanced, multifunctional measuring tool that is essential equipment for every installer of modern fiber optic networks. The device has been designed for precise diagnostics, attenuation measurement, and rapid fault location in optical lines, offering a wide range of functionality enclosed in a handy and durable housing. Thanks to the use of a modern, 4.3-inch color touch screen, the device is extremely intuitive to operate, which significantly increases work comfort in difficult field conditions.
The main advantage of the OTDR-XK40D model is its unprecedented versatility. The instrument combines four key functions: an optical time domain reflectometer (OTDR), a precise optical power meter (OPM), a stabilized light source (OLS), and a visual fault locator (VFL). This combination allows for full certification and diagnostics of the line, from measuring total attenuation, through detailed analysis of individual events on the route (such as splices, bends, or connectors), to physically locating fiber breaks using visible light. The device operates at standard wavelengths of 1310 nm and 1550 nm, which enables diagnostics of most single-mode transmission systems. The high measurement dynamics (26/24 dB) allow for testing fiber optic sections up to 100 kilometers long, making it an ideal solution for both access and backbone networks.
An additional advantage of the device is the integrated twisted-pair cable tester and the wire identification function in a bundle, which allows for servicing hybrid telecommunications installations. A solid 4000 mAh lithium-polymer battery ensures a long operating time without the need for frequent charging, and a modern USB-C port allows for quick energy replenishment from any power source. The set also includes an 8 GB memory card for saving reports and a practical protective case.
Optical Time Domain Reflectometer OTDR Power Meter Light Source VFL LAN Tester 1310/1550nm 100km Touch Screen
Model: Delta Fiber OTDR-XK40D
EAN: 6931240090428 SKU: 931090429
- Multifunctional 4-in-1 device: OTDR, OPM, OLS, VFL
- Large, clear 4.3-inch touch screen
- Measurements at 1310 nm and 1550 nm wavelengths
- Wide measurement range from 500 m to 100 km
- High dynamic range: 26 dB / 24 dB
- Built-in Visual Fault Locator (VFL)
- Optical Power Meter (OPM) function for multiple wavelengths
- Stabilized Light Source (OLS) with various modulation modes
- Integrated RJ45 network cable tester (twisted pair)
- Ability to generate professional reports in *.sor format
- Built-in LED flashlight for working in dark areas
- Li-Poly 4000 mAh battery power with USB-C charging
- Includes 8 GB memory card and carrying case
Description
The OTDR-XK40D optical reflectometer is an advanced, multifunctional measuring tool that is essential equipment for every installer of modern fiber optic networks. The device has been designed for precise diagnostics, attenuation measurement, and rapid fault location in optical lines, offering a wide range of functionality enclosed in a handy and durable housing. Thanks to the use of a modern, 4.3-inch color touch screen, the device is extremely intuitive to operate, which significantly increases work comfort in difficult field conditions.
The main advantage of the OTDR-XK40D model is its unprecedented versatility. The instrument combines four key functions: an optical time domain reflectometer (OTDR), a precise optical power meter (OPM), a stabilized light source (OLS), and a visual fault locator (VFL). This combination allows for full certification and diagnostics of the line, from measuring total attenuation, through detailed analysis of individual events on the route (such as splices, bends, or connectors), to physically locating fiber breaks using visible light. The device operates at standard wavelengths of 1310 nm and 1550 nm, which enables diagnostics of most single-mode transmission systems. The high measurement dynamics (26/24 dB) allow for testing fiber optic sections up to 100 kilometers long, making it an ideal solution for both access and backbone networks.
An additional advantage of the device is the integrated twisted-pair cable tester and the wire identification function in a bundle, which allows for servicing hybrid telecommunications installations. A solid 4000 mAh lithium-polymer battery ensures a long operating time without the need for frequent charging, and a modern USB-C port allows for quick energy replenishment from any power source. The set also includes an 8 GB memory card for saving reports and a practical protective case.
Specification
Display
4.3 inch, color LCD touch screen
OTDR wavelength
1310 nm / 1550 nm
OPM wavelength
850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm
OLS function (Light Source)
Modes: continuous, 270 Hz, 330 Hz, 1 kHz, 2 kHz; Wavelengths: 1310 / 1550 nm
VFL function (Locator)
Modes: continuous, 1 Hz, 2 Hz; Universal 2.5 mm connector
OTDR measurement range
From 500 m to 100 km
Dynamic range
26 dB for 1310 nm / 24 dB for 1550 nm
Connector types
SC, ST for OTDR module; Universal 2.5 mm for OPM and VFL
Memory and Reporting
Memory card support (8 GB included); Report generation in standard *.sor format (Bellcore)
LAN tester
Built-in RJ45 twisted-pair tester; Wire identification function in a bundle
Power supply
Li-Poly 3.7 V / 4000 mAh battery; Charging via USB-C connector; 5V/2A power adapter included
Additional equipment
Built-in LED flashlight; Practical protective case; 8 GB memory card
Software
The OTDR-XK40D reflectometer software offers a comprehensive environment for analyzing and interpreting fiber optic measurement results in real time. The system automatically analyzes the reflectogram, detecting and categorizing events such as splices, mechanical connectors, splitters, and fiber ends, providing their exact distance and loss in decibels (dB). The user has access to an automatic mode, in which the device independently selects optimal pulse parameters, and an expert mode for full control over the measurement process. The graphical interface is optimized for touch operation, which allows for quick zooming of chart fragments and detailed event inspection. The software allows saving results in Bellcore (*.sor) format, which enables subsequent professional data processing on a PC. Additionally, the system integrates RJ45 structured cabling testing functions, including verification of the wire map and pair continuity.
Physical parameters
Weight: 481 g; Dimensions: 170 x 106 x 45 mm; Housing resistant to field working conditions
Contents
1x OTDR-XK40D reflectometer
1x USB 5V/2A power adapter
1x USB-C cable
1x 8 GB memory card
1x Protective case
1x User manual
Dimensions, Weight
Product dimensions: 45 x 170 x 106 mm (D x W x H)
Package dimensions: 100 x 220 x 125 mm (D x W x H)
Product weight: 481 g
Weight with packaging: 956 g
