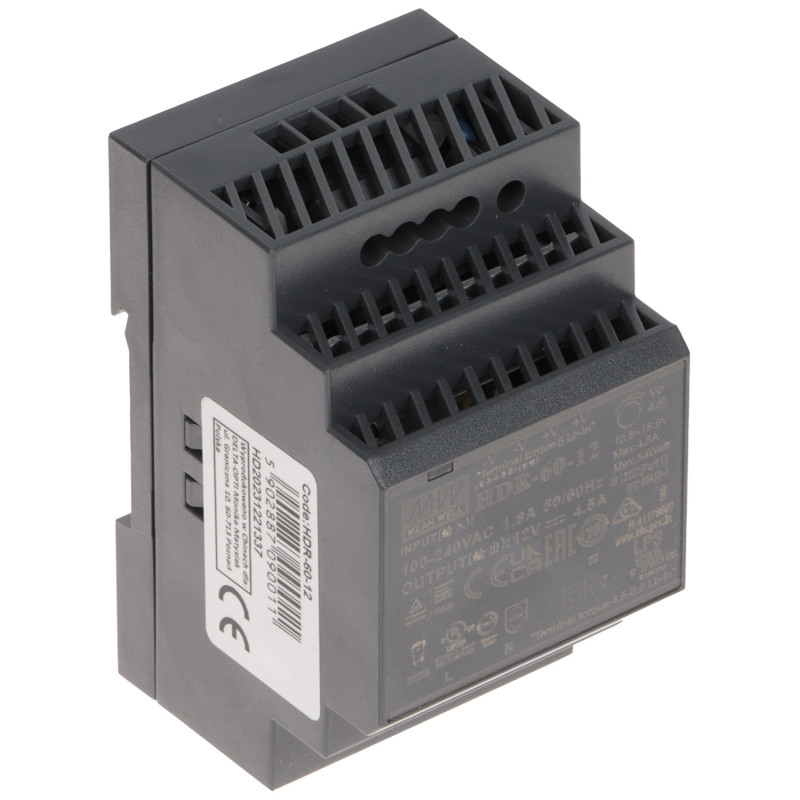

12V DC 4.5A 54W DIN rail switching power supply Ultra slim efficient stabilized for control cabinets MEAN WELL HDR-60-12
zł153.59
Tax included
The HDR-60-12 switching power supply is an advanced power device from the renowned manufacturer Mean Well, designed specifically for mounting on a TS-35/7.5 or 15 DIN rail. Thanks to its ultra-compact design with a width of only 52.5 mm (corresponding to 3 fuse modules), it is ideal for spaces with limited room, such as home electrical distribution boards or industrial control cabinets. The device is characterized by very low power consumption in the no-load state (below 0.3W), which makes it a highly energy-efficient solution compliant with modern environmental standards.
The power supply offers a stable 12V DC output voltage with the possibility of precise adjustment in the range from 10.8V to 13.8V using a built-in potentiometer. This is particularly important in installations where voltage drops occur on long transmission lines. High efficiency at the 88% level minimizes energy losses in the form of heat, which allows for trouble-free operation in a wide temperature range from -30°C to +70°C with cooling by free air convection. The product has Class II insulation, which means it does not require grounding, simplifying the installation process.
Operational safety is ensured by comprehensive protection systems: short-circuit, overload, and overvoltage. The power supply meets rigorous safety and electromagnetic compatibility standards, as confirmed by numerous certificates. It is a reliable power source for CCTV video monitoring systems, alarm systems, building automation, and LED lighting. A solid plastic housing resistant to high temperatures and a 3-year warranty period testify to the highest quality of this product, which will satisfy even the most demanding installers and end-users.
12V DC 4.5A 54W DIN rail switching power supply Ultra slim efficient stabilized for control cabinets
Model: MEAN WELL HDR-60-12
EAN: 6931240018057 SKU: 931018055
- Ultra slim housing with a width of 52.5 mm (3SU)
- Mounting on DIN rail TS-35/7.5 or TS-35/15
- Wide AC and DC input voltage range
- High energy efficiency at 88%
- Low no-load power consumption < 0.3W
- Output voltage adjustment in the range of 10.8V - 13.8V
- Class II insulation (no grounding required)
- Cooling by free air convection
- Wide operating temperature range from -30°C to +70°C
- Complete protection set: SCP, OLP, OVP
- LED indicator for DC OK status
- Long service life and 3-year warranty
Description
The HDR-60-12 switching power supply is an advanced power device from the renowned manufacturer Mean Well, designed specifically for mounting on a TS-35/7.5 or 15 DIN rail. Thanks to its ultra-compact design with a width of only 52.5 mm (corresponding to 3 fuse modules), it is ideal for spaces with limited room, such as home electrical distribution boards or industrial control cabinets. The device is characterized by very low power consumption in the no-load state (below 0.3W), which makes it a highly energy-efficient solution compliant with modern environmental standards.
The power supply offers a stable 12V DC output voltage with the possibility of precise adjustment in the range from 10.8V to 13.8V using a built-in potentiometer. This is particularly important in installations where voltage drops occur on long transmission lines. High efficiency at the 88% level minimizes energy losses in the form of heat, which allows for trouble-free operation in a wide temperature range from -30°C to +70°C with cooling by free air convection. The product has Class II insulation, which means it does not require grounding, simplifying the installation process.
Operational safety is ensured by comprehensive protection systems: short-circuit, overload, and overvoltage. The power supply meets rigorous safety and electromagnetic compatibility standards, as confirmed by numerous certificates. It is a reliable power source for CCTV video monitoring systems, alarm systems, building automation, and LED lighting. A solid plastic housing resistant to high temperatures and a 3-year warranty period testify to the highest quality of this product, which will satisfy even the most demanding installers and end-users.
Specification
Power supply type
Switching - high efficiency and output voltage stability
AC supply voltage
85 V ... 264 V - universal input range for global networks
DC supply voltage
120 V ... 370 V - DC power supply capability
Output voltage
12 V DC - stabilized DC voltage
Output voltage adjustment
10.8 V ... 13.8 V DC - precise adjustment via potentiometer on the panel
Power supply current efficiency
4.5 A - maximum continuous current
Power supply power
54 W - rated device power
Number of outputs
1 pc. - duplicated screw terminals (+V, +V, -V, -V) for easy bridging
Efficiency
88 % - high efficiency reducing cabinet heating
Housing type
DIN - industrial standard, 3-module width (3SU)
Short-circuit protection
Yes - Hiccup mode, automatic recovery after short-circuit removal
Overload protection
Yes - in the range of 105% ... 160% of rated power, constant current mode
Overvoltage protection
Yes - in the range of 14.2 V ... 16.2 V, output voltage shutdown
Operating temperature
-30 °C ... 70 °C - adapted for operation in harsh conditions
Relative humidity
20 % ... 90 % - operation in non-condensing environment
Insulation class
Class II - double insulation, does not require PE grounding connection
No-load power consumption
< 0.3 W - compliance with ErP standards and energy saving
Operation signaling
DC OK LED on the front panel indicating voltage presence
Compliance with standards
UL62368-1, EN61558-1, EN61558-2-16, IEC62368-1, EN55032, EN61000-3-2
Warranty
3 years - high reliability confirmed by the manufacturer
Contents
1x HDR-60-12 DIN rail switching power supply
Dimensions, Weight
Product dimensions: 58 x 53 x 92 mm (D x W x H)
Package dimensions: 55 x 60 x 95 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 206 g
