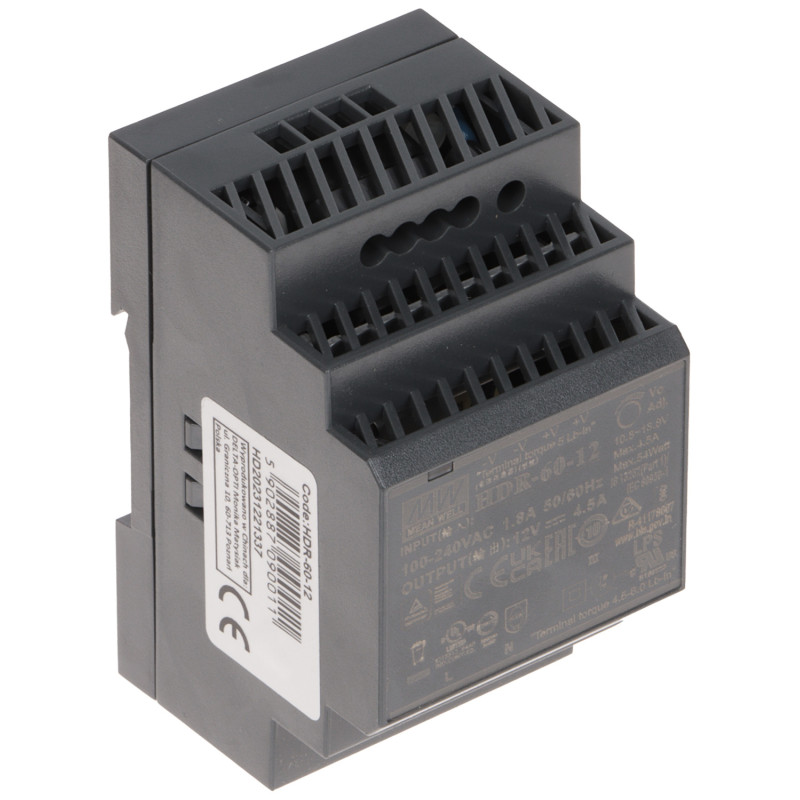

12V DC 4.5A 54W Ultra Slim DIN Rail Switching Power Supply for Control Cabinets MEAN WELL HDR-60-12
zł153.59
Tax included
The HDR-60-12 switching power supply is an advanced power device from the renowned manufacturer Mean Well, designed specifically for mounting on TS-35/7.5 or 15 DIN rails. Thanks to its ultra-compact design with a width of only 52.5 mm (corresponding to 3 fuse modules), it is ideal for space-constrained areas such as home electrical distribution boards or industrial control cabinets. The device is characterized by very low power consumption in no-load mode (below 0.3W), making it a highly energy-efficient solution compliant with modern environmental standards.
The power supply offers a stable 12V DC output voltage with the possibility of precise adjustment in the range from 10.8V to 13.8V using a built-in potentiometer. This is particularly important in installations where voltage drops occur on long transmission lines. High efficiency of 88% minimizes energy losses in the form of heat, allowing for trouble-free operation in a wide temperature range from -30°C to +70°C with free air convection cooling. The product has Class II insulation, which means it does not require grounding, simplifying the installation process.
Operational safety is ensured by comprehensive protection systems: short-circuit, overload, and overvoltage. The power supply meets rigorous safety and electromagnetic compatibility standards, as confirmed by numerous certificates. It is a reliable power source for CCTV monitoring systems, alarm systems, building automation, and LED lighting. A robust plastic housing resistant to high temperatures and a 3-year warranty period attest to the highest quality of this product, which will satisfy even the most demanding installers and end-users.
12V DC 4.5A 54W Ultra Slim DIN Rail Switching Power Supply for Control Cabinets
Model: MEAN WELL HDR-60-12
EAN: 6931240018057 SKU: 931018055
- Ultra slim housing with a width of 52.5 mm (3SU)
- Mounting on DIN rail TS-35/7.5 or TS-35/15
- Wide AC and DC input voltage range
- High energy efficiency of 88%
- Low no-load power consumption < 0.3W
- Output voltage adjustment range 10.8V - 13.8V
- Class II insulation (no grounding required)
- Cooling by free air convection
- Wide operating temperature range from -30°C to +70°C
- Complete protection set: SCP, OLP, OVP
- LED indicator for DC OK status
- Long service life and 3-year warranty
Description
The HDR-60-12 switching power supply is an advanced power device from the renowned manufacturer Mean Well, designed specifically for mounting on TS-35/7.5 or 15 DIN rails. Thanks to its ultra-compact design with a width of only 52.5 mm (corresponding to 3 fuse modules), it is ideal for space-constrained areas such as home electrical distribution boards or industrial control cabinets. The device is characterized by very low power consumption in no-load mode (below 0.3W), making it a highly energy-efficient solution compliant with modern environmental standards.
The power supply offers a stable 12V DC output voltage with the possibility of precise adjustment in the range from 10.8V to 13.8V using a built-in potentiometer. This is particularly important in installations where voltage drops occur on long transmission lines. High efficiency of 88% minimizes energy losses in the form of heat, allowing for trouble-free operation in a wide temperature range from -30°C to +70°C with free air convection cooling. The product has Class II insulation, which means it does not require grounding, simplifying the installation process.
Operational safety is ensured by comprehensive protection systems: short-circuit, overload, and overvoltage. The power supply meets rigorous safety and electromagnetic compatibility standards, as confirmed by numerous certificates. It is a reliable power source for CCTV monitoring systems, alarm systems, building automation, and LED lighting. A robust plastic housing resistant to high temperatures and a 3-year warranty period attest to the highest quality of this product, which will satisfy even the most demanding installers and end-users.
Specification
Power supply type
Switching - high efficiency and output voltage stability
AC supply voltage
85 V ... 264 V - universal input range for global networks
DC supply voltage
120 V ... 370 V - DC power supply capability
Output voltage
12 V DC - stabilized DC voltage
Output voltage adjustment
10.8 V ... 13.8 V DC - precise adjustment via potentiometer on the panel
Power supply current capacity
4.5 A - maximum continuous current
Power supply power
54 W - rated power of the device
Number of outputs
1 pc. - duplicated screw terminals (+V, +V, -V, -V) for easy bridging
Efficiency
88 % - high efficiency reducing cabinet heating
Housing type
DIN - industrial standard, 3-module width (3SU)
Short-circuit protection
Yes - Hiccup mode, automatic recovery after short-circuit removal
Overload protection
Yes - in the range of 105% ... 160% of rated power, constant current mode
Overvoltage protection
Yes - in the range of 14.2 V ... 16.2 V, output voltage shutdown
Operating temperature
-30 °C ... 70 °C - adapted for operation in harsh conditions
Relative humidity
20 % ... 90 % - operation in non-condensing environment
Insulation class
Class II - double insulation, does not require PE grounding connection
No-load power consumption
< 0.3 W - compliance with ErP standards and energy saving
Operation signaling
DC OK LED on the front panel indicating voltage presence
Compliance with standards
UL62368-1, EN61558-1, EN61558-2-16, IEC62368-1, EN55032, EN61000-3-2
Warranty
3 years - high reliability confirmed by the manufacturer
Contents
1x HDR-60-12 DIN rail switching power supply
Dimensions, Weight
Product dimensions: 58 x 53 x 92 mm (D x W x H)
Package dimensions: 55 x 60 x 95 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 206 g
