UTP 2-wire converter kit for LAN transmission and PoE power supply network extender 800m range transmitter set

Model: ATTE ETH-2WIRE-A-SET

EAN: 6931240068182 SKU: 931068180

• LAN and PoE transmission over any 2 wires
• Transmission range up to 800 meters (10 Mbps) or 300 meters (100 Mbps)
• Full transparency for IP networks and devices
• Support for PoE 802.3at and 802.3bt (Hi-PoE) standards
• Plug & Play technology - no configuration required
• Advanced surge protection for data ports
• Overload and reverse polarity protection
• Compact housing made of durable polycarbonate

Description

The converter set is an innovative solution designed for modernizing existing IP monitoring systems and building new installations in locations where cable replacement is technically impossible or economically unjustified. The devices allow for stable Ethernet data transmission and PoE power delivery using only two arbitrary wires, such as a single twisted-pair cable, telephone lines, or electrical cables.

Specification

Installation of the set is extremely simple and fast thanks to Plug & Play technology. The transmitter module (TX) is powered directly from the PoE switch and then sends power and data to the receiver (RX), to which the end camera is connected. The device features advanced protection circuits, including surge protection for LAN and DATA ports and protection against reverse power polarity connection, which guarantees long and trouble-free operation of the entire system in harsh environmental conditions.

The main advantage of the set is its impressive range, which, depending on the selected operating mode, is up to 300 meters at 100 Mbps or up to 800 meters at 10 Mbps. Thanks to this, the set is ideal for large industrial facilities, warehouses, or perimeter security systems. Network transparency makes the device invisible to management software, which eliminates configuration and compatibility issues with cameras from various manufacturers.

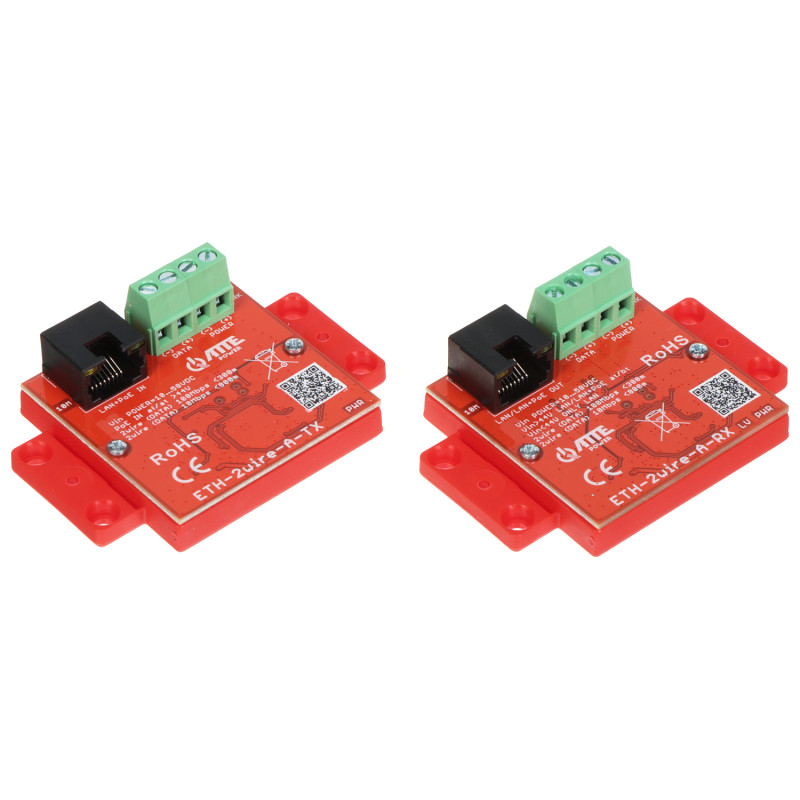

UTP / 2-WIRE converter set (TX transmitter + RX receiver)

The use of a high-quality polycarbonate housing ensures mechanical durability, while compact dimensions allow for easy mounting in installation boxes or small telecommunication enclosures. It is a professional-grade solution that significantly reduces installation costs while maintaining the highest high-definition image transmission parameters.

1 pc. RJ45 (Registered Jack type 45 – 8-pin connector used in Ethernet networks) and 1 pc. screw terminal block supporting wires with a cross-section from 0.32 mm² to 3.3 mm² (22-12 AWG)

Device type

1 pc. RJ45 10 / 100 Mbps with full auto-negotiation support

Connectors

Speed 10 / 100 Mbps depending on transmission line length

LAN ports

300 meters at 100 Mbps speed; 800 meters at 10 Mbps speed

Transmission parameters

Standard 100 meters from PoE Switch to transmitter and 100 meters from receiver to IP camera

2-wire transmission range

LED indicators informing about Power status, LAN (RJ-45), PoE (RJ-45), active 2-wire transmission, 10 Mbps mode, and low voltage (LV < 44V)

UTP transmission range

From PoE (24-56V DC) supporting Passive PoE standards ≤ 30W, 802.3at ≤ 30W, 802.3af ≤ 15W or from Power screw terminal (12-56V DC)

Optical signaling

From Power terminal (44-56V DC). The output voltage on the PoE port is equal to the input voltage supplied to the module

Transmitter power supply (TX)

Hi-PoE standard supporting 802.3af/at/bt on appropriate power pins

Receiver power supply (RX)

Surge protection on LAN and DATA lines; Protection against reverse Power polarity connection; 0.6A overload protection in the transmitter

PoE output (RX)

Total power consumption 1.35W; Housing made of plastic (polycarbonate); IP20 ingress protection class

Technical protections

Temperature range from -25 °C to 65 °C

Power consumption and housing

Devices support full network transparency, which enables trouble-free operation with any IP cameras and NVR recorders

Operating conditions

3 years (36 months)

Additional features

Dimensions, Weight

Product dimensions: 23 x 73 x 51 mm (D x W x H)

Packaging dimensions: 52 x 125 x 85 mm (D x W x H)

Product weight: 56 g

Weight including packaging: 84 g
