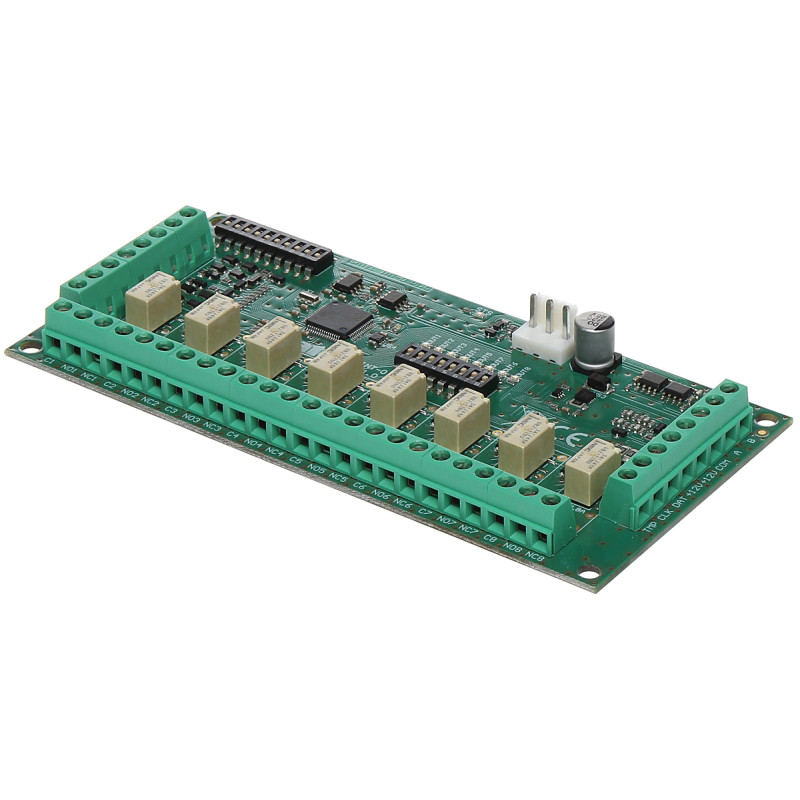

8 programmable OC and relay output expander for INTEGRA VERSA PERFECTA alarm control panels SATEL INT-O
zł383.45
Tax included
The INT-O expander is a high-class expansion module that allows for significant expansion of the capabilities of Satel alarm systems. The device is dedicated to working with advanced control panels from the INTEGRA and INTEGRA Plus families, as well as with VERSA and PERFECTA systems. By using this module, the user gains 8 additional, fully programmable wired outputs, which is crucial for implementing building automation projects and complex signaling systems.
The greatest advantage of the INT-O expander is the unique design of the outputs – each of the eight physical outputs offers both an OC (Open Collector) output and a relay output connected in parallel. This allows for enormous flexibility during installation, giving the installer a choice between fast low-current control and direct switching of devices with higher power consumption, such as electric strikes, gate drives, or lighting systems.
The module's security is enhanced by a dedicated TMP tamper input, which monitors the integrity of the housing, informing the control panel of any unauthorized access attempt. The module is characterized by low power consumption and operational stability in a wide temperature range. The compact PCB design enables trouble-free installation in standard Satel housings. By choosing this product, you are investing in proven technology that will allow your alarm system to evolve along with your growing needs in terms of control and protection.
8 programmable OC and relay output expander for INTEGRA VERSA PERFECTA alarm control panels
Model: SATEL INT-O
EAN: 6931240099193 SKU: 931099196
- 8 programmable wired outputs
- Hybrid design: OC outputs connected in parallel with relay outputs
- Compatibility with INTEGRA, VERSA and PERFECTA control panels
- Dedicated TMP tamper input
- High relay load capacity up to 2A
- +12V power output with 2.5A capacity
- RS-485 communication bus
- Firmware update capability
Description
The INT-O expander is a high-class expansion module that allows for significant expansion of the capabilities of Satel alarm systems. The device is dedicated to working with advanced control panels from the INTEGRA and INTEGRA Plus families, as well as with VERSA and PERFECTA systems. By using this module, the user gains 8 additional, fully programmable wired outputs, which is crucial for implementing building automation projects and complex signaling systems.
The greatest advantage of the INT-O expander is the unique design of the outputs – each of the eight physical outputs offers both an OC (Open Collector) output and a relay output connected in parallel. This allows for enormous flexibility during installation, giving the installer a choice between fast low-current control and direct switching of devices with higher power consumption, such as electric strikes, gate drives, or lighting systems.
The module's security is enhanced by a dedicated TMP tamper input, which monitors the integrity of the housing, informing the control panel of any unauthorized access attempt. The module is characterized by low power consumption and operational stability in a wide temperature range. The compact PCB design enables trouble-free installation in standard Satel housings. By choosing this product, you are investing in proven technology that will allow your alarm system to evolve along with your growing needs in terms of control and protection.
Specification
Device type
Wired output expander for intrusion and hold-up alarm systems
Compatibility
Satel alarm control panels: INTEGRA, INTEGRA Plus, VERSA, PERFECTA
Number of outputs
8 pcs. - fully programmable from the control panel level
Output type
8x OC (Open Collector) and 8x Relay (connected in parallel)
OC output load capacity
50 mA / 12 V DC - low-current control
Relay switched current
Maximum 2 A DC (Direct Current)
Relay switched voltage
Maximum 24 V DC (Direct Current)
Tamper output
Yes, TMP input for tamper contact
Power consumption
Quiescent: 36 mA; Active relay: +16 mA (max. 160 mA)
Power supply
12 V DC (+/- 15%) / 160 mA max
Additional power supply
+12V output with 2.5 A capacity for powering detectors
Operating temperature
-10 °C ... 55 °C (humidity up to 93%)
Configuration software
INT-RS485 Soft - Dedicated Satel utility application enabling advanced configuration of communication parameters on the RS-485 bus and performing a full firmware update of the module. The program provides diagnostic functions allowing for real-time monitoring of the status of inputs and outputs, which is essential during service and commissioning of extensive alarm installations.
Mounting
Standard mounting holes for Satel OPU-1/3/4 housings
Contents
1x INT-O expander module
1x Set of spacers
1x User manual
Dimensions, Weight
Product dimensions: 20 x 140 x 68 mm (D x W x H)
Packaging dimensions: 45 x 165 x 85 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 125 g
