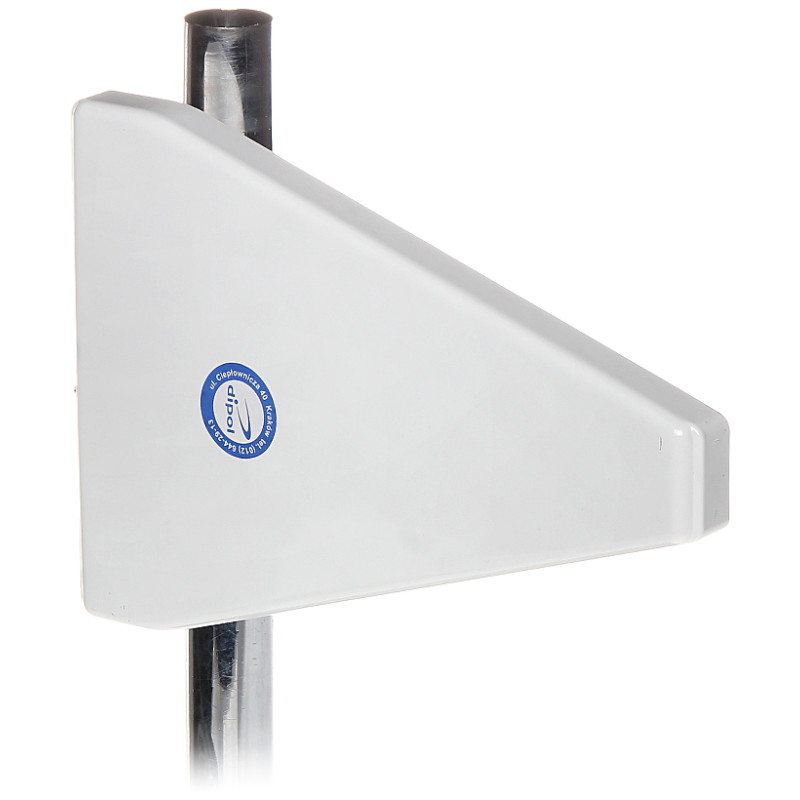

Outdoor Logarithmic Antenna GSM DCS UMTS HSDPA LTE SMA 10m RF-5 Cable Broadband Directional Trans-Data ATK-ALP/LTE+SMA/10
zł241.95
Tax included
The broadband logarithmic antenna is an advanced solution dedicated to users of mobile telephony systems GSM, DCS, UMTS, HSDPA, and modern LTE networks. The device has been designed to improve signal quality in places where built-in modem antennas prove insufficient. Thanks to a wide operating range from 800 MHz to 3000 MHz, the product is extremely versatile and compatible with most telecommunications operators.
The main advantage of the presented model is a high energy gain of up to 9 dBi, which allows for a stable internet connection and improved voice call quality even at a significant distance from the base station (BTS). The directional antenna effectively reduces interference and focuses the signal beam, which translates into higher data transfer rates. It is worth noting that for full utilization of LTE and MIMO technologies, it is recommended to use two antennas – one mounted in vertical polarization and the other in horizontal.
The antenna construction is characterized by high resistance to atmospheric conditions, which guarantees longevity and failure-free operation outside buildings. The use of a high-quality 10-meter low-loss RF-5 cable allows for flexible mast mounting while maintaining minimal signal losses. The SMA connector is a standard in most home LTE routers and modems, making installation fast and intuitive. Solid attachment to a mast with a diameter of up to 45 mm ensures stability even during strong wind gusts. Choosing this antenna is a guarantee of stable coverage and comfort when working with multimedia.
Outdoor Logarithmic Antenna GSM DCS UMTS HSDPA LTE SMA 10m RF-5 Cable Broadband Directional
Model: Trans-Data ATK-ALP/LTE+SMA/10
EAN: 6931240092026 SKU: 931092025
- Wide frequency range: 800 - 3000 MHz
- Support for LTE, GSM, DCS, UMTS, and HSDPA technologies
- High energy gain up to 9 dBi providing stable coverage
- Built-in 10-meter low-loss RF-5 cable
- SMA connector compatible with most routers and modems
- Ability to operate in vertical and horizontal polarization
- DC short circuit protection for device safety
- Very simple and quick mast mounting for diameters up to 45 mm
- Durable construction resistant to changing weather conditions
- Ideal for MIMO technology (using two units)
Description
The broadband logarithmic antenna is an advanced solution dedicated to users of mobile telephony systems GSM, DCS, UMTS, HSDPA, and modern LTE networks. The device has been designed to improve signal quality in places where built-in modem antennas prove insufficient. Thanks to a wide operating range from 800 MHz to 3000 MHz, the product is extremely versatile and compatible with most telecommunications operators.
The main advantage of the presented model is a high energy gain of up to 9 dBi, which allows for a stable internet connection and improved voice call quality even at a significant distance from the base station (BTS). The directional antenna effectively reduces interference and focuses the signal beam, which translates into higher data transfer rates. It is worth noting that for full utilization of LTE and MIMO technologies, it is recommended to use two antennas – one mounted in vertical polarization and the other in horizontal.
The antenna construction is characterized by high resistance to atmospheric conditions, which guarantees longevity and failure-free operation outside buildings. The use of a high-quality 10-meter low-loss RF-5 cable allows for flexible mast mounting while maintaining minimal signal losses. The SMA connector is a standard in most home LTE routers and modems, making installation fast and intuitive. Solid attachment to a mast with a diameter of up to 45 mm ensures stability even during strong wind gusts. Choosing this antenna is a guarantee of stable coverage and comfort when working with multimedia.
Specification
Frequency range
800 MHz ... 3000 MHz (GSM / DCS / UMTS / HSDPA / LTE)
Connectors and cabling
Connector type: SMA plug; Cable type: Low-loss RF-5; Cable length: 10 meters
Energy gain
Maximum 9 dBi (scaled gain depending on the band)
Electrical parameters
Impedance: 50 Ω; Voltage Standing Wave Ratio VSWR: < 1.7; DC short: Yes (static charge protection)
Horizontal radiation pattern
Main beam width in the horizontal plane: 76 °
Vertical radiation pattern
Main beam width in the vertical plane: 66 °
Polarization
Ability to operate in vertical or horizontal polarization
Mechanical installation
Mast mounting; Maximum mast diameter: 45 mm; Log-periodic design
Operating conditions
Outdoor application; UV and corrosion resistance; Operating temperature: wide outdoor range
Physical dimensions
Width: 260 mm; Height: 180 mm; Depth: 25 mm
Device mass
Net weight: 0.31 kg (without packaging)
Standards and technologies
LTE (Long Term Evolution) up to 1 Gb/s; Compatibility with 2G, 3G, 4G LTE-A
MIMO application
2 antennas required for full LTE network performance; H/V cross mounting
Warranty
2 years (24 months)
Contents
1x Logarithmic antenna
1x 10m RF-5 cable terminated with an SMA plug
1x Set of mounting brackets for the mast
Dimensions, Weight
Product dimensions: 25 x 260 x 180 mm (D x W x H)
Package dimensions: 45 x 345 x 345 mm (D x W x H)
Product weight: 310 g
Weight with packaging: 900 g
