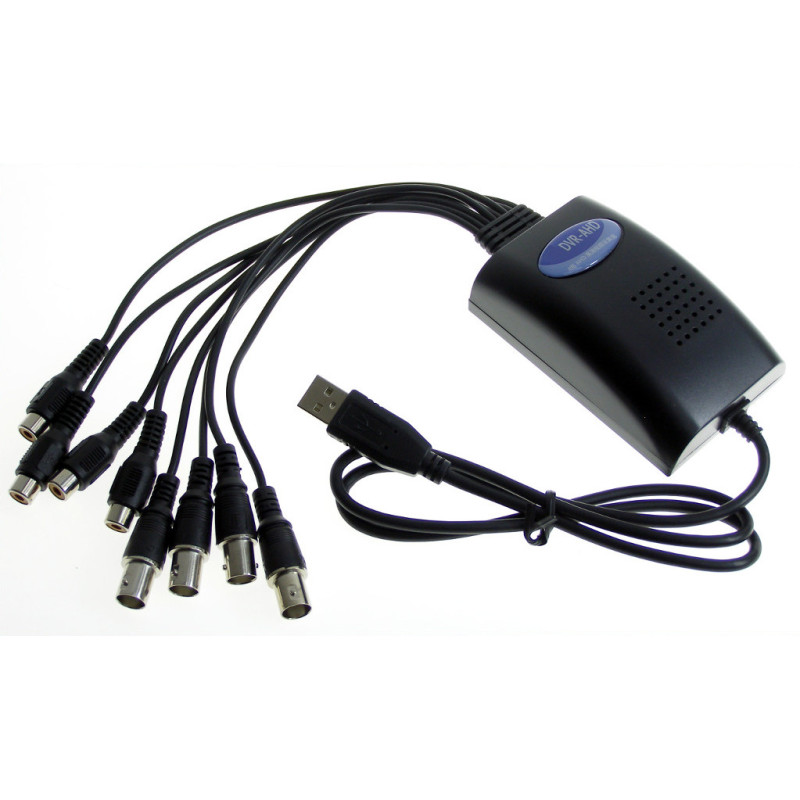

AHD 720p 1280x720 USB DVR Card 4x VIDEO 4x AUDIO 100fps Windows 7 10 iPhone Android

Model: ACTii AC3505

EAN: 6931240035054 SKU: 350536478

• The card has 4 video inputs and 4 audio inputs
• Real-time recording and preview in 720p (1280x720)
• Support for AHD 720p cameras
• Card based on a modern processor. The received image from cameras is of high quality. The chipset consumes little power and does not heat up.
• Image refresh rate for the card is 100fps for the entire DVR card, 25fps for each video channel, perfectly smooth image
• You can connect to the card via LAN or Internet, which allows you to view the image from cameras from anywhere, as well as browse recording archives.
• Recording methods: Manual, Continuous, scheduled, event-based, event-based via motion detection.
• Robust, extensive software
• Extensive, well-written modern software. It also works on Windows 7, 8, 10, 32 and 64-bit
• Image can be viewed on a mobile phone: Android, iPhone, iPad
• Support for dynamic IP address (Neostrada, Netia, cable TV internet, etc.)

Description

USB DVR card supporting AHD 720p standard cameras

Image recording in 720p resolution

4x VIDEO 4x AUDIO 100fps

Windows 7, 8, 10,

iPhone, Android

Specification

Parameters

Video inputs: 4x (BNC)

Audio inputs: 4x (RCA)

Real-time image preview

Real-time preview resolution: 720p (1280x720) at 25fps for each channel (100fps for the entire card)

Brightness, color, and other image parameter management

VIDEO mode: PAL / NTSC

USB card: YES; Standard: USB 2.0

Image recording

Recording resolution: 720p (1280x720), at 25fps for each channel (100fps for the entire card)

Brightness, color, and other image parameter management

Motion Detection and Alarm

Motion detection settings possible for each video channel separately

Motion detection zones

Alarm signal for motion detection

Recording upon motion detection

All alarm options are set separately for each camera.

Ability to send an email with an image upon motion detection

Network functions

The program allows connection to the server and real-time video preview as well as viewing of recording archives. It is possible to simultaneously display the image currently being recorded by the server from the cameras and browse recording archives. Recordings can be displayed in accelerated mode (1x, 2x... 8x). You can display recordings from one camera from different time periods simultaneously.

The client program allows controlling PTZ domes.

The client allows recording the image displayed in real-time.

The client program can establish a connection to a server with a dynamic IP address.

The client program available via web browser has the same functionality as the client program.

Software language: English

PTZ Control

The card supports all popular control standards. Possibility to define starting points with the possibility of linking them with alarm sensors, rotation speed. Possibility to define parking points for the dome and the time for which the dome is to stop.

Software

Recording mode: Manual - recording by manually turning on recording, Continuous - continuous recording for one camera or multiple cameras, Scheduled - Recording at a specified time cyclically (e.g., Monday - Friday from 10:00 to 18:00 and on Saturdays from 09:00 to 13:00). According to events from alarm sensors or motion detection. According to events - Manually set recording at a precisely specified time (e.g., from 26.12.2007 21:00 to 27.12.2007 22:00)

Image compression

H.264 (This is the best encoding used in industrial television. It allows for significant savings in hard disk space.)

Image preview

Screen division: 1, 4, 9, 16, 25, 12 video channels.

Live preview from recorded cameras.

Preview of saved video materials and BACKUP

Preview of recording archives. Searching for recordings. Browsing of recording archives is possible on several program screens simultaneously (e.g., you can browse recordings from 16 cameras simultaneously). You can increase the speed of browsing recordings (1x, 2x, ... 8x). Recordings registered from motion detection mode are marked in red (this facilitates browsing recordings).

Recordings can be saved to AVI files (available from any movie player program), take a snapshot of a video sequence to a JPG graphic file, or print video sequences.

Color settings for each camera: brightness of the recorded image, contrast, saturation, color hue (color, black and white, sepia...)

Recordings can be saved to any number of hard drives. There are no limits to just one partition. In case of disk filling, the system will automatically start overwriting old recordings or, if defined, recording to another hard drive available to the program.

The program saves events in logs. They can be viewed through the server program. Events can be sorted by type (e.g., recording from detection, signal loss from camera...) This facilitates, for example, browsing motion detection events, browsing who and when logged into the server, or connected remotely to the server.

Other card functions

Video options: Setting the quality of the recorded image. You can change the names of individual cameras, enable/disable video channels, set the fps for individual video channels.

Access to the program, settings, and the ability to turn off the program is password protected. Each user can be assigned appropriate permissions. You can grant/block permissions to: Program settings, Playback of recording archives, recording, PTZ dome control, remote access via network, the ability to turn off the program, the ability to minimize the program to the taskbar.

Automatic server program startup at system startup (option active or inactive). If the user turns off the server program, it can be set to automatically shut down the operating system (option active or inactive).

Remote preview via LAN and Internet. Supported TCP/UDP protocols. The server allows setting port numbers for communication. It is possible to connect to the server with a dynamic IP (Neostrada...)

Hardware and software requirements

Intel Celeron 2GHz or faster, PIV 1.6GHz or faster.

Graphics card: any capable of displaying an image in 800x600 resolution in 32 million colors, it can also be integrated with the motherboard.

RAM: We recommend 256MB RAM (for 4 video channels 128MB).

Operating System: Windows XP, Windows Vista, Windows 7 32 or 64-bit

Access to the image via mobile phone: YES; Android system, iPhone, iPad

Set contents

DVR Card

1x CD with software and manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 45 x 70 x 20 mm (DxWxH)

Package dimensions: 100 x 100 x 50 mm (DxWxH)

Product weight: 180 g

Weight with packaging: 230 g
