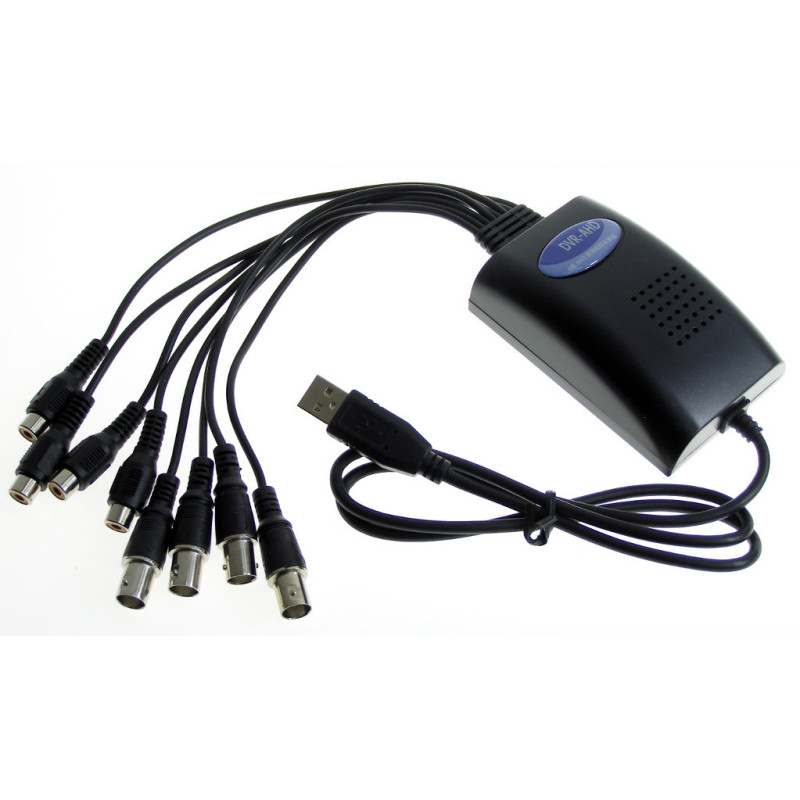

USB AHD 720p 1280x720 DVR Card 4x VIDEO 4x AUDIO 100fps Windows 7 10 iPhone Android

Model: ACTii AC3505

EAN: 6931240035054 SKU: 350536478

• The card has 4 Video inputs and 4 Audio inputs
• Real-time recording and monitoring in 720p (1280x720)
• Supports AHD 720p cameras
• The card is based on a modern processor. The received image from the cameras is of high quality. The chipset consumes little power and does not heat up.
• The refresh rate for the card is 100fps for the entire DVR card, 25fps for each video channel, perfectly smooth image
• You can connect to the card via LAN or Internet, which allows you to view the camera image from anywhere, as well as browse recording archives.
• Recording methods: Manual, Continuous, according to schedule, event-based, event-based via motion detection.
• Robust, extensive software
• Extensive, well-written modern software. It also works on Windows 7, 8, 10, 32 and 64-bit
• The image can be viewed on a mobile phone: Android, iPhone, iPad
• Supports variable IP address (Neostrada, Netia, cable TV internet, etc.)

Description

USB DVR card supporting AHD 720p standard cameras

Image recording in 720p resolution

4x VIDEO 4x AUDIO 100fps

Windows 7, 8, 10,

iPhone, Android

Specification

Parameters

Video inputs: 4x (BNC)

Audio inputs: 4x (RCA)

Real-time image monitoring

Real-time monitoring resolution: 720p (1280x720) at 25fps for each channel (100fps for the entire card)

Brightness, color, and other image parameter management

VIDEO mode: PAL / NTFS

USB card: YES; Standard: USB 2.0

Image recording

Recording resolution: 720p (1280x720), at 25fps for each channel (100fps for the entire card)

Brightness, color, and other image parameter management

Motion Detection and Alarm

Motion detection settings possible for each video channel separately

Motion detection fields

Alarm signal for motion detection

Recording upon detection

All alarm options are set separately for each camera.

Possibility to send an email with an image upon motion detection

Network functions

The program allows connection to the server and real-time video monitoring, as well as browsing recording archives. It is possible to simultaneously display the image currently being recorded by the server from the cameras and browse recording archives. Recordings can be displayed in accelerated mode (1x, 2x... 8x). You can display recordings from one camera from different time periods simultaneously.

The client program allows PTZ camera control.

The client allows recording the image displayed in real-time.

The client program can establish a connection with the server with a variable IP address.

The client program available via web browser has the same functionality as the client program.

Software language: English

PTZ control

The card supports all popular control standards. Possibility to define home positions with the option to link them to alarm sensors, rotation speeds. Possibility to define PTZ parking positions and the time the PTZ camera should stop.

Software

Recording mode: Manual - recording via manual start, Continuous - continuous recording for one camera or multiple cameras, According to schedule - Recording at a specific time cyclically (e.g., Monday - Friday from 10.00 to 18.00 and on Saturdays from 09.00 to 13.00). According to events from alarm sensors or motion detection. According to events - Manually set recording at a precisely specified time (e.g., from 26.12.2007 21.00 to 27.12.2007 22.00)

Image compression

H.264 (This is the best encoding used in industrial television. It allows for significant space savings on the hard drive.)

Image monitoring

Screen layout: 1, 4, 9, 16, 25, 12 video channels.

Live monitoring of recorded cameras.

Monitoring of saved video materials and BACKUP

Browsing recording archives. Searching for recordings. Browsing recording archives is possible on several program screens simultaneously (e.g., you can browse recordings from 16 cameras at once). You can increase the playback speed of recordings (1x, 2x, ... 8x). Recordings made in motion detection mode are marked in red (this facilitates browsing recordings).

Recordings can be saved to AVI files (accessible from any movie player program), snapshot the video sequence to a graphic JPG file, or print video sequences.

Color settings for each camera: brightness of recorded image, contrast, saturation, color hue (color, black and white, sepia...)

Recordings can be saved to any number of hard drives. There are no limits to just one partition. In case of disk space filling, the system will automatically start overwriting old recordings or, if defined, record on another hard drive available to the program.

The program saves events in logs. They can be viewed through the server program. Events can be sorted by types (e.g., recording from detection, loss of signal from the camera...) This facilitates, for example, browsing motion detection events, checking who logged into the server and when, or who connected remotely to the server.

Other card features

Video options: Setting the quality of the recorded image. You can change names of individual cameras, turn video channels on/off, set fps for individual video channels.

Access to the program, settings, and the ability to turn off the program is password protected. Each user can be assigned appropriate permissions. You can grant/block permissions to: Program settings, Playback of recording archives, Recording, PTZ control, Remote access via network, Possibility to turn off the program, Possibility to minimize the program to the taskbar.

Automatic start of the server program at system startup (option active or inactive). If the user turns off the server program, it can be set to automatically shut down the operating system (option active or inactive).

Remote monitoring via LAN and Internet. Supported protocols: TCP/UDP. The server allows setting port numbers for communication. It is possible to connect to the server with a variable IP (Neostrada...)

Hardware and software requirements

Intel Celeron 2GHZ or faster, PIV 1.6GHZ or faster.

Graphics card: any capable of displaying an image at a resolution of 800x600 in 32 million colors, can also be integrated with the motherboard.

RAM memory: We recommend 256MB RAM (128MB for 4 video channels).

Operating System: Windows XP, Windows Vista, Windows 7 32 or 64-bit

Access to the image via mobile phone: YES; System Android, iPhone, iPad

Set contents

DVR card

1x CD with software and manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 45 x 70 x 20 mm (D x W x H)

Package dimensions: 100 x 100 x 50 mm (D x W x H)

Product weight: 180 g

Weight with packaging: 230 g
