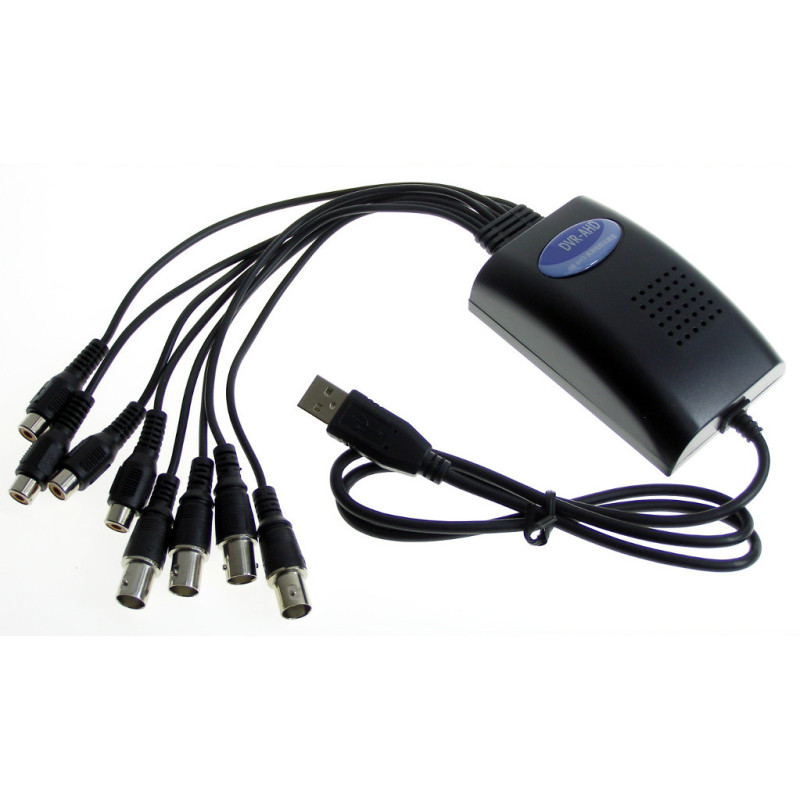

DVR USB AHD Card 720p 1280x720, 4x VIDEO 4x AUDIO 100fps, Windows 7, 10, iPhone, Android

Model: ACTii AC3505

EAN: 6931240035054 SKU: 350536478

• The card has 4 Video inputs and 4 Audio inputs
• Recording and live viewing in real-time at 720p (1280x720)
• Support for AHD 720p cameras
• The card is based on a modern processor. The received image from cameras is of high quality. The chipset consumes little power and does not overheat.
• Image refresh rate for the card is 100fps for the entire DVR card, 25fps for each video channel, perfectly smooth image
• You can connect to the card via LAN or the Internet, which allows you to watch the image from cameras from anywhere, as well as browse recording archives.
• Recording methods: Manual, Continuous, scheduled, by events, event-based via motion detection.
• Robust and extensive software
• Extensive, well-written modern software. Also works under Windows 7, 8, 10, 32 and 64-bit
• The image can be viewed on a mobile phone: Android, iPhone, iPad
• Support for dynamic IP address (Neostrada, Netia, cable TV internet, etc.)

Description

DVR USB card supporting AHD 720p standard cameras

Image recording at 720p resolution

4x VIDEO 4x AUDIO 100fps

Windows 7, 8, 10,

iPhone, Android

Specification

Parameters

Video inputs: 4x (BNC)

Audio inputs: 4x (RCA )

Live view in real-time

Live view resolution: 720p (1280x720) at 25fps for each channel (100fps for the entire card)

Management of brightness, color, and other image parameters

VIDEO mode: PAL / NTSC

USB card: YES; Standard: USB 2.0

Image recording

Recording resolution: 720p (1280x720), at 25fps for each channel (100fps for the entire card)

Management of brightness, color, and other image parameters

Motion Detection and Alarm

Motion detection settings possible for each video channel separately

Motion detection fields

Alarm signal for motion detection

Recording upon detection

All alarm options are set separately for each camera.

Ability to send an email with an image after motion detection

Network functions

The program allows connection to the server and live video viewing as well as browsing recording archives. It is possible to simultaneously display the image currently being recorded by the server from cameras and browse recording archives. Recordings can be displayed in fast-forward mode (1x, 2x... 8x). It is possible to display recordings from one camera from different time periods simultaneously.

The client program allows control of PTZ cameras.

The client allows recording of the image displayed in real-time.

The client program can establish a connection with a server with a dynamic IP address.

The client program available through a web browser has the same functionality as the client software.

Software language: English

PTZ Control

The card supports all popular control standards. Ability to define home positions with the option to link them with alarm sensors, rotation speed. Ability to define park positions for the dome camera and the time for which the dome should stop.

Software

Recording mode: Manual - recording by manually turning on recording, Continuous - continuous recording for one camera or many cameras, Scheduled - Recording at a specified time cyclically (e.g., Monday - Friday from 10.00 to 18.00 and on Saturdays from 09.00 to 13.00). By events from alarm sensors or motion detection. By events - Manually set recording at a precisely specified time (e.g., from 26.12.2007 21.00 to 27.12.2007 22.00)

Image compression

H.264 (This is the best encoding used in CCTV. It allows for significant savings in hard disk space.)

Image preview

Screen layout: 1, 4, 9, 16, 25, 12 video channels.

Live preview from recorded cameras.

Preview of recorded video materials and BACKUP

Browsing recording archives. Searching for recordings. Browsing recording archives is possible on several program screens simultaneously (e.g., you can browse recordings from 16 cameras at once). You can increase the playback speed (1x, 2x, ... 8x). Recordings made in motion detection mode are marked in red (this facilitates browsing recordings).

Recordings can be saved to AVI files (accessible from any movie player software), take a video sequence snapshot to a JPG graphic file, or print a video sequence.

Color settings for each camera: brightness of the recorded image, contrast, saturation, color hue (color, black and white, sepia...)

Recordings can be saved to any number of hard drives. There are no limitations to just one partition. In case of disk space exhaustion, the system will automatically start overwriting old recordings or, if defined, record on another hard drive available to the program.

The program saves events in logs. They can be viewed through the server program. Events can be sorted by types (e.g., recording from detection, loss of signal from the camera...) This makes it easier, for example, to browse motion detection events, browse who and when logged into the server, or connected remotely to the server.

Other card functions

Video options: Setting the quality of the recorded image. You can change the names of individual cameras, enable/disable video channels, set the fps for individual video channels.

Access to the program, settings, and the ability to turn off the program are password protected. Each user can be assigned appropriate permissions. You can grant/block permissions for: Program settings, Playback of recording archives, Recording, PTZ camera control, Remote access via network, Ability to turn off the program, Ability to minimize the program to the taskbar.

Automatic launch of the server program at system startup (option enabled or disabled). If the user turns off the server program, it can be set so that the operating system automatically shuts down (option enabled or disabled).

Remote preview via LAN and Internet. Supported protocols TCP/UDP. The server allows setting port numbers for communication. It is possible to connect to the server with a dynamic IP (Neostrada ...).

Hardware and software requirements

Intel Celeron 2GHZ or faster, PIV 1.6GHZ or faster.

Graphics card: any capable of displaying an image at a resolution of 800x600 in 32 million colors, can also be integrated with the motherboard.

RAM memory: We recommend 256MB RAM (for 4 video channels 128MB).

Operating System: Windows XP, Windows Vista, Windows 7 32 or 64-bit

Access to the image via mobile phone: YES; System Android, iPhone, iPad

Set contents

DVR card

1x CD with software and manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 45 x 70 x 20 mm (D x W x H)

Packaging dimensions: 100 x 100 x 50 mm (D x W x H)

Product weight: 180 g

Weight with packaging: 230 g
