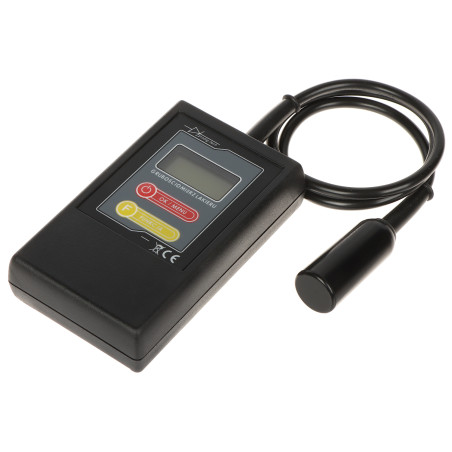

Precise Paint Thickness Gauge with Probe on Cable LCD Display 100 Measurement Memory PRODIG-TECH GL-1S
zł222.94
Tax included
The professional GL-1S paint thickness gauge is an indispensable diagnostic tool that allows for instant and precise inspection of a vehicle's bodywork history. Thanks to the probe on a flexible 60 cm cable, the user can easily reach difficult spots, such as door jambs, wheel arches, or rocker panels, which is crucial during a thorough vehicle inspection before purchase.
The device is designed for use on steel and galvanized steel sheets, offering high measurement resolution of 1 µm or 10 µm (user-configurable). One of the greatest advantages of the GL-1S model is its built-in memory capable of storing up to 100 of the latest measurements, allowing for calm analysis of results after completing the inspection of the entire body.
The gauge is exceptionally easy to operate due to its intuitive menu and backlit LCD display, which provides excellent readability even in difficult lighting conditions, such as in an unlit garage or after dark. The calibration (zeroing) function using the included plate ensures the device always shows the correct value, eliminating measurement errors resulting from the passage of time or ambient temperature changes.
PRODUCT ADVANTAGES:
- Flexible probe on a cable (60 cm) increasing range and comfort of work.
- Support for steel and galvanized steel sheets – a standard in the modern automotive industry.
- Very large measurement range up to 1100 µm covering a wide spectrum of paint and filler thicknesses.
- Automatic shut-off function after 3 minutes of inactivity, significantly extending battery life.
- Solid Polish production by the PRODIG-TECH brand ensuring high manufacturing quality and durability.
Precise Paint Thickness Gauge with Probe on Cable LCD Display 100 Measurement Memory
Model: PRODIG-TECH GL-1S
EAN: 6931240052693 SKU: 931052698
- Measurement on steel and galvanized steel sheets
- Measuring probe on a 60 cm cable
- Selectable measurement resolution: 1 µm or 10 µm
- Internal memory for the last 100 measurements
- Backlit LCD display for ease of use in low light
- Device calibration (zeroing) function - calibration plate included
- Intuitive menu operated via function buttons
- Battery level indicator
- Automatic shut-off after 3 minutes of inactivity
- Polish product with full service support
Description
The professional GL-1S paint thickness gauge is an indispensable diagnostic tool that allows for instant and precise inspection of a vehicle's bodywork history. Thanks to the probe on a flexible 60 cm cable, the user can easily reach difficult spots, such as door jambs, wheel arches, or rocker panels, which is crucial during a thorough vehicle inspection before purchase.
The device is designed for use on steel and galvanized steel sheets, offering high measurement resolution of 1 µm or 10 µm (user-configurable). One of the greatest advantages of the GL-1S model is its built-in memory capable of storing up to 100 of the latest measurements, allowing for calm analysis of results after completing the inspection of the entire body.
The gauge is exceptionally easy to operate due to its intuitive menu and backlit LCD display, which provides excellent readability even in difficult lighting conditions, such as in an unlit garage or after dark. The calibration (zeroing) function using the included plate ensures the device always shows the correct value, eliminating measurement errors resulting from the passage of time or ambient temperature changes.
PRODUCT ADVANTAGES:
- Flexible probe on a cable (60 cm) increasing range and comfort of work.
- Support for steel and galvanized steel sheets – a standard in the modern automotive industry.
- Very large measurement range up to 1100 µm covering a wide spectrum of paint and filler thicknesses.
- Automatic shut-off function after 3 minutes of inactivity, significantly extending battery life.
- Solid Polish production by the PRODIG-TECH brand ensuring high manufacturing quality and durability.
Specification
Purpose and application
Device intended for precise measurement of paint layer thickness on substrates made of steel sheet and galvanized steel sheet. Perfect for paint coating diagnostics in the automotive sector.
Probe type
Wired probe placed on a flexible 60 cm cable. This design allows for stable measurement in hard-to-reach places where traditional gauges with a built-in probe may not reach.
Measurement resolution
User-selectable via the device menu: 1 µm (micrometer) or 10 µm. This allows for adjusting precision to the needs of a quick review or detailed analysis.
Measurement range
Wide operating range from 0 µm to 1100 µm. Allows for the detection of both original paint and thick layers of repair filler.
Results memory
Built-in non-volatile memory allowing storage of up to 100 individual measurements. Data is preserved even after the device is turned off.
User interface
Clear LCD display with backlight function. Operation is handled using ergonomic buttons: ON/OFF/MENU and a dedicated function button.
Calibration and service
The device has a zeroing function used for calibrating the gauge. A special reference plate is included, allowing for self-preparation of the tool for work.
Power management
9V battery powered. The device is equipped with an energy-saving system that automatically turns off the gauge after 3 minutes of inactivity. A battery level indicator is available on the screen.
Power parameters
9V battery, common 6F22 type or 6LR61 alkaline. The battery is included in the factory set.
Mechanical construction
Lightweight, compact housing made of durable plastic. Main device dimensions are 110 x 66 x 26 mm. Net weight is approximately 228 grams.
Internal software
The gauge software has been optimized for response speed and measurement stability. The system interface is fully in Polish, which significantly facilitates navigation through settings such as changing measurement resolution or reviewing the history of saved results. System logic allows for quick zeroing of the device before each use, which is key to maintaining result repeatability in various weather conditions. The system also monitors battery voltage in real-time, informing the user of the need for replacement via an icon on the LCD panel.
Operating and storage conditions
Device adapted for work in standard workshop and outdoor conditions. Resistant to typical temperature fluctuations encountered during vehicle inspections outdoors.
Menu language
Polish
Manufacturer warranty
2 years (24 months)
Content
1x GL-1S paint thickness gauge
1x Probe on cable (integrated)
1x Calibration (zeroing) plate
1x 9V 6F22 battery
1x User manual in Polish
Dimensions, Weight
Product dimensions: 26 x 66 x 110 mm (D x W x H)
Packaging dimensions: 50 x 140 x 200 mm (D x W x H)
Product weight: 228 g
Weight with packaging: 322 g
