- New

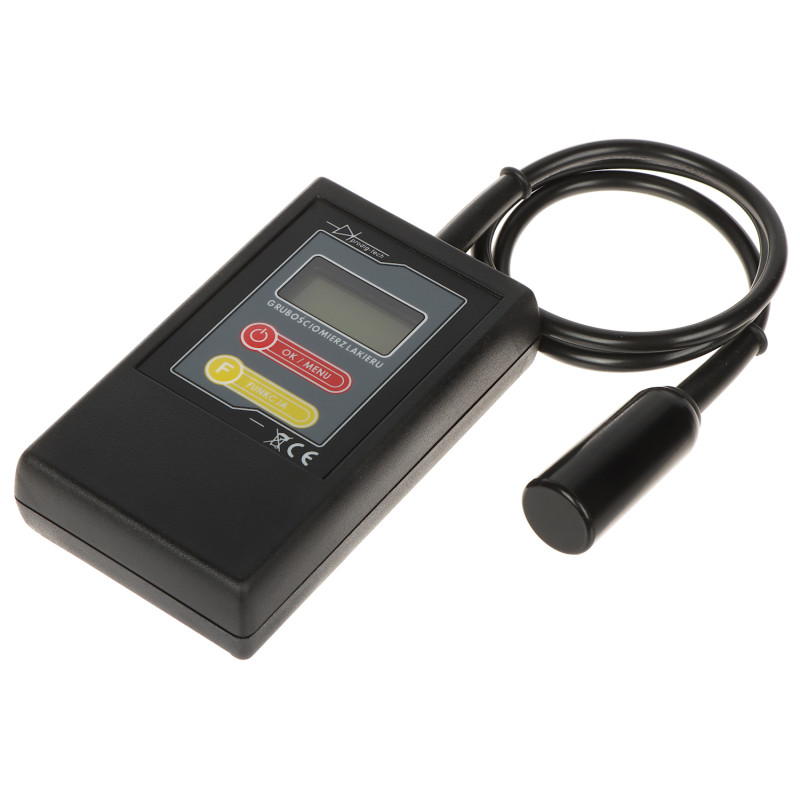

Precision Paint Thickness Gauge Probe on Cable LCD Display 100 Measurement Memory SEO PRODIG-TECH GL-1S
zł222.94
Tax included
The professional GL-1S paint thickness gauge is an indispensable diagnostic tool that allows for an instantaneous and precise check of a vehicle's bodywork history. Thanks to the use of a probe on a 60 cm flexible cable, the user can easily reach hard-to-access places, such as engine bays, wheel arches, or door sills, which is crucial when performing a thorough inspection of a car before purchase.
The device has been designed for work on steel and galvanized steel sheets, offering a high measurement resolution of 1 µm or 10 µm (user-configurable). One of the greatest advantages of the GL-1S model is its built-in memory capable of saving up to the last 100 measurements, which allows for a calm analysis of the results after finishing the inspection of the entire bodywork.
The gauge is characterized by extreme ease of use thanks to an intuitive menu and a backlit LCD display, which ensures excellent readability even in difficult lighting conditions, for example, in an unlit garage or after dark. The calibration (zeroing) function using the included plate ensures that the device will always indicate the correct value, eliminating measurement errors resulting from the passage of time or ambient temperature changes.
PRODUCT ADVANTAGES:
- Flexible probe on a cable (60 cm) increasing range and working comfort.
- Support for steel and galvanized steel sheets – a standard in the modern automotive industry.
- Very large measuring range up to 1100 µm covering a wide spectrum of paint and filler thicknesses.
- Automatic shut-off function after 3 minutes of inactivity, which significantly extends battery life.
- Solid Polish production by the PRODIG-TECH brand ensuring high quality of workmanship and durability.
Precision Paint Thickness Gauge Probe on Cable LCD Display 100 Measurement Memory SEO
Model: PRODIG-TECH GL-1S
EAN: 6931240052693 SKU: 931052698
- Measurement on steel and galvanized steel sheets
- Measuring probe placed on a 60 cm long cable
- Selectable measurement resolution: 1 µm or 10 µm
- Internal memory for the last 100 measurements
- Backlit LCD display facilitating work in the dark
- Zeroing (calibration) function of the device - plate included
- Intuitive menu operated via function buttons
- Battery level indicator
- Automatic shut-off after 3 minutes of inactivity
- Polish product with full service support
Description
The professional GL-1S paint thickness gauge is an indispensable diagnostic tool that allows for an instantaneous and precise check of a vehicle's bodywork history. Thanks to the use of a probe on a 60 cm flexible cable, the user can easily reach hard-to-access places, such as engine bays, wheel arches, or door sills, which is crucial when performing a thorough inspection of a car before purchase.
The device has been designed for work on steel and galvanized steel sheets, offering a high measurement resolution of 1 µm or 10 µm (user-configurable). One of the greatest advantages of the GL-1S model is its built-in memory capable of saving up to the last 100 measurements, which allows for a calm analysis of the results after finishing the inspection of the entire bodywork.
The gauge is characterized by extreme ease of use thanks to an intuitive menu and a backlit LCD display, which ensures excellent readability even in difficult lighting conditions, for example, in an unlit garage or after dark. The calibration (zeroing) function using the included plate ensures that the device will always indicate the correct value, eliminating measurement errors resulting from the passage of time or ambient temperature changes.
PRODUCT ADVANTAGES:
- Flexible probe on a cable (60 cm) increasing range and working comfort.
- Support for steel and galvanized steel sheets – a standard in the modern automotive industry.
- Very large measuring range up to 1100 µm covering a wide spectrum of paint and filler thicknesses.
- Automatic shut-off function after 3 minutes of inactivity, which significantly extends battery life.
- Solid Polish production by the PRODIG-TECH brand ensuring high quality of workmanship and durability.
Specification
Purpose and application
Device designed for precise measurement of paint layer thickness on substrates made of steel sheet and galvanized steel sheet. Perfect for diagnostic of paint coatings in the automotive industry.
Probe type
Wired probe placed on a 60 cm flexible cable. This design allows for stable measurement in hard-to-reach places where traditional gauges with a built-in probe may not reach.
Measurement resolution
User-selectable via the device menu: 1 µm (micrometer) or 10 µm. This allows for adjusting precision to the needs of a quick review or detailed analysis.
Measuring range
Wide operating range from 0 µm to 1100 µm. Allows for the detection of both original paint and thick layers of repair filler.
Results memory
Built-in non-volatile memory allowing storage of up to 100 individual measurements. Data is retained even after turning off the device.
User interface
Clear LCD display with backlight function. Operation is carried out using ergonomic buttons: ON/OFF/MENU and a dedicated function button.
Calibration and service
The device has a zeroing function used for calibrating the gauge. The set includes a special calibration plate allowing for self-preparation of the instrument for work.
Energy management
9V battery power supply. The device is equipped with an energy-saving system that automatically turns off the gauge after 3 minutes of inactivity. A battery status indicator is available on the screen.
Power parameters
9V battery, popular 6F22 type or 6LR61 alkaline. The battery is included in the factory set.
Mechanical construction
Lightweight, compact housing made of durable plastic. The dimensions of the main device are 110 x 66 x 26 mm. Net weight is approximately 228 grams.
Internal software
The gauge software has been optimized for speed of response and measurement stability. The system interface is fully in Polish, which significantly facilitates navigation through settings such as changing measurement resolution or browsing the history of saved results. System logic allows for quick zeroing of the device before each use, which is crucial for maintaining result repeatability in various atmospheric conditions. The system also monitors battery voltage in real-time, informing the user about the need for replacement with an icon on the LCD panel.
Working and storage conditions
Device adapted for work in standard workshop and outdoor conditions. Resistant to typical temperature fluctuations encountered during outdoor vehicle inspections.
Menu language
Polish
Manufacturer warranty
2 years (24 months)
Contents
1x GL-1S paint thickness gauge
1x Probe on cable (integrated)
1x Plate for calibration (zeroing)
1x 9V 6F22 battery
1x User manual in Polish
Dimensions, Weight
Product dimensions: 26 x 66 x 110 mm (D x W x H)
Packaging dimensions: 50 x 140 x 200 mm (D x W x H)
Product weight: 228 g
Weight with packaging: 322 g
