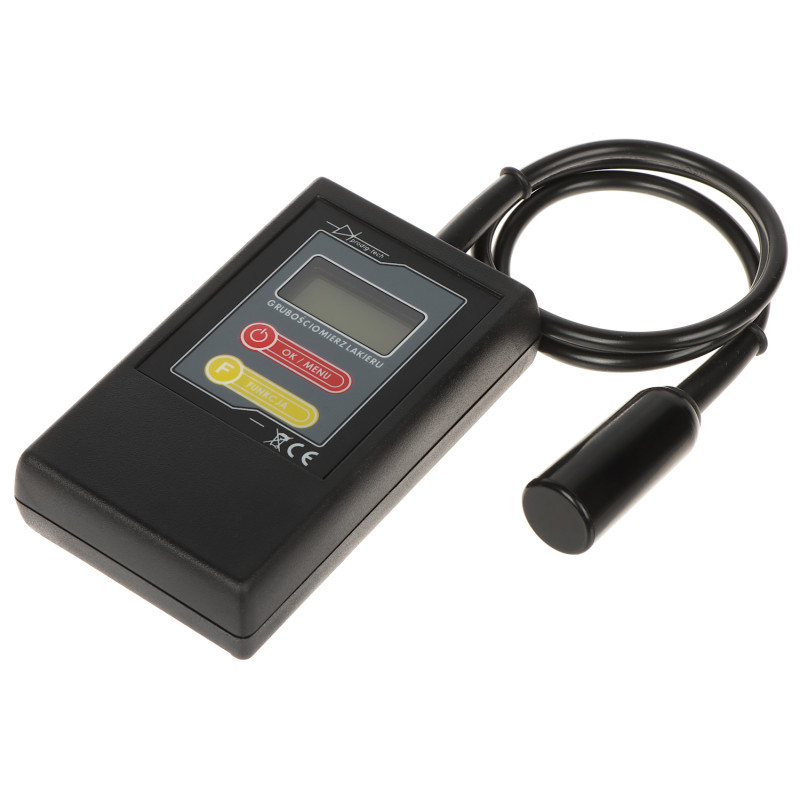

Precision Paint Thickness Gauge Wired Probe LCD Display 100 Measurement Memory PRODIG-TECH GL-1S
zł 222,94
Tax included
The professional GL-1S paint thickness gauge is an indispensable diagnostic tool that allows for instant and precise inspection of a vehicle's bodywork history. Thanks to the probe on a flexible 60 cm cable, the user can easily reach hard-to-access areas such as engine bays, wheel arches, or sills, which is crucial for a thorough car inspection before purchase.
The device is designed for use on steel and galvanized steel sheets, offering high measurement resolution at 1 µm or 10 µm (user-configurable). One of the greatest advantages of the GL-1S model is its built-in memory, which can store up to 100 of the last measurements, allowing for a calm analysis of results after completing the inspection of the entire bodywork.
The gauge features exceptional ease of use thanks to an intuitive menu and a backlit LCD display, which provides excellent readability even in difficult lighting conditions, such as in an unlit garage or after dark. The calibration (zeroing) function using the included plate ensures that the device will always indicate the correct value, eliminating measurement errors resulting from the passage of time or ambient temperature changes.
PRODUCT ADVANTAGES:
- Flexible probe on a cable (60 cm) increasing reach and work comfort.
- Support for steel and galvanized sheets – standard in the modern automotive industry.
- Very large measuring range up to 1100 µm covering a wide spectrum of paint and putty thicknesses.
- Automatic shut-off function after 3 minutes of inactivity, which significantly extends battery life.
- Solid Polish production by the PRODIG-TECH brand ensuring high manufacturing quality and durability.
Precision Paint Thickness Gauge Wired Probe LCD Display 100 Measurement Memory
Model: PRODIG-TECH GL-1S
EAN: 6931240052693 SKU: 931052698
- Measurement on steel and galvanized steel sheets
- Measurement probe on a 60 cm cable
- Selectable measurement resolution: 1 µm or 10 µm
- Internal memory for the last 100 measurements
- Backlit LCD display for ease of use in dark environments
- Device zeroing (calibration) function - calibration plate included
- Intuitive menu operated via functional buttons
- Battery level indicator
- Automatic shut-off after 3 minutes of inactivity
- Polish product with full service support
Description
The professional GL-1S paint thickness gauge is an indispensable diagnostic tool that allows for instant and precise inspection of a vehicle's bodywork history. Thanks to the probe on a flexible 60 cm cable, the user can easily reach hard-to-access areas such as engine bays, wheel arches, or sills, which is crucial for a thorough car inspection before purchase.
The device is designed for use on steel and galvanized steel sheets, offering high measurement resolution at 1 µm or 10 µm (user-configurable). One of the greatest advantages of the GL-1S model is its built-in memory, which can store up to 100 of the last measurements, allowing for a calm analysis of results after completing the inspection of the entire bodywork.
The gauge features exceptional ease of use thanks to an intuitive menu and a backlit LCD display, which provides excellent readability even in difficult lighting conditions, such as in an unlit garage or after dark. The calibration (zeroing) function using the included plate ensures that the device will always indicate the correct value, eliminating measurement errors resulting from the passage of time or ambient temperature changes.
PRODUCT ADVANTAGES:
- Flexible probe on a cable (60 cm) increasing reach and work comfort.
- Support for steel and galvanized sheets – standard in the modern automotive industry.
- Very large measuring range up to 1100 µm covering a wide spectrum of paint and putty thicknesses.
- Automatic shut-off function after 3 minutes of inactivity, which significantly extends battery life.
- Solid Polish production by the PRODIG-TECH brand ensuring high manufacturing quality and durability.
Specification
Purpose and application
Device designed for precise measurement of paint layer thickness on substrates made of steel sheet and galvanized steel sheet. Perfect for automotive paint coating diagnostics.
Probe type
Wired probe placed on a flexible 60 cm cable. This design allows for stable measurement in hard-to-reach places where traditional gauges with a built-in probe may not reach.
Measurement resolution
Possibility for the user to select in the device menu: 1 µm (micrometer) or 10 µm. This allows for adjusting precision to the needs of quick review or accurate analysis.
Measuring range
Wide operating range from 0 µm to 1100 µm. Allows for detecting both original paint and thick layers of repair putty.
Measurement memory
Built-in non-volatile memory allowing storage of up to 100 individual measurements. Data is preserved even after switching off the device.
User interface
Clear LCD display with backlight function. Operation is carried out using ergonomic buttons: ON/OFF/MENU and a dedicated functional button.
Calibration and service
The device has a zeroing function used for calibrating the gauge. The kit includes a special reference plate allowing for self-preparation of the instrument for work.
Power management
9V battery power supply. The device is equipped with an energy-saving system that automatically turns off the gauge after 3 minutes of inactivity. A battery status indicator is available on the screen.
Power parameters
9V battery, popular type 6F22 or alkaline 6LR61. Battery included in the factory set.
Mechanical construction
Lightweight, compact housing made of durable plastic. The dimensions of the main device are 110 x 66 x 26 mm. Net weight is approximately 228 grams.
Internal software
The gauge software has been optimized for speed of response and measurement stability. The system interface is fully in Polish, which significantly facilitates navigation through settings such as changing measurement resolution or reviewing the history of stored results. System logic allows for quick zeroing of the device before each use, which is key for maintaining repeatability of results under different atmospheric conditions. The system also monitors battery voltage in real-time, informing the user about the need for replacement with an icon on the LCD panel.
Operating and storage conditions
Device adapted for work in standard workshop and outdoor conditions. Resistant to typical temperature fluctuations encountered during vehicle inspections outdoors.
Menu language
Polish
Manufacturer warranty
2 years (24 months)
Contents
1x Paint thickness gauge GL-1S
1x Wired probe (integrated)
1x Calibration plate (zeroing)
1x 9V 6F22 battery
1x User manual in Polish
Dimensions, Weight
Product dimensions: 26 x 66 x 110 mm (D x W x H)
Package dimensions: 50 x 140 x 200 mm (D x W x H)
Product weight: 228 g
Weight with package: 322 g
