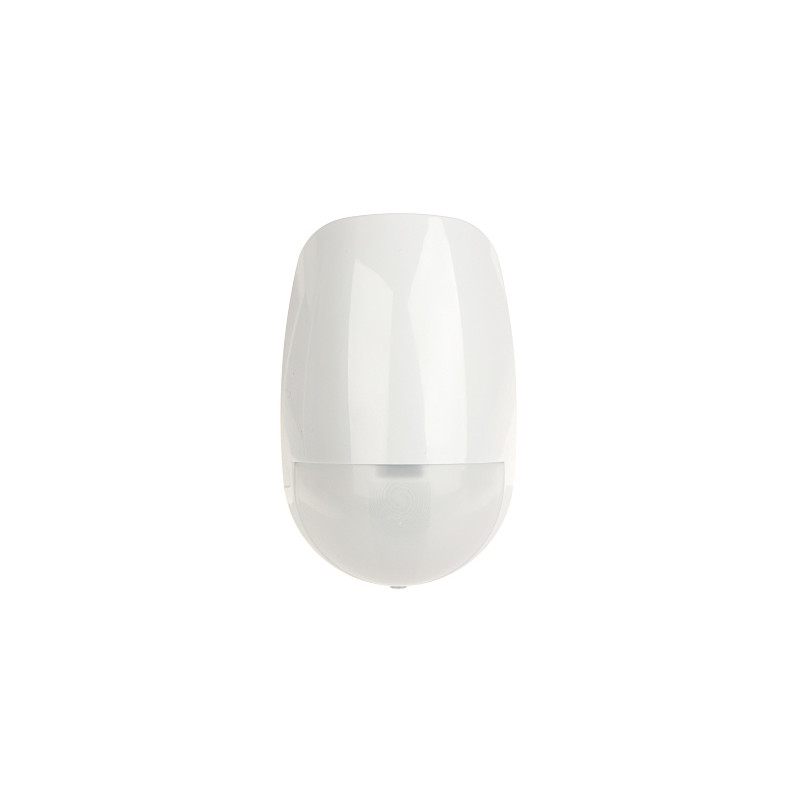

Wireless Dual PIR+MW Motion Detector AX PRO 12m Pet Immune Digital Detection Hikvision DS-PDD12P-EG2-WE
zł589.17
Tax included
The wireless dual detector DS-PDD12P-EG2-WE is an advanced detection device dedicated to working with the modern Hikvision AX PRO alarm system. Thanks to the innovative combination of two detection technologies: Passive Infrared (PIR) and Microwave (MW), the device guarantees the highest level of precision in intruder detection while minimizing the risk of false alarms caused by sudden temperature changes or air currents. It is an ideal solution for rooms with challenging environmental conditions, such as kitchens, garages, or air-conditioned rooms.
One of the key advantages of the detector is its pet immunity function for domestic animals weighing up to 30 kg. This allows dogs or cats to move freely in the surveillance zone without fear of triggering an alarm. The device features a detection range of up to 12 meters with a wide viewing angle of nearly 86 degrees. The Smart Environmental Control (SEC) system combined with digital signal processing and advanced 3D optics allows for instantaneous signal analysis and distinguishes real threats from background interference. The radio transmission security is ensured by the Tri-X protocol, which utilizes AES-128 encryption and anti-jamming mechanisms, making the system extremely resistant to radio sabotage attempts. Long battery life (up to 5 years) makes operation trouble-free and cost-effective. The entire unit is enclosed in an aesthetic white housing that discreetly blends into the decor of any interior.
Wireless Dual PIR+MW Motion Detector AX PRO 12m Pet Immune Digital Detection
Model: Hikvision DS-PDD12P-EG2-WE
EAN: 6931240032053 SKU: 931032058
- Advanced dual technology PIR + Microwave (MW)
- Full compatibility with Hikvision AX PRO wireless systems
- High immunity to false alarms thanks to SEC digital processing
- Pet immunity for animals up to 30 kg
- Extended radio communication range up to 1600 meters
- AES-128 encrypted data transmission protecting against signal interception
- Long battery life ensuring up to 5 years of continuous operation
- Two-way radio communication with Tri-X protocol
- Integrated tamper protection
- Fast and easy configuration via QR codes and mobile application
Description
The wireless dual detector DS-PDD12P-EG2-WE is an advanced detection device dedicated to working with the modern Hikvision AX PRO alarm system. Thanks to the innovative combination of two detection technologies: Passive Infrared (PIR) and Microwave (MW), the device guarantees the highest level of precision in intruder detection while minimizing the risk of false alarms caused by sudden temperature changes or air currents. It is an ideal solution for rooms with challenging environmental conditions, such as kitchens, garages, or air-conditioned rooms.
One of the key advantages of the detector is its pet immunity function for domestic animals weighing up to 30 kg. This allows dogs or cats to move freely in the surveillance zone without fear of triggering an alarm. The device features a detection range of up to 12 meters with a wide viewing angle of nearly 86 degrees. The Smart Environmental Control (SEC) system combined with digital signal processing and advanced 3D optics allows for instantaneous signal analysis and distinguishes real threats from background interference. The radio transmission security is ensured by the Tri-X protocol, which utilizes AES-128 encryption and anti-jamming mechanisms, making the system extremely resistant to radio sabotage attempts. Long battery life (up to 5 years) makes operation trouble-free and cost-effective. The entire unit is enclosed in an aesthetic white housing that discreetly blends into the decor of any interior.
Specification
Compatibility
HIKVISION AX PRO Wireless Alarm Systems
Frequency Band
868 MHz
Radio Communication Range
maximum 1600 m in open space
PIR Detector Range
12 m / 85.9 °
Microwave Detection
24 GHz based on Doppler effect
Power Supply
2 x CR123A 3 V Lithium Battery (included)
Battery Runtime
Approx. 5 years in power saving mode
Detectable Motion Speed
0.3 ... 2 m/s
Recommended Installation Height
1.8 ... 2.4 m
Pet Immunity
Less than or equal to 30 kg
Security Grade
Grade 2
Digital Signal Processing
SEC (Smart Environmental Control), 3D Optics, Advanced Temperature Compensation
Tamper Protection
Detection of detachment from the wall and opening of the housing (Tamper)
Transmission Security
Two-way communication, AES-128 encryption, Tri-X protocol, Anti-jamming protection (Frequency Hopping)
Software and Interface
The device works fully with the AX PRO ecosystem, managed via the Hik-Connect mobile application (available for Android and iOS) and professional iVMS-4200 client software. This software enables comprehensive remote configuration of all detection parameters, real-time battery status monitoring, checking the current temperature at the installation site, and verifying radio signal quality. Thanks to an advanced interface, the user receives instant PUSH notifications regarding motion detection, tamper alarms, and low energy levels. The Tri-X Wireless system ensures secure, two-way communication with a 'Frequency Hopping' feature, which automatically changes radio channels if jamming of the 868MHz band is detected. Intuitive device pairing is performed by simply scanning a QR code, which significantly reduces the time required for installation and alarm system configuration.
Operating Conditions
Temperature: -10 °C ... 55 °C; Humidity: 10 % ... 90 %
Color
White
SAP Code
314300071
Contents
1x Dual Detector
2x CR123A Lithium Battery
1x Mounting Accessories
Dimensions, Weight
Product dimensions: 49 x 66 x 103 mm (Depth x Width x Height)
Packaging dimensions: 57 x 72 x 105 mm (Depth x Width x Height)
Product weight: 140 g
Weight with packaging: 176 g
