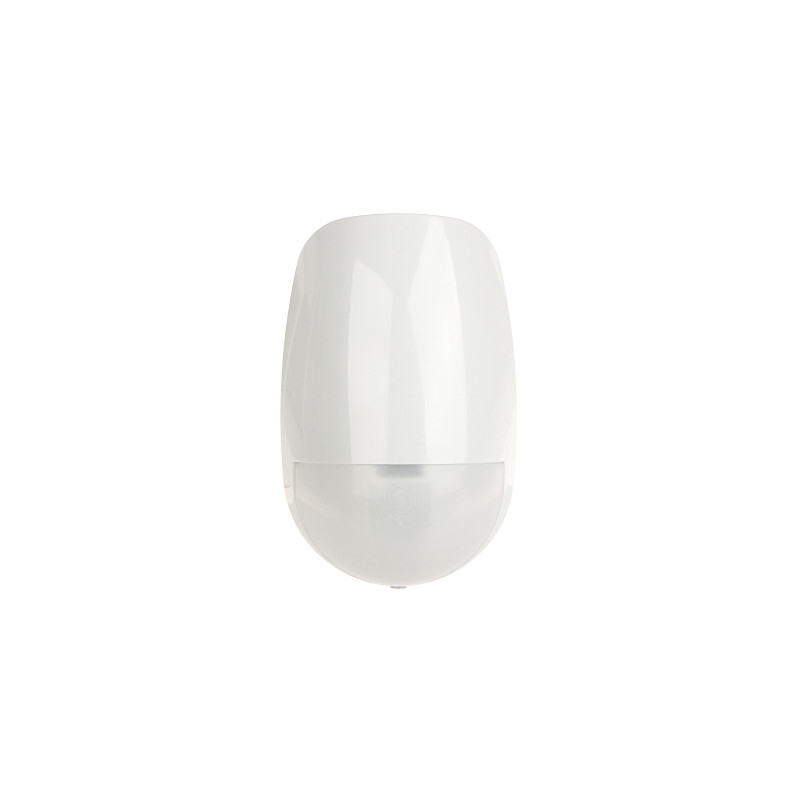

AX PRO Dual PIR and Microwave Wireless Motion Detector 12m Pet Immune Digital Detection Hikvision DS-PDD12P-EG2-WE
zł589.17
Tax included
The DS-PDD12P-EG2-WE dual wireless detector is an advanced detection device designed for use in modern Hikvision AX PRO alarm systems. Thanks to the innovative combination of two detection technologies, Passive Infrared (PIR) and Microwave (MW), the device ensures the highest level of precision in intruder detection while minimizing the risk of false alarms caused by sudden temperature changes or air currents. It is an ideal solution for challenging environmental conditions, such as kitchens, garages, or air-conditioned rooms.
One of the key advantages of this detector is its pet immunity for animals weighing up to 30 kg. This allows dogs or cats to move freely within the monitored zone without the risk of triggering an alarm. The device features a detection range of up to 12 meters with a wide viewing angle of almost 86 degrees. The Smart Environmental Control (SEC) system, combined with digital signal processing and advanced 3D optics, allows for instantaneous signal analysis to distinguish real threats from background noise. Wireless transmission security is provided by the Tri-X protocol, which uses AES-128 encryption and anti-jamming mechanisms, making the system highly resistant to radio sabotage attempts. A long battery life (up to 5 years) makes operation trouble-free and cost-effective. The entire unit is housed in an aesthetic white casing that discreetly blends into any interior decor.
AX PRO Dual PIR and Microwave Wireless Motion Detector 12m Pet Immune Digital Detection
Model: Hikvision DS-PDD12P-EG2-WE
EAN: 6931240032053 SKU: 931032058
- Advanced dual technology: PIR + Microwave (MW)
- Full compatibility with Hikvision AX PRO wireless systems
- High immunity to false alarms due to digital SEC processing
- Pet immune up to 30 kg
- Extended wireless communication range up to 1600 meters
- AES-128 encrypted data transmission preventing signal interception
- Long battery life providing up to 5 years of continuous operation
- Two-way wireless communication via Tri-X protocol
- Integrated tamper protection
- Quick and easy configuration via QR codes and mobile application
Description
The DS-PDD12P-EG2-WE dual wireless detector is an advanced detection device designed for use in modern Hikvision AX PRO alarm systems. Thanks to the innovative combination of two detection technologies, Passive Infrared (PIR) and Microwave (MW), the device ensures the highest level of precision in intruder detection while minimizing the risk of false alarms caused by sudden temperature changes or air currents. It is an ideal solution for challenging environmental conditions, such as kitchens, garages, or air-conditioned rooms.
One of the key advantages of this detector is its pet immunity for animals weighing up to 30 kg. This allows dogs or cats to move freely within the monitored zone without the risk of triggering an alarm. The device features a detection range of up to 12 meters with a wide viewing angle of almost 86 degrees. The Smart Environmental Control (SEC) system, combined with digital signal processing and advanced 3D optics, allows for instantaneous signal analysis to distinguish real threats from background noise. Wireless transmission security is provided by the Tri-X protocol, which uses AES-128 encryption and anti-jamming mechanisms, making the system highly resistant to radio sabotage attempts. A long battery life (up to 5 years) makes operation trouble-free and cost-effective. The entire unit is housed in an aesthetic white casing that discreetly blends into any interior decor.
Specification
Compatibility
HIKVISION AX PRO Wireless Alarm Systems
Frequency Band
868 MHz
Wireless Communication Range
Maximum 1600 m in open space
PIR Detection Range
12 m / 85.9 °
Microwave Detection
24 GHz based on Doppler effect
Power Supply
2 x CR123A 3 V Lithium Battery (included)
Battery Life
Approximately 5 years in power-saving mode
Detectable Motion Speed
0.3 ... 2 m/s
Recommended Installation Height
1.8 ... 2.4 m
Pet Immunity
Less than or equal to 30 kg
Security Grade
Grade 2
Digital Signal Processing
SEC (Smart Environmental Control), 3D Optics, Advanced Temperature Compensation
Tamper Protection
Detection of detachment from the surface and opening of the casing (Tamper)
Transmission Security
Two-way communication, AES-128 encryption, Tri-X protocol, Anti-jamming protection (Frequency Hopping)
Software and Interface
The device is fully compatible with the AX PRO ecosystem, managed via the Hik-Connect mobile application (available for Android and iOS) and professional iVMS-4200 client software. This software allows for comprehensive remote configuration of all detection parameters, real-time battery status monitoring, checking the current temperature at the installation site, and verifying radio signal quality. Thanks to an advanced interface, the user receives instant PUSH notifications regarding motion detection, tamper alarms, and low battery status. The Tri-X Wireless system ensures secure, two-way communication with a 'Frequency Hopping' function, which automatically changes radio channels if jamming of the 868MHz band is detected. Intuitive device pairing is achieved by simply scanning a QR code, which significantly reduces alarm system installation and setup time.
Operating Conditions
Temperature: -10 °C ... 55 °C; Humidity: 10 % ... 90 %
Color
White
SAP Code
314300071
Contents
1x Dual detector
2x CR123A Lithium battery
1x Mounting accessories
Dimensions, Weight
Product dimensions: 49 x 66 x 103 mm (Depth x Width x Height)
Packaging dimensions: 57 x 72 x 105 mm (Depth x Width x Height)
Product weight: 140 g
Gross weight: 176 g
