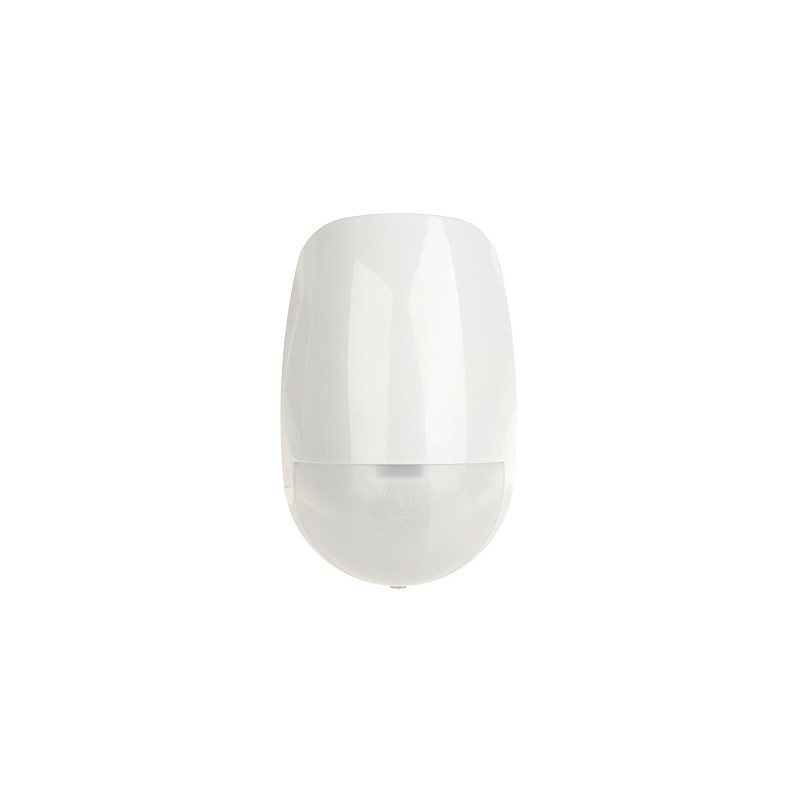

AX PRO Dual PIR and Microwave Motion Detector 12m Pet Immune Digital Detection Hikvision DS-PDD12P-EG2-WE
zł589.17
Tax included
The DS-PDD12P-EG2-WE wireless dual detector is an advanced detection device designed for use in the modern Hikvision AX PRO alarm system. Thanks to the innovative combination of two detection technologies: Passive Infrared (PIR) and Microwave (MW), the device guarantees the highest level of precision in intruder detection while minimizing the risk of false alarms triggered by sudden temperature changes or air movement. It is an ideal solution for rooms with challenging environmental conditions, such as kitchens, garages, or air-conditioned spaces.
One of the key advantages of the detector is its pet immunity function for domestic animals weighing up to 30 kg. This allows dogs or cats to move freely within the monitored zone without the risk of triggering an alarm. The device features a detection range of up to 12 meters with a wide viewing angle of nearly 86 degrees. The Smart Environmental Control (SEC) system, combined with digital signal processing and advanced 3D optics, allows for instantaneous signal analysis and distinguishes real threats from background interference. Radio transmission security is provided by the Tri-X protocol, which utilizes AES-128 encryption and anti-jamming mechanisms, making the system extremely resistant to radio sabotage attempts. Long battery life (up to 5 years) ensures trouble-free and economical operation. The entire unit is enclosed in an aesthetic white housing that discreetly blends into any interior decor.
AX PRO Dual PIR and Microwave Motion Detector 12m Pet Immune Digital Detection
Model: Hikvision DS-PDD12P-EG2-WE
EAN: 6931240032053 SKU: 931032058
- Advanced dual technology PIR + Microwave (MW)
- Full compatibility with Hikvision AX PRO wireless systems
- High false alarm immunity due to SEC digital processing
- Pet immunity for animals up to 30 kg
- Extended wireless communication range up to 1600 meters
- AES-128 encrypted data transmission protecting against signal interception
- Long battery life ensuring up to 5 years of continuous operation
- Two-way radio communication via Tri-X protocol
- Integrated tamper protection
- Quick and easy configuration via QR codes and mobile application
Description
The DS-PDD12P-EG2-WE wireless dual detector is an advanced detection device designed for use in the modern Hikvision AX PRO alarm system. Thanks to the innovative combination of two detection technologies: Passive Infrared (PIR) and Microwave (MW), the device guarantees the highest level of precision in intruder detection while minimizing the risk of false alarms triggered by sudden temperature changes or air movement. It is an ideal solution for rooms with challenging environmental conditions, such as kitchens, garages, or air-conditioned spaces.
One of the key advantages of the detector is its pet immunity function for domestic animals weighing up to 30 kg. This allows dogs or cats to move freely within the monitored zone without the risk of triggering an alarm. The device features a detection range of up to 12 meters with a wide viewing angle of nearly 86 degrees. The Smart Environmental Control (SEC) system, combined with digital signal processing and advanced 3D optics, allows for instantaneous signal analysis and distinguishes real threats from background interference. Radio transmission security is provided by the Tri-X protocol, which utilizes AES-128 encryption and anti-jamming mechanisms, making the system extremely resistant to radio sabotage attempts. Long battery life (up to 5 years) ensures trouble-free and economical operation. The entire unit is enclosed in an aesthetic white housing that discreetly blends into any interior decor.
Specification
Compatibility
HIKVISION AX PRO wireless alarm systems
Frequency band
868 MHz
Wireless communication range
Up to 1600 m in open space
PIR detector range
12 m / 85.9 °
Microwave detection
24 GHz based on the Doppler effect
Power supply
2 x CR123A 3 V Lithium battery (included)
Battery operating time
Approximately 5 years in power-saving mode
Detectable movement speed
0.3 ... 2 m/s
Recommended mounting height
1.8 ... 2.4 m
Pet immunity
Less than or equal to 30 kg
Security Grade
Grade 2
Digital signal processing
SEC (Smart Environmental Control), 3D Optics, Advanced temperature compensation
Tamper protection
Detection of detachment from surface and opening of the housing (Tamper)
Transmission security
Two-way communication, AES-128 encryption, Tri-X protocol, Anti-jamming protection (Frequency Hopping)
Software and Interface
The device is fully compatible with the AX PRO ecosystem, managed via the Hik-Connect mobile application (available on Android and iOS) and professional iVMS-4200 client software. This software enables comprehensive, remote configuration of all detection parameters, real-time battery status monitoring, checking the current temperature at the mounting location, and verifying radio signal quality. Thanks to an advanced interface, the user receives instant PUSH notifications for motion detection, tamper alarms, and low energy status. The Tri-X Wireless system guarantees secure, two-way communication with a 'Frequency Hopping' feature, which automatically changes radio channels in case of detected jamming attempts on the 868MHz band. Intuitive device pairing is performed via a simple QR code scan, significantly reducing the time required for system installation and configuration.
Operating conditions
Temperature: -10 °C ... 55 °C; Humidity: 10 % ... 90 %
Color
White
SAP Code
314300071
Contents
1x Dual detector
2x CR123A Lithium battery
1x Mounting accessories
Dimensions, Weight
Product dimensions: 49 x 66 x 103 mm (Depth x Width x Height)
Package dimensions: 57 x 72 x 105 mm (Depth x Width x Height)
Product weight: 140 g
Weight with packaging: 176 g
