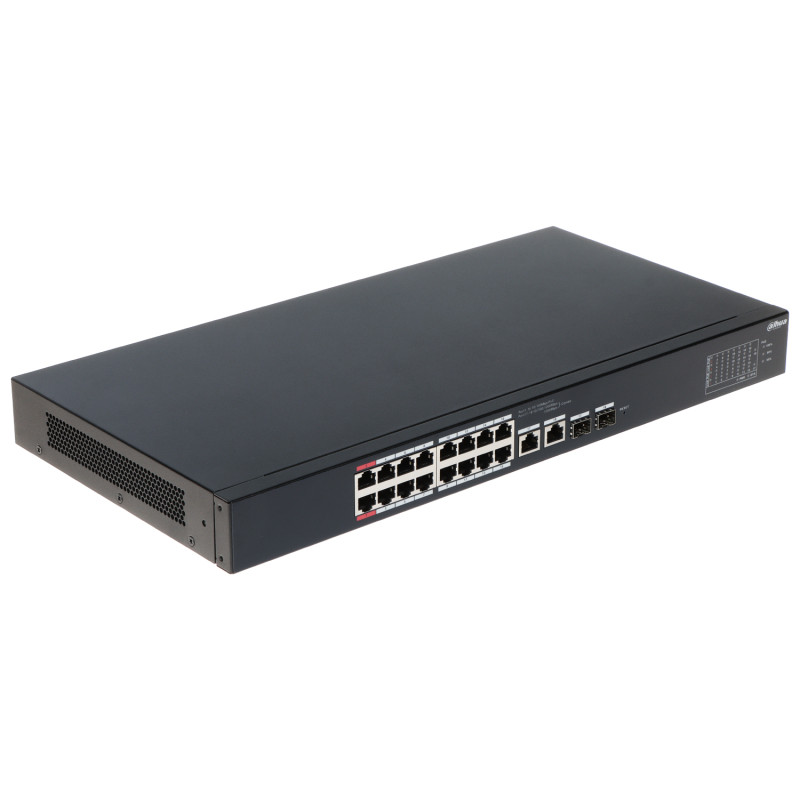

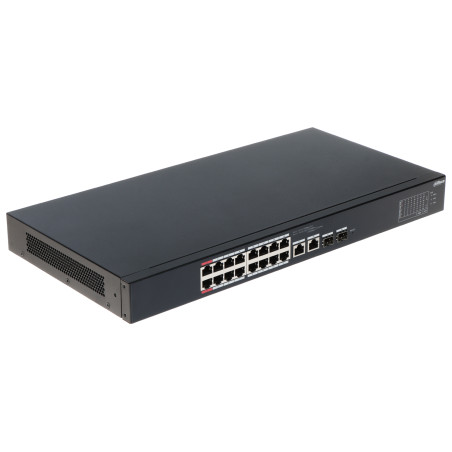

16-Port Managed PoE Switch SFP Rack 19 Gigabit LAN Uplink Web Cloud

Model: DAHUA CS4218-16ET-135

EAN: 6931240087060 SKU: 931087062

• 16 LAN ports with PoE power support 10/100 Mbps
• Two Hi-PoE (802.3bt) ports offering up to 90W of power per port
• 2 Combo Uplink ports: SFP (1000 Base-X) / RJ45 (10/100/1000 Base-T)
• Management via Web interface and dedicated DoLynk Care cloud
• PoE Watchdog function for automatic restart of unresponsive devices
• Extend mode allowing transmission range up to 250 meters
• VLAN support (Port Based) up to 32 groups
• High 4kV surge protection and 8kV ESD
• Metal housing in 19-inch 1U Rack standard
• Wide power supply voltage range 100-240V AC

Description

The Dahua CS4218-16ET-135 is a professional 16-port PoE switch that serves as the foundation for modern and efficient network installations, particularly in IP video surveillance systems. The device is designed for reliability and operational continuity, offering 16 Fast Ethernet (10/100 Mbps) ports with full support for the Power over Ethernet standard. An exceptional feature of this model is that the first two ports support the Hi-PoE (802.3bt) standard, capable of delivering up to 90W of power, which is critical for advanced PTZ cameras and high-power consumption devices. The remaining 14 ports operate on the 802.3af/at standard, delivering up to 30W per port, with a total power budget of 135W.

Specification

16 x RJ45 10/100 Base-T (PoE), 2 x Combo Uplink: SFP 1000 Base-X / RJ45 10/100/1000 Base-T

A key element of the design is two Gigabit (1000 Mbps) Combo (SFP/RJ45) ports, which serve as high-speed Uplink connections. They allow for flexible connection of the switch to the rest of the infrastructure using traditional copper twisted-pair cabling or fiber optics, which is invaluable for long-distance data transmission. The switch offers advanced management features via a Web browser and the integrated DoLynk Care cloud, enabling full control over the network from anywhere in the world. The PoE Watchdog function automatically monitors the state of connected devices and performs a hard reset if a loss of response is detected, minimizing the need for service interventions.

Additionally, the Extend mode allows for the transmission of data and power over an impressive distance of up to 250 meters, which significantly lowers installation costs in large facilities. The entire unit is enclosed in a solid metal housing adapted for installation in 19-inch Rack cabinets, ensuring mechanical safety and optimal heat dissipation. The device features advanced surge protection up to 4kV, ensuring longevity and operational stability even in harsh environmental conditions. This is a reliable solution combining high performance with intuitive, modern administration.

Layer 2 management via Web interface (browser) and support for the Dahua DoLynk Care cloud platform

LAN and Uplink Ports

Ports 1-2: Hi-PoE / PoE (802.3bt) up to 90W; Ports 3-16: PoE (802.3af/at) up to 30W; Total power budget: 135W

Management and Configuration

PoE ports: 10 / 100 Mbps; Uplink RJ45 ports: 10 / 100 / 1000 Mbps; Uplink SFP ports: 1000 Mbps

PoE and Power Parameters

MAC address table: 8k; Flow control support according to 802.3x standard

Data Transmission Speed

VLAN: Port Based (up to 32 groups), Loop Protection, PoE Watchdog (intelligent port monitoring), LLDP protocol compliance, DHCP client

Switching Performance

The DoLynk Care application is a professional Dahua solution for remote network management. It allows for topology visualization, real-time troubleshooting, and remote restart of PoE ports. The user receives failure notifications and has the ability to configure network parameters from a smartphone or web panel, eliminating the need for frequent service visits to the client site.

Advanced Features (L2)

Lightning protection: 4 kV (common mode) / 2 kV (differential mode); Electrostatic protection ESD: 8 kV (air) / 6 kV (contact)

Software and Cloud System

Link/Act, PoE Status, Power, System, PoE load percentage (50%, 80%, 100%)

Security and Protection

Standard mode: 100m; Extend mode: up to 250m at 10 Mbps speed on UTP cat. 5e/6 cabling

Status Indicators (LED)

Solid metal housing, Desktop / 19-inch Rack type, 1U height, built-in reset button

Transmission Method and Range

Operating temperature: -10 °C to 55 °C; Operating humidity: 10% - 90% (non-condensing)

Design and Housing

Power supply: 100 V ... 240 V AC, 47 Hz ... 63 Hz; Power consumption without PoE load: < 15W; Max. power consumption: 154W

Environmental Conditions

CE compliance; Manufacturer warranty: 5 years

Power Consumption and Parameters

1x PoE Switch

1x Power cable

1x Set of mounting brackets for 19" Rack cabinet

1x User manual

Certificates and Warranty

Dimensions, Weight

Product dimensions: 220 x 440 x 44 mm (D x W x H)

Package dimensions: 340 x 540 x 90 mm (D x W x H)

Product weight: 2180 g

Weight with packaging: 3048 g
