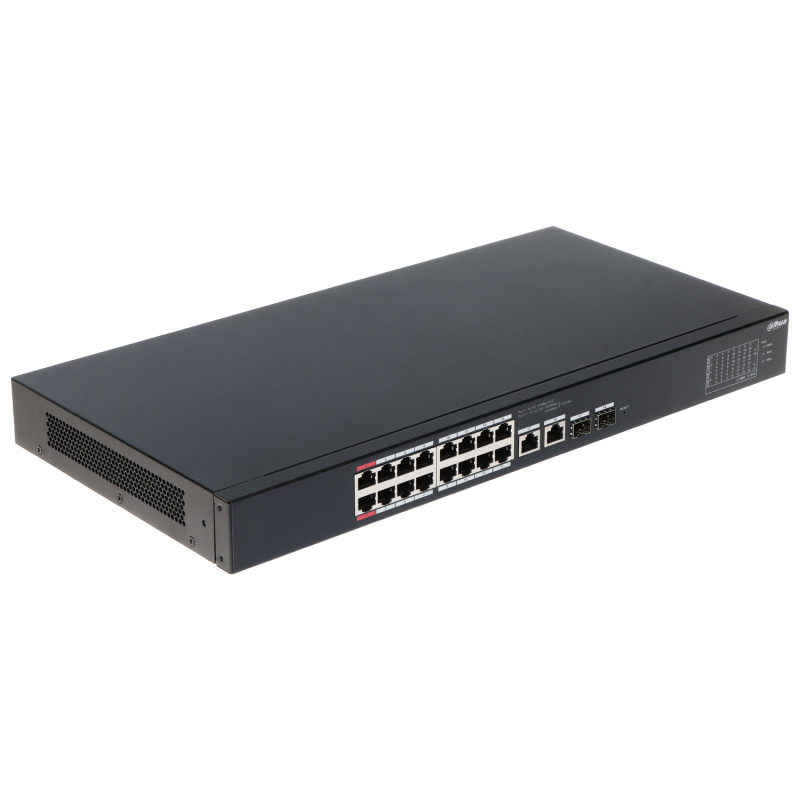

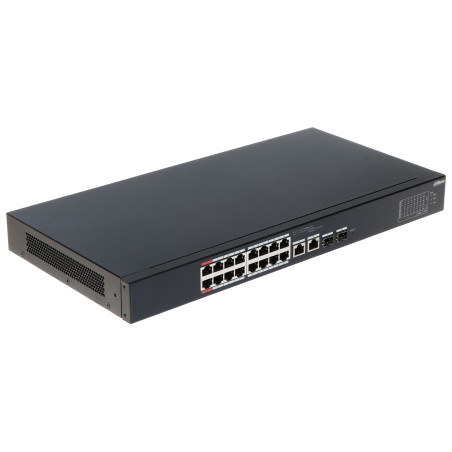

16 Port PoE Switch SFP Managed Rack 19 Network Switch LAN Gigabit Uplink Web Cloud

Model: DAHUA CS4218-16ET-135

EAN: 6931240087060 SKU: 931087062

• 16 LAN ports supporting PoE power supply 10/100 Mbps
• Two Hi-PoE ports (802.3bt) offering up to 90W of power per port
• 2 Combo Uplink ports: SFP (1000 Base-X) / RJ45 (10/100/1000 Base-T)
• Management via Web interface and dedicated DoLynk Care cloud
• PoE Watchdog function for automatic restart of frozen devices
• Extend mode allowing transmission range up to 250 meters
• VLAN support (Port Based) up to 32 groups
• High surge protection 4kV and ESD 8kV
• Metal housing in 19-inch 1U Rack standard
• Wide power supply voltage range 100-240V AC

Description

The Dahua CS4218-16ET-135 is a professional 16-port PoE switch that serves as the foundation for modern and efficient network installations, particularly in IP video surveillance systems. The device is designed for reliability and operational continuity, offering 16 Fast Ethernet ports (10/100 Mbps) with full Power over Ethernet support. A unique feature of this model is the first two ports supporting the Hi-PoE (802.3bt) standard, capable of delivering up to 90W of power, which is critical for advanced PTZ cameras and high-power consumption devices. The remaining 14 ports operate on the 802.3af/at standard, delivering up to 30W per port, with a total power budget of 135W.

Specification

Additionally, the Extend mode allows for transmitting data and power over an impressive distance of up to 250 meters, which significantly lowers installation costs in large facilities. The entire unit is enclosed in a solid, metal housing suitable for mounting in 19-inch Rack cabinets, ensuring mechanical safety and optimal heat dissipation. The device features advanced surge protection of up to 4kV, ensuring longevity and stability even in harsh environmental conditions. This is a reliable solution combining high performance with intuitive, modern administration.

A key component of the design is the two Gigabit (1000 Mbps) Combo ports (SFP/RJ45), which act as high-speed Uplink connections. They allow for flexible connection of the switch to the rest of the infrastructure via traditional copper twisted pair or fiber optic cable, which is invaluable for long-distance data transmission. The switch offers advanced management features via a Web browser and the integrated DoLynk Care cloud, enabling full control over the network from anywhere in the world. The PoE Watchdog function automatically monitors the status of connected devices and performs a hard reset if no response is detected, minimizing the need for service interventions.

LAN and Uplink Ports

16 x RJ45 10/100 Base-T (PoE), 2 x Combo Uplink: SFP 1000 Base-X / RJ45 10/100/1000 Base-T

Management and Configuration

Layer 2 management via Web interface (browser) and support for the Dahua DoLynk Care cloud platform

PoE and Power Parameters

Ports 1-2: Hi-PoE / PoE (802.3bt) up to 90W; Ports 3-16: PoE (802.3af/at) up to 30W; Total power budget: 135W

Data Transmission Speed

PoE Ports: 10 / 100 Mbps; RJ45 Uplink Ports: 10 / 100 / 1000 Mbps; SFP Uplink Ports: 1000 Mbps

Switching Performance

MAC address table: 8k; Flow control support according to 802.3x standard

Advanced Features (L2)

VLAN: Port Based (up to 32 groups), Loop Protection, PoE Watchdog (intelligent port monitoring), LLDP protocol compatibility, DHCP Client

Software and Cloud System

The DoLynk Care application is a professional Dahua solution for remote network management. It allows for topology visualization, real-time troubleshooting, and remote restart of PoE ports. The user receives failure notifications and can configure network parameters from a smartphone or web panel, eliminating the need for frequent site visits.

Security and Protection

Lightning protection: 4 kV (common) / 2 kV (differential); Electrostatic discharge protection ESD: 8 kV (air) / 6 kV (contact)

Status Indicators (LED)

Link/Act, PoE Status, Power, System, PoE load percentage (50%, 80%, 100%)

Transmission Method and Range

Standard Mode: 100m; Extend Mode: up to 250m at 10 Mbps speed on UTP cat. 5e/6 cabling

Design and Housing

Solid metal desktop / 19-inch Rack housing, 1U height, built-in reset button

Environmental Conditions

Operating temperature: -10 °C to 55 °C; Operating humidity: 10% - 90% (non-condensing)

Power Consumption and Parameters

Power supply: 100 V ... 240 V AC, 47 Hz ... 63 Hz; Power consumption without PoE load: < 15W; Max. power consumption: 154W

Certificates and Warranty

CE compliance; Manufacturer warranty: 5 years

Dimensions, Weight

Product dimensions: 220 x 440 x 44 mm (D x W x H)

Package dimensions: 340 x 540 x 90 mm (D x W x H)

Product weight: 2180 g

Weight with packaging: 3048 g
