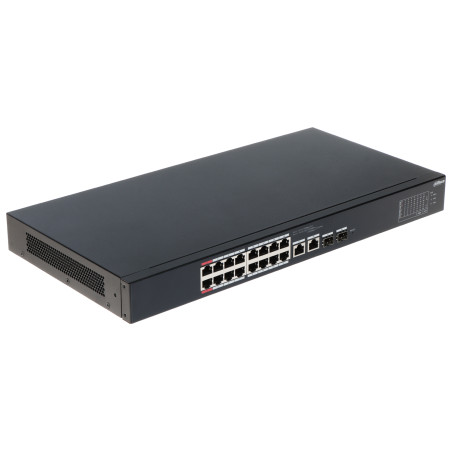

16 Port Managed PoE SFP Rackmount Gigabit Network Switch Web Cloud DAHUA CS4218-16ET-135
zł 854,85
Tax included
The Dahua CS4218-16ET-135 is a professional 16-port PoE switch that serves as the foundation for modern and efficient network installations, especially in IP video surveillance systems. The device is designed for reliability and operational continuity, offering 16 Fast Ethernet (10/100 Mbps) ports with full support for the Power over Ethernet standard. A unique feature of this model is the first two ports that support the Hi-PoE (802.3bt) standard, capable of delivering up to 90W of power, which is critical for advanced PTZ dome cameras and high-power consumption devices. The remaining 14 ports operate on the 802.3af/at standard, providing up to 30W per port, with a total power budget of 135W.
A key element of the design is two Combo-type (SFP/RJ45) ports with Gigabit (1000 Mbps) speed, which serve as high-speed Uplink connections. They allow for flexible connection of the switch to the rest of the infrastructure using traditional copper twisted pair or fiber optic, which is invaluable for long-distance data transmission. The switch offers advanced management functions via a web browser and the integrated DoLynk Care cloud, enabling full control over the network from anywhere in the world. The PoE Watchdog function automatically monitors the status of connected devices and, upon detecting no response, performs a hard reset, minimizing the need for service interventions.
Additionally, Extend mode allows for data and power transmission over an impressive distance of up to 250 meters, which significantly reduces installation costs in large facilities. The entire unit is enclosed in a solid, metal housing adapted for installation in 19-inch Rack cabinets, ensuring mechanical safety and optimal heat dissipation. The device features advanced surge protection up to 4kV, ensuring longevity and stability of operation even in difficult atmospheric conditions. It is a reliable solution that combines high performance with intuitive, modern administration.
16 Port Managed PoE SFP Rackmount Gigabit Network Switch Web Cloud
Model: DAHUA CS4218-16ET-135
EAN: 6931240087060 SKU: 931087062
- 16 LAN ports with PoE support 10/100 Mbps
- Two Hi-PoE ports (802.3bt) offering up to 90W of power per port
- 2 Combo Uplink ports: SFP (1000 Base-X) / RJ45 (10/100/1000 Base-T)
- Management via web interface and dedicated DoLynk Care cloud
- PoE Watchdog function for automatic restart of frozen devices
- Extend mode allowing transmission range up to 250 meters
- VLAN support (Port Based) up to 32 groups
- High surge protection 4kV and ESD 8kV
- Metal housing in 19-inch 1U Rack standard
- Wide input voltage range 100-240V AC
Description
The Dahua CS4218-16ET-135 is a professional 16-port PoE switch that serves as the foundation for modern and efficient network installations, especially in IP video surveillance systems. The device is designed for reliability and operational continuity, offering 16 Fast Ethernet (10/100 Mbps) ports with full support for the Power over Ethernet standard. A unique feature of this model is the first two ports that support the Hi-PoE (802.3bt) standard, capable of delivering up to 90W of power, which is critical for advanced PTZ dome cameras and high-power consumption devices. The remaining 14 ports operate on the 802.3af/at standard, providing up to 30W per port, with a total power budget of 135W.
A key element of the design is two Combo-type (SFP/RJ45) ports with Gigabit (1000 Mbps) speed, which serve as high-speed Uplink connections. They allow for flexible connection of the switch to the rest of the infrastructure using traditional copper twisted pair or fiber optic, which is invaluable for long-distance data transmission. The switch offers advanced management functions via a web browser and the integrated DoLynk Care cloud, enabling full control over the network from anywhere in the world. The PoE Watchdog function automatically monitors the status of connected devices and, upon detecting no response, performs a hard reset, minimizing the need for service interventions.
Additionally, Extend mode allows for data and power transmission over an impressive distance of up to 250 meters, which significantly reduces installation costs in large facilities. The entire unit is enclosed in a solid, metal housing adapted for installation in 19-inch Rack cabinets, ensuring mechanical safety and optimal heat dissipation. The device features advanced surge protection up to 4kV, ensuring longevity and stability of operation even in difficult atmospheric conditions. It is a reliable solution that combines high performance with intuitive, modern administration.
Specification
LAN and Uplink Ports
16 x RJ45 10/100 Base-T (PoE), 2 x Combo Uplink: SFP 1000 Base-X / RJ45 10/100/1000 Base-T
Management and Configuration
Layer 2 management via Web interface (browser) and support for the Dahua DoLynk Care cloud platform
PoE and Power Parameters
Ports 1-2: Hi-PoE / PoE (802.3bt) up to 90W; Ports 3-16: PoE (802.3af/at) up to 30W; Total power budget: 135W
Data Transmission Speed
PoE ports: 10/100 Mbps; RJ45 Uplink ports: 10/100/1000 Mbps; SFP Uplink ports: 1000 Mbps
Switching Performance
MAC address table: 8k; Support for data flow control according to 802.3x standard
Advanced Features (L2)
VLAN: Port Based (up to 32 groups), Loop Protection, PoE Watchdog (intelligent port monitoring), LLDP protocol compliance, DHCP client
Software and Cloud System
The DoLynk Care application is a professional Dahua solution for remote network management. It allows for topology visualization, real-time troubleshooting, and remote reboot of PoE ports. The user receives failure notifications and can configure network parameters from a smartphone or web panel, eliminating the need for frequent site visits to the client.
Security and Protection
Lightning protection: 4 kV (common) / 2 kV (differential); Electrostatic discharge protection ESD: 8 kV (air) / 6 kV (contact)
Status Indicators (LED)
Link/Act, PoE Status, Power, System, PoE load percentage (50%, 80%, 100%)
Transmission Method and Range
Standard mode: 100m; Extend mode: up to 250m at 10 Mbps speed on UTP cat. 5e/6 cabling
Design and Housing
Solid metal Desktop / 19-inch Rack type housing, 1U height, built-in reset button
Environmental Conditions
Operating temperature: from -10 °C to 55 °C; Operating humidity: 10% - 90% (non-condensing)
Power Consumption and Parameters
Power supply: 100 V ... 240 V AC, 47 Hz ... 63 Hz; Power consumption without PoE load: < 15W; Max. power consumption: 154W
Certificates and Warranty
CE compliance; Manufacturer warranty: 5 years
Contents
1x PoE Switch
1x Power cable
1x Mounting bracket set for 19" Rack cabinet
1x User manual
Dimensions, Weight
Product dimensions: 220 x 440 x 44 mm (D x W x H)
Package dimensions: 340 x 540 x 90 mm (D x W x H)
Product weight: 2180 g
Weight with packaging: 3048 g
