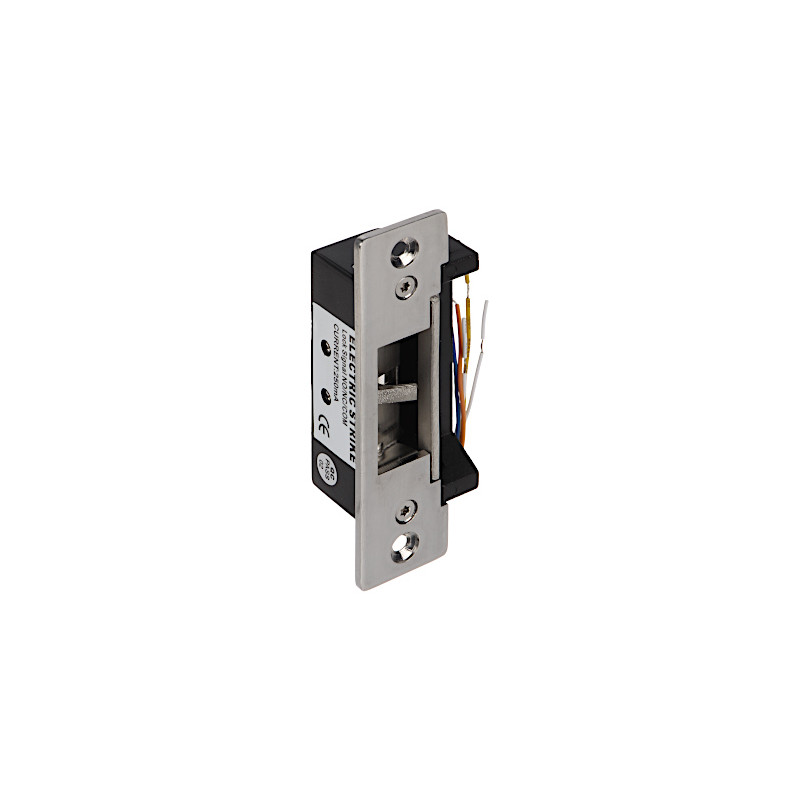

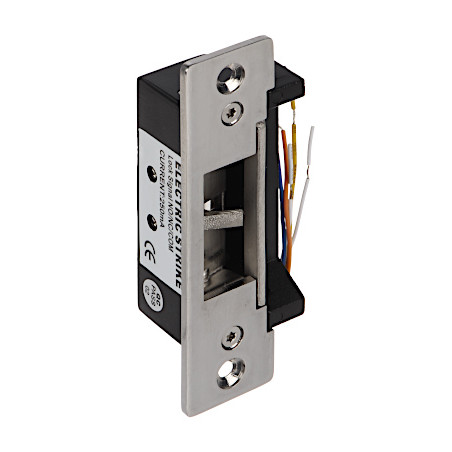

Symmetrical Electric Strike for Doors and Gates 12V DC 320mA 500kg NO NC COM Status Output Access Control

Model: DAHUA ASF702

EAN: 6931240014103 SKU: 931014102

• High mechanical strength up to 500 kg of pressure on the door
• Built-in opening status sensor with NO/NC/COM output
• Symmetrical design - suitable for left and right-hand doors
• Designed for use with latch and latch-bolt locks
• Powered by 12V DC current with low power consumption of 320mA
• Made of high-quality wear-resistant materials
• Suitable for installation in wood, metal, and PVC profiles
• Compact dimensions for easy installation in narrow door frames

Description

The professional Dahua electric strike is a key element of modern access control systems, as well as intercom and video intercom installations. The device is designed for maximum reliability and versatility, allowing for trouble-free installation in various types of doors and gates made of metal sections, wood, or modern plastics (PVC, aluminum). A robust construction based on high-quality metal alloys guarantees exceptional resistance to mechanical damage and long-term, trouble-free operation even under conditions of intensive use in public facilities or office buildings.

Specification

An exceptional functionality of the ASF702 model is the built-in signal output of the NO/NC/COM type. It allows for precise monitoring of the bolt status (open/closed), which is essential in advanced alarm and access control systems, enabling the administrator to view the status of the entrance in real time. The universal design makes the strike ideal for both left and right-hand doors, which eliminates errors when selecting equipment at the installation planning stage. Compact dimensions allow for aesthetic installation inside the door frame without compromising the visual character of the door joinery. This is a solution dedicated to professionals looking for a compromise between strength, functionality, and ease of installation.

One of the most important advantages of this model is its immense mechanical strength – the bolt withstands pressure and dynamic load acting on the door of up to 500 kg, which significantly increases the level of security for protected property. The strike operates on a 12V DC standard, characterized by an optimal power consumption of 320 mA. As a result, it is fully compatible with most switching power supplies and buffer power supplies used in security systems.

1. Electrical parameters and power supply

Nominal voltage: 12 V DC (direct current). The device requires a stable power source with a current capacity of at least 400mA to ensure the correct operation of the solenoid coil.

2. Power consumption and efficiency

The nominal current consumption is 320 mA during operation. This value is optimized for cooperation with emergency backup systems (UPS) and buffer power supplies.

3. Mechanical strength and load

The permissible door load acting directly on the strike is 500 kg (approx. 5000 N). This guarantees high resistance to forced entry attempts.

4. Application and door direction

Universal and symmetrical construction. Possibility of installation in right-hand and left-hand doors without the need for device modification.

5. Internal memory function

The model does not have a memory function (None). The strike is unlocked only when voltage is applied. After the electrical impulse ceases, the bolt immediately returns to the locked state.

6. Mechanical latch lock

No mechanical latch lock switch. The device is controlled exclusively by electrical means, which increases the level of control over access to the facility.

7. Bolt operating mode

Standard operation (non-reversible). In the event of a power failure, the strike remains locked (closed). Opening occurs under the influence of an electrical impulse.

8. Adjustment and clearance setting

The model does not have latch clearance adjustment. Precise fitting with the main lock is done at the stage of mechanical installation in the door frame.

9. Monitoring and status outputs

Integrated status sensor with full relay output: COM (Common - Orange), NC (Normally Closed - Blue), NO (Normally Open - Yellow). Allows for integration with alarm control panels.

10. Wire termination description

1) White: Power (+, -); 2) Blue: NC (Monitoring contact); 3) Orange: COM (Common contact); 4) Yellow: NO (Monitoring contact).

11. Material of construction and casing

Strike made of durable high-density metal alloys, ensuring resistance to deformation under the influence of temperature and pressure.

12. Environmental conditions and installation

The device is intended for indoor use or in places protected from direct atmospheric conditions. Operating temperature is stable over a wide range.

13. Physical dimensions

Body dimensions: 124 mm (height) x 32 mm (width) x 35 mm (depth). Compact size facilitates milling in metal and wooden profiles.

14. Warranty and manufacturer

Manufacturer: DAHUA. Warranty period: 2 years (24 months). The product has CE certification confirming compliance with safety standards.

Dimensions, Weight

Product dimensions: 35 x 32 x 124 mm (Depth x Width x Height)

Package dimensions: 42 x 52 x 195 mm (Depth x Width x Height)

Product weight: 240 g

Weight with packaging: 332 g
