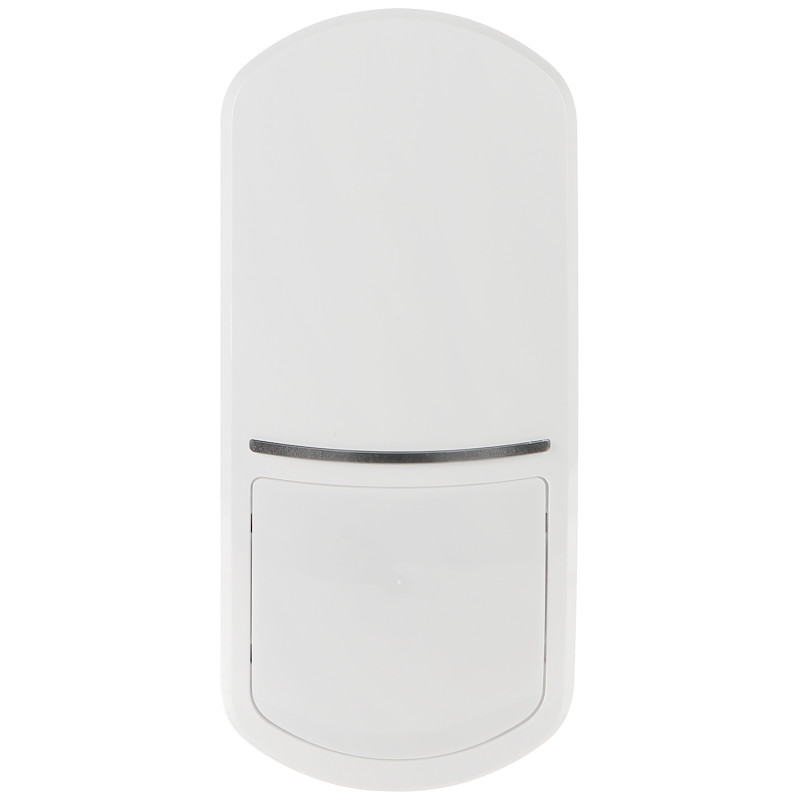

Wireless Dual Motion Detector PIR and MW Alarm System Creep Zone Control 868MHz Intruder Detection SATEL APMD-250
zł430.81
Tax included
The APMD-250 wireless dual motion detector (Motion Detector Plus) is a top-class property protection solution designed for operation within the ABAX 2 and ABAX two-way wireless systems. This device combines two independent detection methods: passive infrared (PIR) and microwave (MW) detection. This combination allows for the elimination of false alarms triggered by rapid temperature changes or air movement, making it an ideal choice for challenging environmental conditions such as garages, boutiques, or summer houses.
The greatest advantage of the detector is its reliability and operating range. In the ABAX 2 system, radio communication can reach up to 2000 meters in an open area, which allows for securing very large objects. The device is also characterized by an advanced power management system which, combined with an efficient CR123A lithium battery, allows operation for up to 2 years without the need for replacement. The detector offers full remote configuration and firmware updates, which significantly facilitates the installer's work. Additionally, the APMD-250 model features creep zone control and tamper protection against enclosure opening and removal from the surface, ensuring complete alarm system security.
Wireless Dual Motion Detector PIR and MW Alarm System Creep Zone Control 868MHz Intruder Detection
Model: SATEL APMD-250
EAN: 6931240051580 SKU: 931051580
- Dual detection: passive infrared (PIR) and microwave (MW) for maximum false alarm reduction
- Compatibility with ABAX 2 and ABAX wireless systems (868 MHz band)
- Very long radio communication range: up to 2000 m in open area (ABAX 2)
- Remote configuration of detection parameters and firmware update without device dismantling
- Advanced temperature compensation allowing stable operation from -10°C to +55°C
- Creep zone control function eliminating the so-called dead zone under the detector
- Double tamper protection: detection of enclosure opening and removal from wall
- Optional lens replacement with curtain or long-range lens
- LED for alarm signaling in test mode to facilitate installation
- Long battery life (approx. 2 years) due to efficient power management
Description
The APMD-250 wireless dual motion detector (Motion Detector Plus) is a top-class property protection solution designed for operation within the ABAX 2 and ABAX two-way wireless systems. This device combines two independent detection methods: passive infrared (PIR) and microwave (MW) detection. This combination allows for the elimination of false alarms triggered by rapid temperature changes or air movement, making it an ideal choice for challenging environmental conditions such as garages, boutiques, or summer houses.
The greatest advantage of the detector is its reliability and operating range. In the ABAX 2 system, radio communication can reach up to 2000 meters in an open area, which allows for securing very large objects. The device is also characterized by an advanced power management system which, combined with an efficient CR123A lithium battery, allows operation for up to 2 years without the need for replacement. The detector offers full remote configuration and firmware updates, which significantly facilitates the installer's work. Additionally, the APMD-250 model features creep zone control and tamper protection against enclosure opening and removal from the surface, ensuring complete alarm system security.
Specification
Wireless standard
Two-way radio communication ABAX / ABAX 2
Frequency band
868.0 MHz ... 868.6 MHz
Radio transmission range
In ABAX 2 system: up to 2000 m (open area); In ABAX system: up to 500 m (open area)
Detection technology
Dual: Passive infrared (PIR) + Microwave (MW)
Detection range and angle
15 meters / 90 degrees
Power supply
Lithium battery CR123A 3 V
Battery operating time
Approx. 2 years (in power saving mode)
Detectable motion speed
0.3 m/s ... 3.0 m/s
Installation height
Recommended from 2.0 m to 2.4 m
Additional functions
Advanced digital temperature compensation, creep zone control, remote battery status check
Tamper protection
Tamper contact responding to enclosure opening and removal from the surface
Software and Configuration
The ABAX 2 system software offers advanced remote management capabilities for the APMD-250 detector. Thanks to full two-way communication, the installer can remotely change the sensitivity of the PIR path and microwave, as well as define reporting modes without the need to physically open the detector. The software allows for continuous monitoring of radio signal strength, battery charge level, and remote firmware updates of the detector via radio, which ensures compliance with the latest security features. Diagnostic tools allow for quick verification of the correct operation of both sensors in test mode, which minimizes the time required for system maintenance.
Environmental conditions
Operating temperature: -10 °C ... 55 °C; Relative humidity: 93 ± 3 %
Compliance with standards
EN 50131-2-4 Grade 2, CE
Contents
1x Dual detector APMD-250
1x Battery CR123A
Mounting elements
User manual
Dimensions, Weight
Product dimensions: 42 x 62 x 137 mm (Depth x Width x Height)
Package dimensions: 55 x 65 x 185 mm (Depth x Width x Height)
Product weight: 100 g
Weight with package: 182 g
