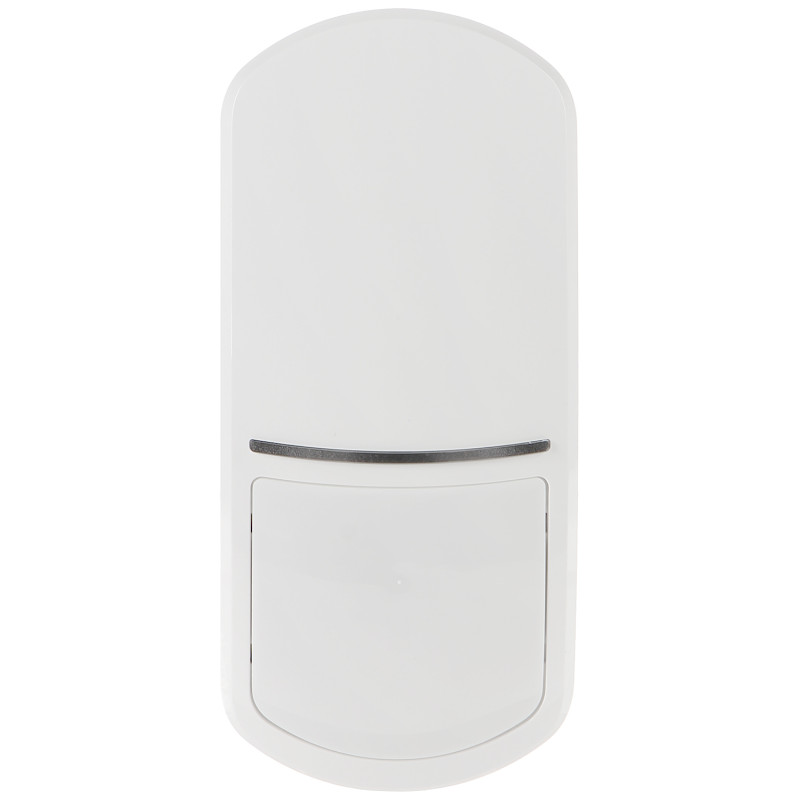

Wireless Dual PIR and MW Motion Detector for Alarm Systems with Creep Zone Control 868MHz Intruder Detection SATEL APMD-250
zł430.81
Tax included
The APMD-250 wireless dual motion detector (Motion Detector Plus) is a top-tier asset protection solution designed to operate within the bidirectional ABAX 2 and ABAX wireless systems. This device combines two independent detection methods: passive infrared (PIR) and microwave (MW) detection. This combination allows for the elimination of false alarms triggered by rapid temperature changes or air movement, making it an ideal choice for challenging environmental conditions such as garages, boutiques, or summer houses.
The greatest advantage of the detector is its reliability and operating range. In the ABAX 2 system, radio communication can reach a distance of up to 2000 meters in an open area, which allows for the protection of vast facilities. The device also features an advanced power management system which, combined with an efficient CR123A lithium battery, allows for operation for up to 2 years without the need for replacement. The detector offers full remote configuration and firmware updates, which significantly facilitates the installer's work. Additionally, the APMD-250 model features a creep zone control function and tamper protection against housing opening and detachment from the surface, guaranteeing full security of the alarm system.
Wireless Dual PIR and MW Motion Detector for Alarm Systems with Creep Zone Control 868MHz Intruder Detection
Model: SATEL APMD-250
EAN: 6931240051580 SKU: 931051580
- Dual detection: passive infrared (PIR) and microwave (MW) for maximum false alarm reduction
- Compatibility with ABAX 2 and ABAX wireless systems (868 MHz band)
- Very long radio communication range: up to 2000 m in open area (ABAX 2)
- Remote parameter configuration and firmware updates without device disassembly
- Advanced temperature compensation allowing stable operation in the range from -10°C to +55°C
- Creep zone control function eliminating the so-called dead zone under the detector
- Double tamper protection: detection of housing opening and detachment from the wall
- Optional lens replacement for curtain or long-range lens
- LED indicator for violations in test mode for easy installation
- Long battery life (approx. 2 years) due to efficient power management
Description
The APMD-250 wireless dual motion detector (Motion Detector Plus) is a top-tier asset protection solution designed to operate within the bidirectional ABAX 2 and ABAX wireless systems. This device combines two independent detection methods: passive infrared (PIR) and microwave (MW) detection. This combination allows for the elimination of false alarms triggered by rapid temperature changes or air movement, making it an ideal choice for challenging environmental conditions such as garages, boutiques, or summer houses.
The greatest advantage of the detector is its reliability and operating range. In the ABAX 2 system, radio communication can reach a distance of up to 2000 meters in an open area, which allows for the protection of vast facilities. The device also features an advanced power management system which, combined with an efficient CR123A lithium battery, allows for operation for up to 2 years without the need for replacement. The detector offers full remote configuration and firmware updates, which significantly facilitates the installer's work. Additionally, the APMD-250 model features a creep zone control function and tamper protection against housing opening and detachment from the surface, guaranteeing full security of the alarm system.
Specification
Wireless standard
Bidirectional ABAX / ABAX 2 radio communication
Frequency band
868.0 MHz ... 868.6 MHz
Radio transmission range
In ABAX 2 system: up to 2000 m (open area); In ABAX system: up to 500 m (open area)
Detection technology
Dual: Passive infrared (PIR) + Microwave (MW)
Detection range and angle
15 meters / 90 degrees
Power supply
Lithium battery CR123A 3 V
Battery life
Approx. 2 years (in power-saving mode)
Detectable motion speed
0.3 m/s ... 3.0 m/s
Mounting height
Recommended from 2.0 m to 2.4 m
Additional features
Advanced digital temperature compensation, creep zone control, remote battery status check
Tamper protection
Tamper switch responding to housing opening and detachment from the surface
Software and Configuration
The ABAX 2 system software offers advanced remote management capabilities for the APMD-250 detector. Thanks to full bidirectional communication, the installer can remotely change the sensitivity of the PIR and microwave paths, as well as define reporting modes without having to physically open the detector. The software allows for continuous monitoring of radio signal strength, battery level, and remote firmware updates for the detector via radio, ensuring compliance with the latest security features. Diagnostic tools allow for quick verification of the correct operation of both sensors in test mode, which minimizes the time required for system maintenance.
Environmental conditions
Operating temperature: -10 °C ... 55 °C; Relative humidity: 93 ± 3 %
Compliance with standards
EN 50131-2-4 Grade 2, CE
Contents
1x Dual detector APMD-250
1x Battery CR123A
Mounting components
User manual
Dimensions, Weight
Product dimensions: 42 x 62 x 137 mm (Depth x Width x Height)
Packaging dimensions: 55 x 65 x 185 mm (Depth x Width x Height)
Product weight: 100 g
Weight with packaging: 182 g
