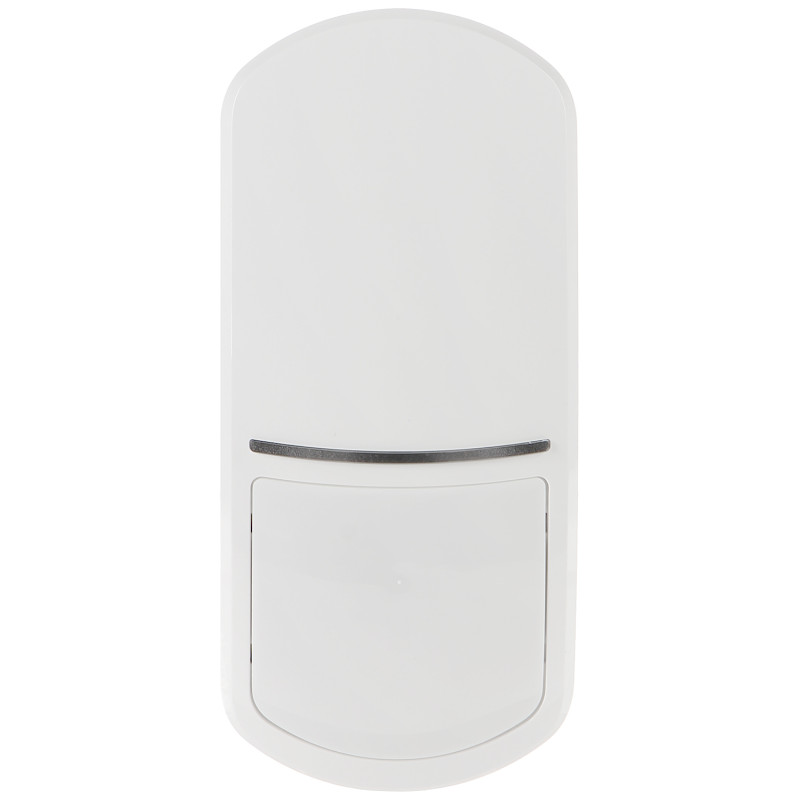

Wireless Dual PIR and MW Motion Detector Alarm System Approach Zone Control 868MHz Intruder Detection

Model: SATEL APMD-250

EAN: 6931240051580 SKU: 931051580

• Dual detection: passive infrared (PIR) and microwave (MW) for maximum false alarm reduction
• Compatibility with ABAX 2 and ABAX wireless systems (868 MHz band)
• Very long radio communication range: up to 2000 m in open area (ABAX 2)
• Remote configuration of detection parameters and firmware updates without device disassembly
• Advanced temperature compensation enabling stable operation in the range from -10°C to +55°C
• Approach zone control function eliminating the so-called dead zone under the detector
• Dual tamper protection: detection of enclosure opening and removal from the wall
• Optional lens replacement with curtain or long-range lens
• LED for alarm signaling in test mode to facilitate installation
• Long battery life (approx. 2 years) thanks to efficient energy management

Description

The wireless dual APMD-250 (Motion Detector Plus) is a top-class property protection solution, designed to operate within the two-way wireless system ABAX 2 and ABAX. This device combines two independent detection methods: passive infrared (PIR) and microwave (MW) detection. This combination allows for the elimination of false alarms caused by rapid temperature changes or air currents, making it an ideal choice for difficult environmental conditions such as garages, boutiques, or summer houses.

Specification

The biggest advantage of the detector is its reliability and operating range. In the ABAX 2 system, radio communication can take place over a distance of up to 2000 meters in an open area, which allows for the protection of very large facilities. The device also features an advanced energy management system, which, in combination with an efficient CR123A lithium battery, allows it to operate for up to 2 years without the need for replacement. The detector offers full remote configuration and firmware updates, which significantly facilitates the work of the installer. Additionally, the APMD-250 model has an approach zone control function and tamper protection against opening the enclosure and detaching it from the surface, ensuring full security of the alarm system.

Wireless standard

Two-way radio communication ABAX / ABAX 2

Frequency band

868.0 MHz ... 868.6 MHz

Radio transmission range

In ABAX 2 system: up to 2000 m (open area); In ABAX system: up to 500 m (open area)

Detection technology

Dual: Passive infrared (PIR) + Microwave (MW)

Detection range and angle

15 meters / 90 degrees

Power supply

Lithium battery CR123A 3 V

Battery life

Approximately 2 years (in energy saving mode)

Detectable motion speed

0.3 m/s ... 3.0 m/s

Mounting height

Recommended from 2.0 m to 2.4 m

Additional functions

Advanced digital temperature compensation, approach zone control, remote battery status check

Tamper protection

Tamper switch reacting to enclosure opening and removal from the surface

Software and Configuration

The ABAX 2 system software offers advanced remote management capabilities for the APMD-250 detector. Thanks to full two-way communication, the installer can remotely change the sensitivity of the PIR and microwave paths, as well as define reporting modes without the need to physically open the detector. The software allows for continuous monitoring of radio signal strength, battery level, and remote firmware updates over the air, ensuring compatibility with the latest security features. Diagnostic tools allow for quick verification of the correct operation of both sensors in test mode, which minimizes the time required for system maintenance.

Environmental conditions

Operating temperature: -10 °C ... 55 °C; Relative humidity: 93 ± 3 %

Compliance with standards

EN 50131-2-4 Grade 2, CE

Dimensions, Weight

Product dimensions: 42 x 62 x 137 mm (D x W x H)

Package dimensions: 55 x 65 x 185 mm (D x W x H)

Product weight: 100 g

Weight with package: 182 g
