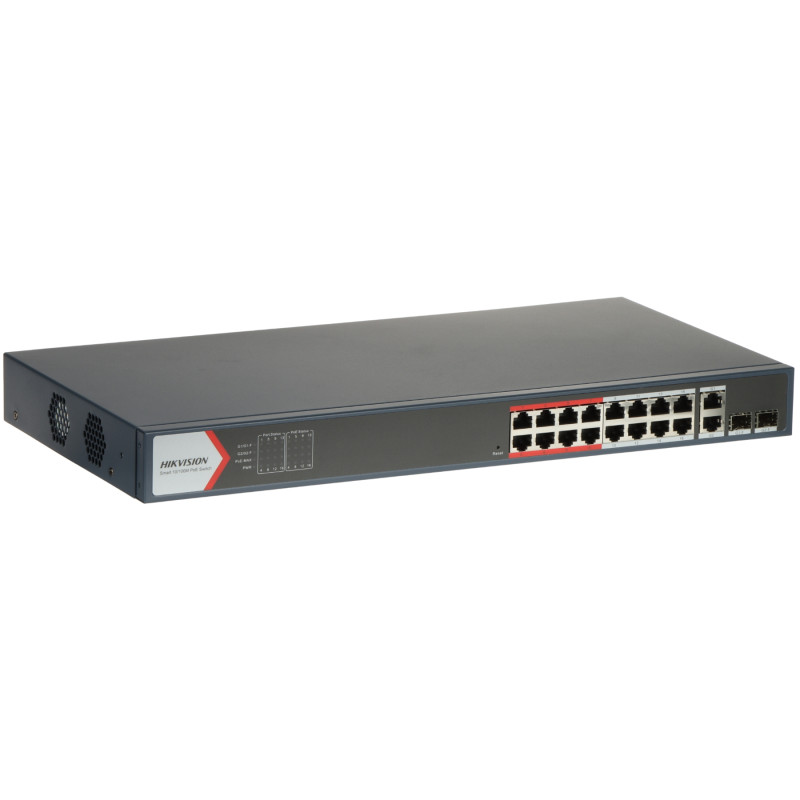

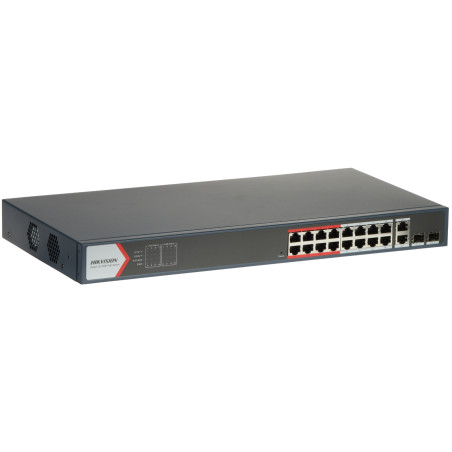

16 Port PoE Managed Network Switch 2x Combo SFP Gigabit Smart Managed Rack 19 Hikvision DS-3E1318P-EI(B)
zł1,485.84
Tax included
The DS-3E1318P-EI(B) switch is a professional network device designed for demanding IP CCTV video surveillance systems. The device offers 16 RJ45 ports supporting PoE (Power over Ethernet) technology in 802.3af/at standards, which enables simultaneous data transmission and camera power supply using a single twisted-pair cable. Additionally, the switch is equipped with 2 Combo ports (SFP/RJ45), providing great flexibility in building the network backbone by allowing the use of fibre-optic modules for long-distance transmission.
A key advantage of this model is the Smart Managed function, which allows for remote management of the network structure. Thanks to full integration with the Hikvision ecosystem and iVMS-4200 software, the user gains access to network topology visualisation and real-time monitoring of each port's status. The PoE Watchdog function is an intelligent solution that automatically restarts frozen cameras by cyclically cutting off power, which significantly increases system reliability and reduces the need for on-site service visits.
The device supports Extend mode, which allows for signal and power transmission over an impressive distance of up to 300 metres at 10 Mbps, making it ideal for extensive outdoor installations. The robust metal housing, designed for mounting in 19-inch Rack cabinets, guarantees durability and operational safety in professional server rooms. The switch also features advanced surge protection, shielding connected devices from the effects of sudden voltage spikes.
16 Port PoE Managed Network Switch 2x Combo SFP Gigabit Smart Managed Rack 19
Model: Hikvision DS-3E1318P-EI(B)
EAN: 6931240067093 SKU: 931067099
- 16 x 10/100 Base-T RJ45 ports with PoE support (802.3af/at)
- 2 x Combo ports: SFP (Base-X) / RJ45 (Base-T) 10/100/1000 Mbps
- PoE Watchdog function - automatic restart of unresponsive devices
- Extend mode - transmission up to 300m on Cat 5e/6 UTP cable
- Smart Managed management via iVMS-4200 application
- Real-time network topology and port status monitoring
- Link aggregation for increased bandwidth and port protection
- Port isolation and network loop prevention
- High priority for ports 1 to 8
- Surge protection for LAN ports
- Maximum total PoE power budget of 230W
- Robust 19-inch Rack metal housing
Description
The DS-3E1318P-EI(B) switch is a professional network device designed for demanding IP CCTV video surveillance systems. The device offers 16 RJ45 ports supporting PoE (Power over Ethernet) technology in 802.3af/at standards, which enables simultaneous data transmission and camera power supply using a single twisted-pair cable. Additionally, the switch is equipped with 2 Combo ports (SFP/RJ45), providing great flexibility in building the network backbone by allowing the use of fibre-optic modules for long-distance transmission.
A key advantage of this model is the Smart Managed function, which allows for remote management of the network structure. Thanks to full integration with the Hikvision ecosystem and iVMS-4200 software, the user gains access to network topology visualisation and real-time monitoring of each port's status. The PoE Watchdog function is an intelligent solution that automatically restarts frozen cameras by cyclically cutting off power, which significantly increases system reliability and reduces the need for on-site service visits.
The device supports Extend mode, which allows for signal and power transmission over an impressive distance of up to 300 metres at 10 Mbps, making it ideal for extensive outdoor installations. The robust metal housing, designed for mounting in 19-inch Rack cabinets, guarantees durability and operational safety in professional server rooms. The switch also features advanced surge protection, shielding connected devices from the effects of sudden voltage spikes.
Specification
LAN and Uplink Ports
16 x RJ45 10/100 Base-T (PoE 802.3af/at)
2 x Combo port: SFP (Base-X) / RJ45 (Base-T) 10/100/1000 Base-T
Transmission Speed
Ethernet: 10 / 100 Mbps - 16 LAN & PoE Ports
Gigabit Ethernet: 10 / 100 / 1000 Mbps - 2 Uplink Ports
SFP: 1000 Mbps - 2 SFP Ports
PoE Parameters
Maximum output power: 30 W / PoE port
Maximum total power: 230 W
Standards: IEEE 802.3af, IEEE 802.3at
Management and Software
Type: Smart Managed
Software: iVMS-4200 (management and configuration)
Default IP address: 192.168.1.64
Default login: admin
Functions: Topology preview, network status, port statistics
iVMS-4200 Software Capabilities
The iVMS-4200 software is an advanced security system management platform that offers unique diagnostic functions for Smart Managed series switches. It enables full network topology visualisation, allowing the administrator to instantly locate a broken connection or an overloaded port. The application allows for remote configuration of network parameters, management of the PoE Watchdog function, and real-time power consumption monitoring for each connected device. Thanks to iVMS-4200, it is also possible to perform firmware updates for multiple devices simultaneously and log system events, which is crucial for maintaining high availability of the surveillance system.
Operating Modes and Range
Extend On: up to 300 m, 10 Mbps @ UTP Cat 5e, 6
Extend Off: up to 100 m, 100 Mbps @ UTP Cat 5e, 6
Advanced Functions
PoE Watchdog: Monitoring and automatic device restart
Link aggregation: Combining physical ports (G1, G2) into logical ones for load balancing
Port isolation: Increased security within the network
Loop prevention: Protection against feedback loops
Prioritisation: Ports 1-8 with high priority for critical cameras
Performance
MAC address table: 16k
Bandwidth: Optimised for large CCTV video streams
Signalling and LED Indicators
Power
PoE Max (power budget exceeded)
G1, G2 (gigabit port status)
Port Status (LAN port activity)
PoE Status (power on ports)
Power Supply
Input voltage: 100 V ... 240 V AC
Current type: Alternating (sinusoidal)
Operating Conditions
Operating temperature: 0 °C ... 45 °C
Certificates: CE
Construction
Housing: Metal
Mounting type: Rack 19"
SAP code: 301803156
Warranty
Warranty period: 3 years
Additional Notes
The SFP port requires the purchase of an appropriate SFP module (available separately in the offer).
Contents
1x PoE Switch DS-3E1318P-EI(B)
1x Power cable
1x Set of Rack mounting brackets
1x User manual
Dimensions, Weight
Product dimensions: 221 x 440 x 44 mm (D x W x H)
Packaging dimensions: 315 x 530 x 95 mm (D x W x H)
Product weight: 2590 g
Weight with packaging: 3222 g
