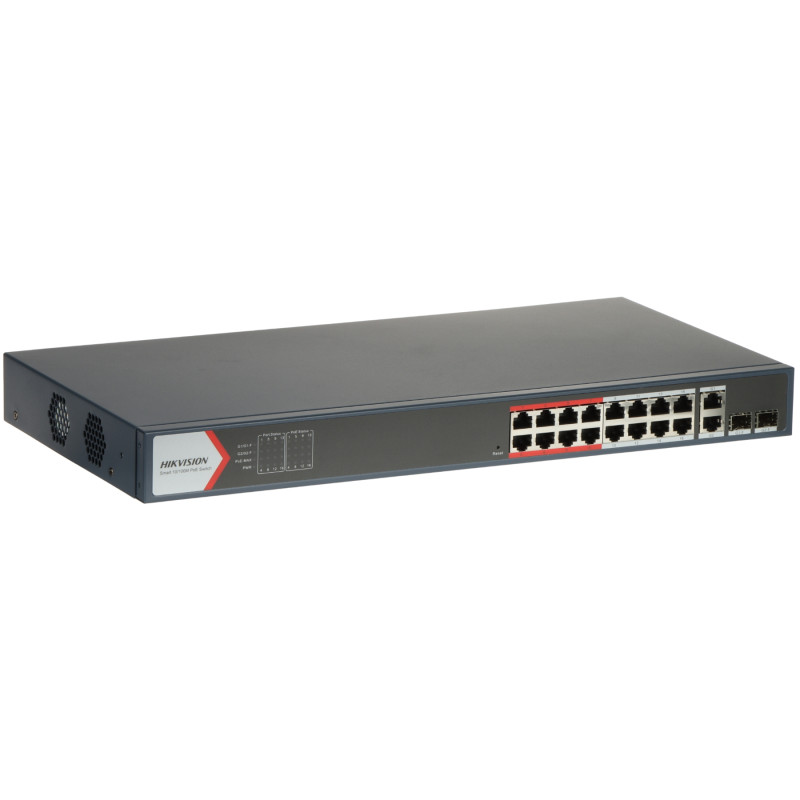

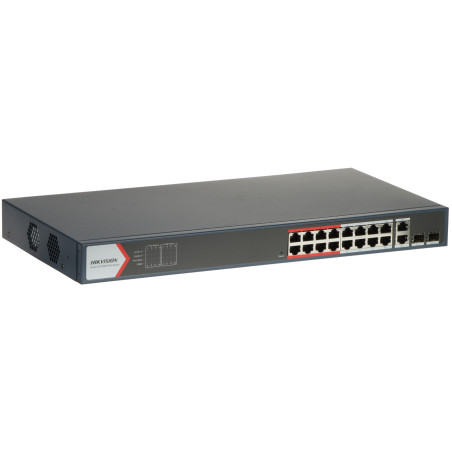

16 Port PoE Smart Managed Gigabit Switch with 2 Combo SFP Ports Rack 19

Model: Hikvision DS-3E1318P-EI(B)

EAN: 6931240067093 SKU: 931067099

• 16 x 10/100 Base-T RJ45 ports with PoE support (802.3af/at)
• 2 x Combo ports: SFP (Base-X) / RJ45 (Base-T) 10/100/1000 Mbps
• PoE Watchdog function - automatic restart of unresponsive devices
• Extend mode - transmission up to 300m on Cat 5e/6 UTP cable
• Smart Managed via iVMS-4200 application
• Real-time network topology visualization and port status monitoring
• Link aggregation for increased bandwidth and port protection
• Port isolation and network loop prevention
• High priority for ports 1 to 8
• Surge protection for LAN ports
• Maximum total PoE power budget of 230W
• Robust 19-inch metal rack-mount housing

Description

The DS-3E1318P-EI(B) switch is a professional networking device designed for demanding IP CCTV video surveillance systems. The device offers 16 RJ45 ports supporting PoE (Power over Ethernet) technology in 802.3af/at standards, which enables simultaneous data transmission and camera power supply using a single twisted-pair cable. Additionally, the switch is equipped with 2 Combo ports (SFP/RJ45), providing great flexibility in building the network backbone by allowing the use of fiber-optic modules for long-distance transmission.

A key advantage of this model is the Smart Managed function, which allows for remote management of the network structure. Thanks to full integration with the Hikvision ecosystem and iVMS-4200 software, the user gains access to network topology visualization and real-time monitoring of each port's status. The PoE Watchdog function is an intelligent solution that automatically restarts frozen cameras by cyclically cutting off power, which significantly increases system reliability and reduces the need for on-site service visits.

The device supports Extend mode, which allows for signal and power transmission over an impressive distance of up to 300 meters at 10 Mbps, making it ideal for extensive outdoor installations. The robust metal housing, designed for mounting in 19-inch rack cabinets, ensures durability and operational safety in professional server rooms. The switch also features advanced surge protection, shielding connected devices from the effects of sudden voltage spikes.

Specification

LAN and Uplink Ports

16 x RJ45 10/100 Base-T (PoE 802.3af/at)

2 x Combo port: SFP (Base-X) / RJ45 (Base-T) 10/100/1000 Base-T

Transmission Speed

Ethernet: 10 / 100 Mbps - 16 LAN & PoE Ports

Gigabit Ethernet: 10 / 100 / 1000 Mbps - 2 Uplink Ports

SFP: 1000 Mbps - 2 SFP Ports

PoE Parameters

Maximum output power: 30 W / PoE port

Maximum total power: 230 W

Standards: IEEE 802.3af, IEEE 802.3at

Management and Software

Type: Smart Managed

Software: iVMS-4200 (management and configuration)

Default IP address: 192.168.1.64

Default login: admin

Functions: Topology preview, network status, port statistics

iVMS-4200 Software Capabilities

The iVMS-4200 software is an advanced security system management platform that offers unique diagnostic functions for Smart Managed series switches. It enables full network topology visualization, allowing the administrator to instantly locate a broken connection or an overloaded port. The application allows for remote configuration of network parameters, management of the PoE Watchdog function, and real-time power consumption monitoring for each connected device. Thanks to iVMS-4200, it is also possible to perform firmware updates for multiple devices simultaneously and log system events, which is crucial for maintaining high availability of the surveillance system.

Operating Modes and Range

Extend On: up to 300 m, 10 Mbps @ UTP Cat 5e, 6

Extend Off: up to 100 m, 100 Mbps @ UTP Cat 5e, 6

Advanced Functions

PoE Watchdog: Monitoring and automatic device restart

Link Aggregation: Combining physical ports (G1, G2) into logical ones for load balancing

Port Isolation: Increased security within the network

Loop Prevention: Protection against feedback loops

Prioritization: Ports 1-8 with high priority for critical cameras

Performance

MAC address table: 16k

Throughput: Optimized for large CCTV video streams

Signaling and LED Indicators

Power (power supply)

PoE Max (power budget exceeded)

G1, G2 (gigabit port status)

Port Status (LAN port activity)

PoE Status (power on ports)

Power Supply

Input voltage: 100 V ... 240 V AC

Current type: Alternating (sinusoidal)

Operating Conditions

Operating temperature: 0 °C ... 45 °C

Certificates: CE

Construction

Housing: Metal

Mounting type: Rack 19"

SAP Code: 301803156

Warranty

Warranty period: 3 years

Additional Notes

The SFP port requires the purchase of a suitable SFP module (available separately in the offer).

Contents

1x PoE Switch DS-3E1318P-EI(B)

1x Power cable

1x Rack mounting bracket kit

1x User manual

Dimensions, Weight

Product dimensions: 221 x 440 x 44 mm (D x W x H)

Package dimensions: 315 x 530 x 95 mm (D x W x H)

Product weight: 2590 g

Weight with packaging: 3222 g
