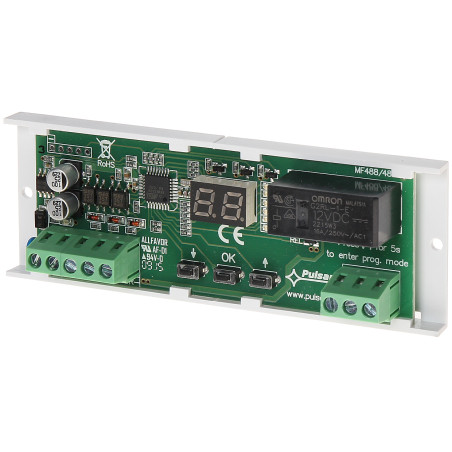

12V DC Time Relay Module 8 logic programs NO/NC timer for security systems PULSAR AWZ-516
zł161.43
Tax included
The time relay module is an advanced electronic device designed for professional security systems, access control, and building automation. The main task of this component is the precise control of the operating time of connected devices, such as electric strikes, electromagnetic locks, or alarm sounders.
Thanks to the support of eight independent time-logic programs, this module offers extraordinary flexibility in designing security scenarios. The ability to extend short control pulses makes it indispensable in situations where the standard signal from a controller is too short for the proper operation of a bolt or other actuator.
Product advantages:
- A wide range of time settings from 1 second up to 99 hours allows for adaptation to almost any automation application.
- Non-volatile EEPROM memory ensures that all entered settings are retained even after a complete power failure, which increases the level of security.
- High relay contact load capacity (up to 10A) enables direct control of devices with significant power consumption without the need for additional amplifiers.
- Clear LED signaling informs the user about the device's operating status and relay activity in real-time.
- Compact design allows for easy installation in electrical boxes, alarm system housings, or control cabinets.
The device works perfectly in projects where logical dependencies between the state of sensors (e.g., magnetic contacts) and the operation of actuators are required. It is a product of the renowned Pulsar brand, which ensures longevity and stability of technical parameters in difficult operating conditions. The module is an ideal solution for installers looking for reliable components to expand the functionality of intrusion detection and access control systems.
12V DC Time Relay Module 8 logic programs NO/NC timer for security systems
Model: PULSAR AWZ-516
EAN: 6931240079379 SKU: 931079377
- Implementation of 1 of 8 time-logic programs
- Non-volatile EEPROM memory retaining settings
- Very wide time setting range: 1s ... 99h
- High relay contact load capacity up to 10A
- NO/NC output (changeover)
- Operating status indication via LED diodes
- Low voltage 12V DC power supply
Description
The time relay module is an advanced electronic device designed for professional security systems, access control, and building automation. The main task of this component is the precise control of the operating time of connected devices, such as electric strikes, electromagnetic locks, or alarm sounders.
Thanks to the support of eight independent time-logic programs, this module offers extraordinary flexibility in designing security scenarios. The ability to extend short control pulses makes it indispensable in situations where the standard signal from a controller is too short for the proper operation of a bolt or other actuator.
Product advantages:
- A wide range of time settings from 1 second up to 99 hours allows for adaptation to almost any automation application.
- Non-volatile EEPROM memory ensures that all entered settings are retained even after a complete power failure, which increases the level of security.
- High relay contact load capacity (up to 10A) enables direct control of devices with significant power consumption without the need for additional amplifiers.
- Clear LED signaling informs the user about the device's operating status and relay activity in real-time.
- Compact design allows for easy installation in electrical boxes, alarm system housings, or control cabinets.
The device works perfectly in projects where logical dependencies between the state of sensors (e.g., magnetic contacts) and the operation of actuators are required. It is a product of the renowned Pulsar brand, which ensures longevity and stability of technical parameters in difficult operating conditions. The module is an ideal solution for installers looking for reliable components to expand the functionality of intrusion detection and access control systems.
Specification
Device type
Time relay module
Number of relay outputs
1
Power supply
10V ... 14V DC
Current consumption
Maximum 51 mA
Relay contact load capacity
10A at 30V DC / 10A at 250V AC
Output configuration
1 x NO/NC
Time setting range
From 1 second to 99 hours
Number of programs
8 time-logic modes
Settings memory
Non-volatile EEPROM memory (retains data without power)
Optical signaling
LED diodes indicating power and relay status
Operating temperature
From -10 °C to +40 °C
Connectors
Screw terminals for easy wire installation
Application
Alarm systems, Access control, Building automation
Software and logic
The device has a built-in microcontroller with eight programmed operating algorithms. The control logic allows for the implementation of functions such as: delayed activation, delayed deactivation, cyclic operation, pulse generation after triggering, and advanced logical dependencies based on the state of control inputs. The user can precisely define the duration of each operation using configuration buttons on the PCB. The time management system is extremely stable and resistant to electromagnetic interference, which is crucial in professional low-voltage installations. Each of the 8 programs has been optimized for the most common needs of intrusion detection and access control system installers. The software also manages the process of saving to EEPROM memory, which eliminates the risk of configuration loss during voltage drops.
Mounting
Possibility of mounting using adhesive tape or screws directly to the surface
Compliance
CE declaration of conformity, RoHS
Contents
1x Time relay module
1x User manual
Dimensions, Weight
Product dimensions: 23 x 100 x 43 mm (D x W x H)
Packaging dimensions: 45 x 120 x 65 mm (D x W x H)
Product weight: 50 g
Weight with packaging: 104 g
