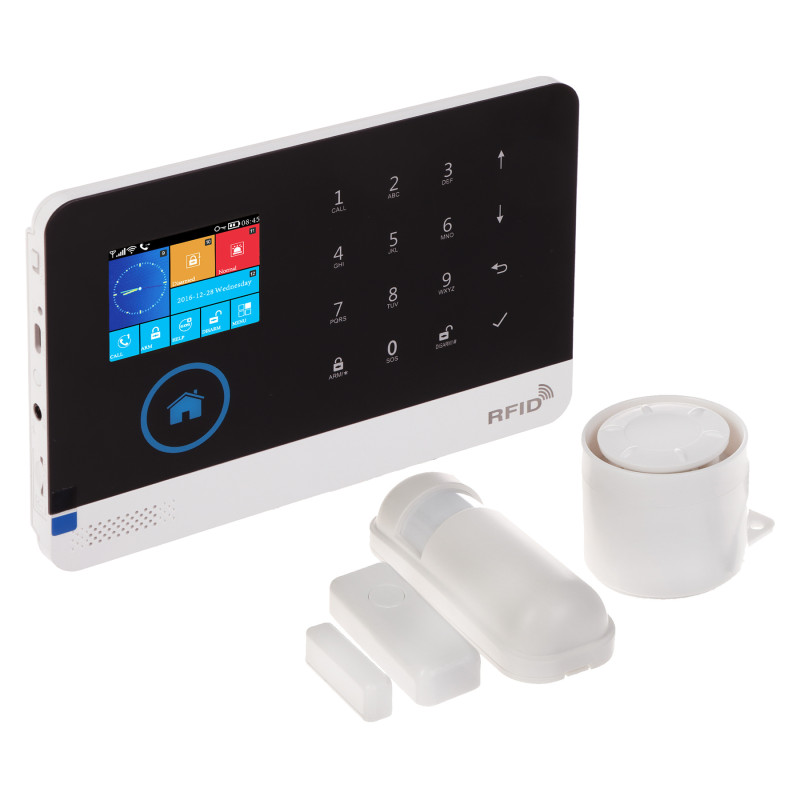

WiFi GSM Smart Home Wireless Alarm System RFID Siren Motion Detection Tuya Mobile App

Model: ATLO ATLO-AZ-WG13A-TUYA

EAN: 6931240097779 SKU: 931097778

• Complete wireless alarm system with WiFi and GSM support
• Full integration with the free Tuya Smart application (Android/iOS)
• Clear 2.4" TFT LCD color display and touch keyboard
• Support for 99 wireless zones and 30 devices
• Built-in RFID tag and card reader (Unique 125kHz)
• SMS notifications for alarms, power loss, and tampering
• Two-way voice communication (intercom function)
• Built-in 3.7V / 1000mAh backup battery
• Loud alarm siren included (120dB external / 100dB built-in)
• Easy, DIY Plug&Play configuration with no installer required

Description

The ATLO-AZ-WG13A-TUYA wireless alarm set is a modern and versatile solution designed for maximum security in houses, apartments, and offices. The system distinguishes itself with a dual communication path: the WiFi module facilitates rapid data exchange with the cloud server and sends notifications to the mobile app, while the built-in GSM module acts as a reliable channel for SMS text notifications.

The main advantage of the set is its full integration with the Tuya Smart ecosystem – one of the largest home automation platforms in the world. This allows for easy connection of the alarm with hundreds of other smart devices, creating a coherent Smart Home system. Thanks to 433 MHz wireless technology, the installation of all components is completely non-invasive – it does not require laying cables or modifying walls, making it an ideal choice for rented properties as well.

The control panel is equipped with a clear 2.4-inch TFT LCD color display, which, combined with an intuitive touch keyboard and a multi-language menu, makes daily operation simple for every household member. The system offers support for 99 wireless zones and allows for the programming of up to 30 sensors and 8 remote controls. An additional advantage is the built-in RFID card reader (Unique 125kHz standard), enabling quick alarm disarming without entering a code.

The set ensures continuous protection even in emergency situations – in case of power failure, the built-in 1000mAh lithium battery takes over power, and the system immediately sends a relevant SMS notification to the user. Two-way audio communication, a loud internal siren (100dB), and a dedicated SOS button on the remotes complete the professional nature of the device, guaranteeing peace of mind and full control over property security.

Specification

1. Panel - Display

Type: 2.4" TFT LCD; Color graphical interface; Menu in Polish

2. Panel - System Capacity

Number of supported wireless devices: max. 30 pcs.; Number of supported remote controls: max. 8 pcs. (2 included); Number of supported wireless sirens: 1 pc.

3. Panel - Network Communication

WiFi: 2.4 GHz (Tuya data transmission); GSM: Dual Band (SMS notifications); Radio frequency for sensors: 433 MHz

4. Panel - System Functions

Zones: 99 wireless zones; Timers: Yes (arming/disarming schedule); Remote control: Tuya Smart app, SMS, Remote, RFID

5. Panel - Security and Passwords

Users + administrators: 6; Default administrator password: 6666; Default user password: 1234

6. Panel - Audio Parameters

Two-way communication: Yes (built-in speaker and microphone); Built-in alarm siren: 100 dB; Alarm mute function: Yes

7. Panel - Power and Battery

Mains power: 5 V DC / 2 A (power adapter included); Emergency battery: 3.7 V / 1000 mAh (Li-Po); Power failure notification: Yes (SMS)

8. Panel - Design and Environment

Material: Plastic; Color: Black; Operating temperature: -10 °C ... 55 °C; Dimensions: 185 x 125 x 14 mm; Weight: 200 g

9. PIR Sensor - Parameters

Detection angle: 120 °; Detection range: 12 m; Power supply: 2 x 1.5V AAA batteries (included); Radio communication range: up to 30 m (open area); Encryption: Code 1527

10. Magnetic Contact - Detection

Application: Detection of door or window opening; Power supply: 1 x CR2032 3V (included); Transmitter dimensions: 60 x 23 x 13 mm; Magnet dimensions: 40 x 13 x 10 mm

11. Remote Control - Operation

Number of buttons: 4 (Arm, Disarm, Stay/Perimeter mode, SOS); Signaling: LED diode; Power supply: 1 x CR2025 (included)

12. Siren - Acoustics

Type: Wired (Jack 3.5 mm); Sound intensity: 120 dB; Color: White; Dimensions: 63.5 x 54 x 47.5 mm

13. Tuya Smart Software

The Tuya Smart app is the foundation of managing the alarm set, offering the user full control over object security from a smartphone. The software allows for instant arming and disarming of the system, configuration of entry/exit delays, and management of individual zones (up to 99 wireless zones). A key feature is the push notification system, which immediately informs about sensor triggers, mains power failure, or tampering attempts. The app allows for the creation of advanced smart home scenarios, linking the alarm with other devices in the Tuya ecosystem, such as smart lighting or IP cameras. Thanks to the P2P cloud, access to the panel is possible from anywhere in the world without the need for a static IP address. The software is fully free, available in various languages, and supports device sharing with other users (up to 6 people).

14. Language Support

Supported panel languages: Polish, English, German, Russian, Spanish, Italian, French, Portuguese, Greek, Romanian, Chinese

15. Contents

1x Alarm control panel

1x Wireless PIR sensor

1x Wireless magnetic contact

2x Remote control

1x Wired siren

1x 5V/2A power adapter

Mounting accessories

User manual

Dimensions, Weight

Product dimensions: 14 x 185 x 125 mm (D x W x H)

Packaging dimensions: 95 x 210 x 150 mm (D x W x H)

Product weight: 420 g

Weight with packaging: 594 g
