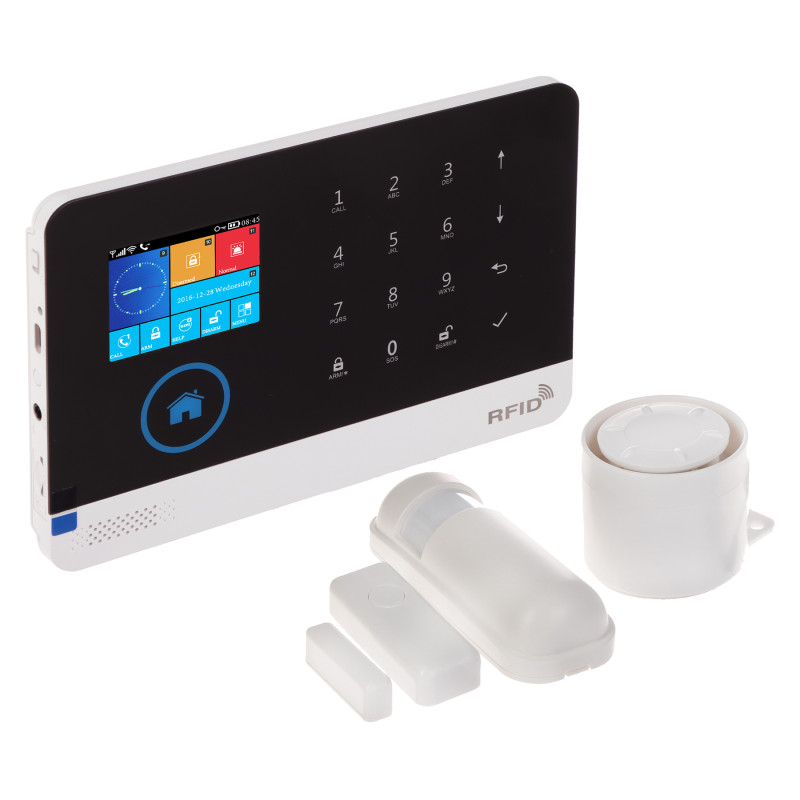

WiFi GSM Smart Home Alarm System RFID Siren Motion Detection Tuya App

Model: ATLO ATLO-AZ-WG13A-TUYA

EAN: 6931240097779 SKU: 931097778

• Complete wireless alarm system with WiFi and GSM support
• Full integration with free Tuya Smart application (Android/iOS)
• Clear 2.4" TFT LCD color display and touch keyboard
• Support for 99 wireless zones and 30 devices
• Built-in RFID key fob and card reader (Unique 125kHz)
• SMS notifications for alarm, power loss, and tampering
• Two-way voice communication (intercom function)
• Built-in backup battery 3.7V / 1000mAh
• Loud alarm siren included (120dB external / 100dB built-in)
• Easy, DIY Plug&Play configuration without the need for an installer

Description

The ATLO-AZ-WG13A-TUYA wireless alarm kit is a modern and versatile solution designed for maximum security of homes, apartments, and offices. The system is distinguished by a dual communication path: the WiFi module is used for instant data exchange with the cloud server and sending notifications to the mobile application, while the built-in GSM module acts as a reliable channel for SMS text notifications.

The main advantage of the kit is its full integration with the Tuya Smart ecosystem – one of the largest home automation platforms in the world. This allows for easy connection of the alarm with hundreds of other smart devices, creating a cohesive Smart Home system. Thanks to 433 MHz wireless technology, the installation of all components is completely non-invasive – it does not require laying cables or interfering with the wall structure, making it an ideal choice for rental properties as well.

The central unit is equipped with a clear 2.4-inch color TFT LCD display, which, combined with an intuitive touch keyboard and menu in Polish, makes everyday operation simple for every household member. The system offers support for 99 wireless zones and allows for programming up to 30 sensors and 8 remote controls. An additional advantage is the built-in RFID card reader in the Unique 125kHz standard, allowing for quick disarming of the alarm without entering a code.

The set takes care of continuous protection even in emergency situations – in case of a mains power failure, the built-in 1000mAh lithium battery takes over power supply, and the system immediately sends a relevant SMS notification to the user. Two-way audio communication, a loud internal siren (100dB), and a dedicated SOS button on the remote controls complete the professional nature of the device, guaranteeing peace of mind and full control over property security.

Specification

1. Central Unit - Display

Type: 2.4 " TFT LCD; Color graphical interface; Menu in Polish

2. Central Unit - System Capacity

Number of supported wireless devices: max. 30 pcs.; Number of supported remote controls: max. 8 pcs. (2 included in set); Number of supported wireless sirens: 1 pc.

3. Central Unit - Network Communication

WiFi: 2.4 GHz (Tuya data transmission); GSM: Dual Band (SMS notifications); Radio frequency for sensors: 433 MHz

4. Central Unit - System Functions

Zones: 99 wireless zones; Timers: Yes (arming/disarming schedule); Remote control: Tuya Smart application, SMS, Remote control, RFID

5. Central Unit - Security and Passwords

Users + administrators: 6; Default administrator password: 6666; Default user password: 1234

6. Central Unit - Audio Parameters

Two-way communication: Yes (built-in speaker and microphone); Built-in alarm siren: 100 dB; Alarm mute function: Yes

7. Central Unit - Power Supply and Battery

Mains power: 5 V DC / 2 A (power adapter included); Backup battery: 3.7 V / 1000 mAh (Li-Po); Power loss notification: Yes (SMS)

8. Central Unit - Construction and Environment

Material: Plastic; Color: Black; Operating temperature: -10 °C ... 55 °C; Dimensions: 185 x 125 x 14 mm; Weight: 200 g

9. PIR Detector - Parameters

Detection angle: 120 °; Detection range: 12 m; Power supply: 2 x 1.5V AAA battery (included); Radio communication range: up to 30 m (open area); Encryption: Code 1527

10. Magnetic Contact - Detection

Application: Detection of opening doors or windows; Power supply: 1 x CR2032 3V (included); Transmitter dimensions: 60 x 23 x 13 mm; Magnet dimensions: 40 x 13 x 10 mm

11. Remote Control - Operation

Number of buttons: 4 (Arming, Disarming, Perimeter mode, SOS); Signaling: LED; Power supply: 1 x CR2025 (included)

12. Signaling Device - Acoustics

Type: Wired (Jack 3.5 mm); Sound intensity: 120 dB; Color: White; Dimensions: 63.5 x 54 x 47.5 mm

13. Tuya Smart Software

The Tuya Smart application is the foundation of managing the alarm kit, offering the user full control over the facility's security from a smartphone level. The software enables instant arming and disarming of the system, configuration of entry and exit delays, and management of individual zones (up to 99 wireless zones). A key functionality is the push notification system, which immediately informs about sensor violation, mains power loss, or sabotage attempts. The application allows creating advanced smart home scenarios, connecting the alarm with other Tuya ecosystem devices, such as smart lighting or IP cameras. Thanks to P2P cloud, access to the central unit is possible from anywhere in the world without the need for a static IP address. The software is fully free, available in Polish and supports sharing devices with other users (up to 6 people).

14. Language Support

Supported central unit languages: Polish, English, German, Russian, Spanish, Italian, French, Portuguese, Greek, Romanian, Chinese

15. Contents

1x Alarm central unit

1x Wireless PIR detector

1x Wireless magnetic contact

2x Remote control

1x Wired siren

1x Power adapter 5V/2A

Mounting accessories

User manual

Dimensions, Weight

Product dimensions: 14 x 185 x 125 mm (D x W x H)

Package dimensions: 95 x 210 x 150 mm (D x W x H)

Product weight: 420 g

Weight with packaging: 594 g
