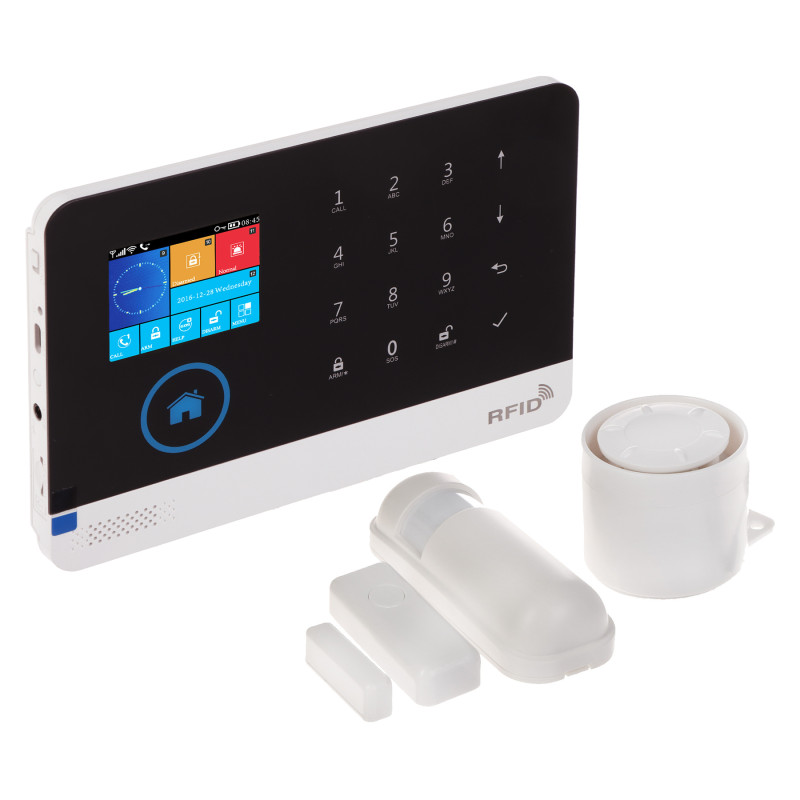

WiFi GSM Smart Home Wireless Alarm System RFID Siren Motion Detection Tuya App

Model: ATLO ATLO-AZ-WG13A-TUYA

EAN: 6931240097779 SKU: 931097778

• Complete wireless alarm system with WiFi and GSM support
• Full integration with the free Tuya Smart app (Android/iOS)
• Clear, 2.4" TFT LCD color display and touch keyboard
• Support for 99 wireless zones and 30 devices
• Built-in RFID tag and card reader (Unique 125kHz)
• SMS notifications for alarms, power loss, and tampering
• Two-way voice communication (intercom function)
• Built-in 3.7V / 1000mAh backup battery
• Loud alarm siren included (120dB external / 100dB internal)
• Easy, DIY Plug&Play configuration without the need for an installer

Description

The ATLO-AZ-WG13A-TUYA wireless alarm set is a modern and versatile solution designed for maximum security in homes, apartments, and offices. The system features dual communication paths: the WiFi module is used for instant data exchange with the cloud server and sending notifications to the mobile app, while the built-in GSM module acts as a reliable channel for SMS text notifications.

The main advantage of the set is its full integration with the Tuya Smart ecosystem – one of the largest home automation platforms in the world. This allows for easy connection of the alarm with hundreds of other smart devices, creating a cohesive Smart Home system. Thanks to 433 MHz wireless technology, the installation of all components is completely non-invasive – it does not require laying cables or interfering with the wall structure, making it an ideal choice for rented properties as well.

The control panel is equipped with a clear 2.4-inch color TFT LCD display, which, combined with an intuitive touch keyboard and a Polish-language menu, makes daily operation simple for every household member. The system offers support for 99 wireless zones and allows for programming up to 30 detectors and 8 remote controls. An additional advantage is the built-in RFID card reader (Unique 125kHz standard), enabling quick alarm disarming without entering a code.

The set ensures continuous protection even in emergency situations – in the event of a power failure, the built-in 1000mAh lithium battery takes over power supply, and the system immediately sends a relevant SMS notification to the user. Two-way audio communication, a loud internal siren (100dB), and a dedicated SOS button on the remotes complete the professional nature of the device, guaranteeing peace of mind and full control over property security.

Specification

1. Control Panel - Display

Type: 2.4 " TFT LCD; Color graphical interface; Polish language menu

2. Control Panel - System Capacity

Number of supported wireless devices: max. 30 units; Number of supported remotes: max. 8 units (2 included); Number of supported wireless sirens: 1 unit

3. Control Panel - Network Communication

WiFi: 2.4 GHz (Tuya data transmission); GSM: Dual Band (SMS notifications); Radio frequency for detectors: 433 MHz

4. Control Panel - System Functions

Zones: 99 wireless zones; Timers: Yes (arming/disarming schedule); Remote control: Tuya Smart app, SMS, Remote, RFID

5. Control Panel - Security and Passwords

Users + administrators: 6; Default administrator password: 6666; Default user password: 1234

6. Control Panel - Audio Parameters

Two-way communication: Yes (built-in speaker and microphone); Built-in alarm siren: 100 dB; Alarm mute function: Yes

7. Control Panel - Power and Battery

Mains power: 5 V DC / 2 A (power adapter included); Emergency battery: 3.7 V / 1000 mAh (Li-Po); Power loss notification: Yes (SMS)

8. Control Panel - Construction and Environment

Material: Plastic; Color: Black; Operating temperature: -10 °C ... 55 °C; Dimensions: 185 x 125 x 14 mm; Weight: 200 g

9. PIR Detector - Parameters

Detection angle: 120 °; Detection range: 12 m; Power supply: 2 x 1.5V AAA battery (included); Radio communication range: up to 30 m (open area); Encryption: Code 1527

10. Reed Switch - Detection

Application: Detection of opening doors or windows; Power supply: 1 x CR2032 3V (included); Transmitter dimensions: 60 x 23 x 13 mm; Magnet dimensions: 40 x 13 x 10 mm

11. Remote Control - Operation

Number of buttons: 4 (Arm, Disarm, Perimeter mode, SOS); Signaling: LED diode; Power supply: 1 x CR2025 (included)

12. Signaling Device - Acoustics

Type: Wired (Jack 3.5 mm); Sound intensity: 120 dB; Color: White; Dimensions: 63.5 x 54 x 47.5 mm

13. Tuya Smart Software

The Tuya Smart app is the foundation of alarm set management, offering the user full control over the facility's security from a smartphone level. The software enables instant arming and disarming of the system, configuration of entry/exit delays, and management of individual zones (up to 99 wireless zones). A key functionality is the push notification system, which instantly informs about triggered detectors, mains power loss, or tampering attempts. The app allows for creating advanced smart home scenarios, connecting the alarm with other devices in the Tuya ecosystem, such as smart lighting or IP cameras. Thanks to P2P cloud, access to the control panel is possible from anywhere in the world without the need for a static IP address. The software is fully free, available in Polish, and supports device sharing with other users (up to 6 people).

14. Language Support

Supported control panel languages: Polish, English, German, Russian, Spanish, Italian, French, Portuguese, Greek, Romanian, Chinese

15. Contents

1x Alarm control panel

1x Wireless PIR detector

1x Wireless reed switch

2x Remote control

1x Wired siren

1x 5V/2A power adapter

Mounting accessories

User manual

Dimensions, Weight

Product dimensions: 14 x 185 x 125 mm (D x W x H)

Package dimensions: 95 x 210 x 150 mm (D x W x H)

Product weight: 420 g

Package weight: 594 g
