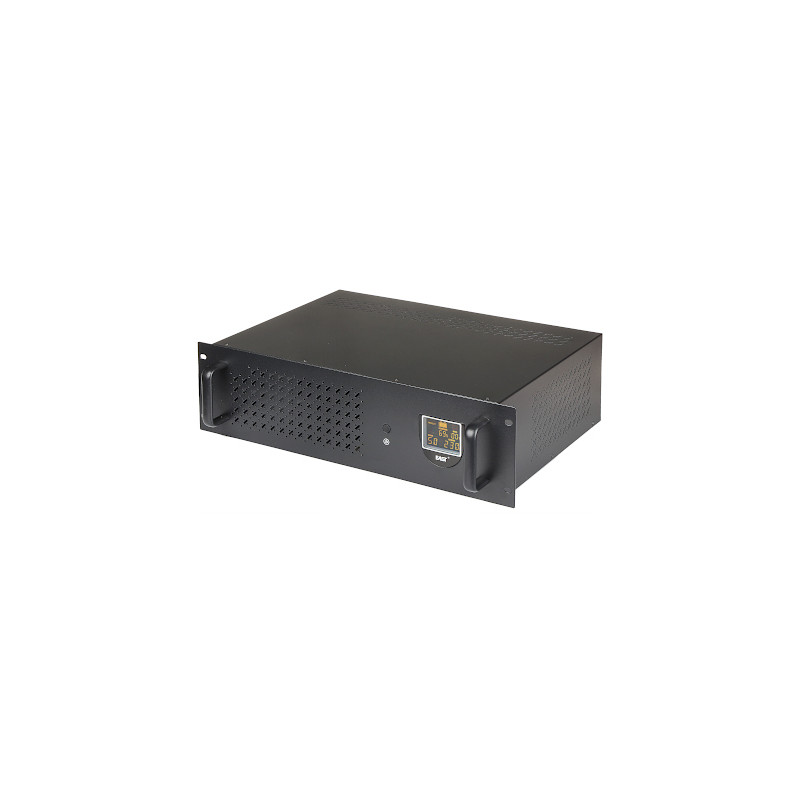

UPS uninterruptible power supply for 19 inch RACK cabinet 2000VA 1200W Line-Interactive AVR LCD UPSmart USB

Model: EAST AT-UPS2000R/2-RACK

EAN: 6931240095201 SKU: 931095209

• UPS type: Line-interactive (active network monitoring)
• 19-inch RACK standard mounting (3U height)
• Apparent power 2000 VA / Active power 1200 W
• Compatibility with power supplies with active power factor correction (APFC)
• Built-in automatic voltage regulator (AVR)
• Clear LCD display providing information on operating status and network parameters
• Cold start function (startup without mains power)
• RJ45 data line protection (Ethernet filter)
• Integrated EMI/RFI interference filter
• Remote management via USB 2.0 port and UPSmart software
• Two built-in 12V/9Ah AGM batteries
• Three power outputs: 2x Schuko (CEE 7/3) and 1x IEC C13
• Short switching time: typically 2-7 ms
• Automatic restart after mains power restoration
• Short-circuit, overload, and surge protection

Description

The AT-UPS2000R/2-RACK UPS power supply is an advanced uninterruptible power supply solution designed specifically for installation in professional 19-inch RACK telecommunications cabinets. Thanks to its 3U height and robust construction, it integrates perfectly with servers, NVR recorders, and switches in complex CCTV and IT installations.

Specification

Approximated sine wave

The main advantage of the device is the line-interactive technology, which not only ensures immediate switching to battery power in 2 to 7 milliseconds but also actively filters the mains voltage by continuously analyzing phase parameters. The built-in Automatic Voltage Regulator (AVR) corrects voltage drops and surges without the need to switch to battery mode, which significantly extends cell life and protects sensitive electronics against fluctuations in the power grid.

The device is fully compatible with modern power supplies equipped with an active power factor correction (APFC) circuit, making it a universal choice for workstations. A clear, large LCD display on the front panel allows for instantaneous monitoring of voltage levels, frequency, battery capacity, and current power supply load.

System safety is enhanced by integrated EMI/RFI filters, which eliminate electromagnetic interference, and dedicated RJ45 connector protection for the Ethernet line. The set includes specialized UPSmart software, which enables remote management of operating parameters directly from a PC. It is the reliable heart of every security system, guaranteeing continuous operation even in the event of a total mains power failure.

Line-interactive

Output voltage shape

Active power: 1200 W, Apparent power: 2000 VA

UPS type

Voltage: 230 V AC ± 25 %, Frequency: 50 / 60 Hz (auto-detection)

Device power

Voltage: 230 V AC ± 10 %, Frequency: 50 / 60 Hz ± 1 %

Input parameters

Switching time: 2 ... 7 ms (typical), max. 10 ms; Charging time (up to 90%): ≤ 8 hours

Output parameters

2 units - 12V/9Ah AGM (Absorbent Glass Mat)

Operational times

62 min @ 100W, 31 min @ 200W, 16 min @ 300W, 9.5 min @ 500W, 2.5 min @ 800W, 1 min @ 1000W

Battery

3 outputs: 2 x CEE 7/3 (Schuko), 1 x IEC C13; USB 2.0 port (PC access); 2 x RJ-45 (filter input/output)

Estimated runtime

Fuse, short-circuit protection, overload protection, RJ45 surge protection, Ethernet filter, output voltage filtration, EMI/RFI noise filter

Connectors and outputs

LCD display: input/output voltage level, input frequency, battery capacity, load, alarm; Audible signaling

Protection systems

UPSmart software is a comprehensive tool for real-time UPS status monitoring. It allows viewing graphs of voltage, frequency, and battery charge levels. A key function is the ability to program automatic and safe shutdown of operating systems in the event of a critical power drop, which prevents data loss. The software supports e-mail/SMS event notifications, maintains an event log, and allows for remote battery testing. It supports Windows (95 to 10) and Linux systems.

Operating status signaling

Microprocessor control, self-diagnostic function, automatic voltage regulator (AVR), automatic restart, APFC compatibility

Software functionality

Operating temperature: 0 °C ... 40 °C, Relative humidity: 20 ... 90 % (non-condensing)

Management and control

Type: Rack 19 inch, Height: 3U, Standard dimensions: 440 x 308 x 132 mm, Dimensions with bracket: 485 x 345 x 132 mm

Environmental conditions

1x UPS

1x UPSmart software (CD/Link)

1x USB cable

1x User manual

Housing

Dimensions, Weight

Product dimensions: 308 x 440 x 132 mm (D x W x H)

Packaging dimensions: 400 x 530 x 225 mm (D x W x H)

Product weight: 15000 g

Weight with packaging: 16118 g
