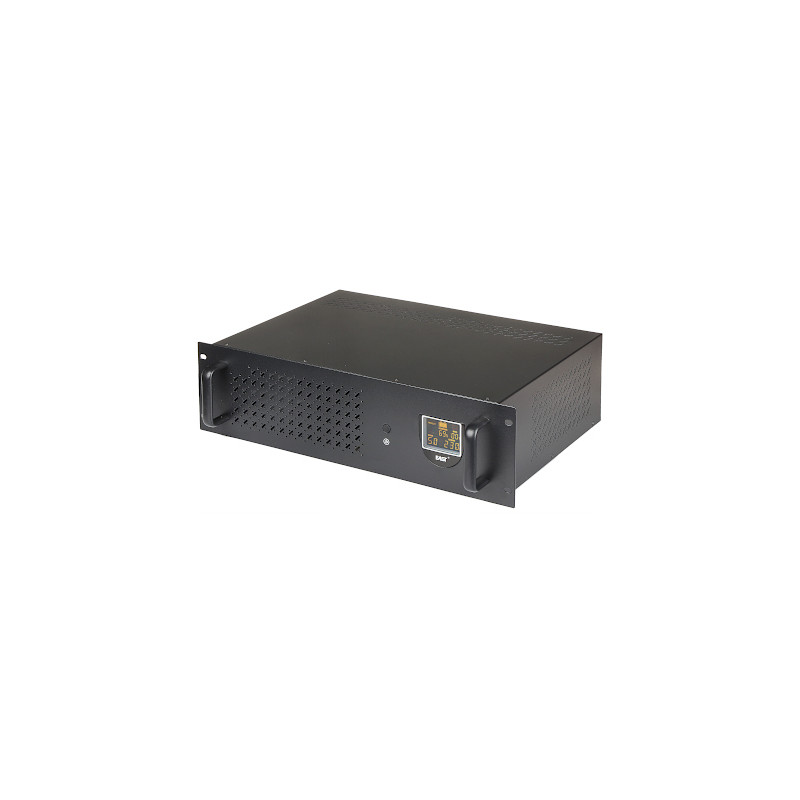

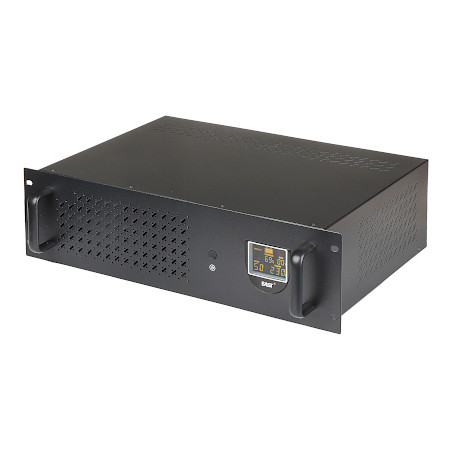

UPS Emergency Power Supply for 19 Inch RACK Cabinet 2000VA 1200W Line Interactive AVR LCD UPSmart USB EAST AT-UPS2000R/2-RACK
zł 1 253,46
Tax included
The AT-UPS2000R/2-RACK UPS power supply is an advanced emergency power solution, designed specifically for mounting in professional 19-inch RACK telecommunications cabinets. Thanks to its 3U height and robust construction, it integrates perfectly with servers, NVR recorders, and switches in complex CCTV and IT installations.
The main advantage of the device is its line-interactive technology, which not only provides immediate switching to battery power in 2 to 7 milliseconds but also actively filters the mains voltage by continuously analyzing phase parameters. The built-in automatic voltage regulator (AVR) corrects voltage drops and surges without the need to switch to battery mode, which significantly extends cell life and protects sensitive electronics against fluctuations in the power grid.
The device is fully compatible with modern power supplies equipped with active power factor correction (APFC), making it a universal choice for workstations. A clear, large LCD display on the front panel allows for instant monitoring of voltage levels, frequency, battery capacity, and current UPS load.
System safety is enhanced by integrated EMI/RFI filters that eliminate electromagnetic interference, and dedicated RJ45 connector protection for Ethernet lines. The set includes specialized UPSmart software, which enables remote management of operating parameters directly from a PC. This is the reliable heart of any security system, guaranteeing operational continuity even in the event of a total mains power failure.
UPS Emergency Power Supply for 19 Inch RACK Cabinet 2000VA 1200W Line Interactive AVR LCD UPSmart USB
Model: EAST AT-UPS2000R/2-RACK
EAN: 6931240095201 SKU: 931095209
- Power supply type: Line-interactive (active network monitoring)
- Mounting in 19 inch RACK standard (3U height)
- Apparent power 2000 VA / Active power 1200 W
- Compatibility with power supplies with active power factor correction (APFC)
- Built-in automatic voltage regulator (AVR)
- Clear LCD display informing about operating status and network parameters
- Cold start function (start-up without mains voltage)
- RJ45 data line protection (Ethernet filter)
- Integrated EMI/RFI interference filter
- Remote management via USB 2.0 port and UPSmart software
- Two built-in 12V/9Ah AGM batteries
- Three power outputs: 2x Schuko (CEE 7/3) and 1x IEC C13
- Short switching time: typically 2-7 ms
- Automatic restart after power restoration
- Short-circuit, overload, and surge protection
Description
The AT-UPS2000R/2-RACK UPS power supply is an advanced emergency power solution, designed specifically for mounting in professional 19-inch RACK telecommunications cabinets. Thanks to its 3U height and robust construction, it integrates perfectly with servers, NVR recorders, and switches in complex CCTV and IT installations.
The main advantage of the device is its line-interactive technology, which not only provides immediate switching to battery power in 2 to 7 milliseconds but also actively filters the mains voltage by continuously analyzing phase parameters. The built-in automatic voltage regulator (AVR) corrects voltage drops and surges without the need to switch to battery mode, which significantly extends cell life and protects sensitive electronics against fluctuations in the power grid.
The device is fully compatible with modern power supplies equipped with active power factor correction (APFC), making it a universal choice for workstations. A clear, large LCD display on the front panel allows for instant monitoring of voltage levels, frequency, battery capacity, and current UPS load.
System safety is enhanced by integrated EMI/RFI filters that eliminate electromagnetic interference, and dedicated RJ45 connector protection for Ethernet lines. The set includes specialized UPSmart software, which enables remote management of operating parameters directly from a PC. This is the reliable heart of any security system, guaranteeing operational continuity even in the event of a total mains power failure.
Specification
Output voltage shape
Approximated sine wave
Power supply type
Line-interactive
Device power
Active power: 1200 W, Apparent power: 2000 VA
Input parameters
Voltage: 230 V AC ± 25 %, Frequency: 50 / 60 Hz (auto detection)
Output parameters
Voltage: 230 V AC ± 10 %, Frequency: 50 / 60 Hz ± 1 %
Operating times
Switching time: 2 ... 7 ms (typical), max. 10 ms; Charging time (to 90%): ≤ 8 hours
Battery
2 units - 12V/9Ah AGM (Absorbent Glass Mat)
Estimated runtime
62 min @ 100W, 31 min @ 200W, 16 min @ 300W, 9.5 min @ 500W, 2.5 min @ 800W, 1 min @ 1000W
Connectors and outputs
3 outputs: 2 x CEE 7/3 (Schuko), 1 x IEC C13; USB 2.0 port (PC access); 2 x RJ-45 (filter input/output)
Protection systems
Fuse, short-circuit, overload, surge protection RJ45, Ethernet filter, output voltage filtration, EMI/RFI noise filter
Operating status signaling
LCD display: input/output voltage level, input frequency, battery capacity, load, alarm; Sound signaling
Software functionality
UPSmart software is a comprehensive tool for monitoring the UPS status in real-time. It allows viewing voltage, frequency, and battery charge level graphs. A key feature is the ability to program an automatic and safe shutdown of operating systems in case of a critical power drop, which prevents data loss. The software supports e-mail/SMS event notifications, maintains an event log, and allows for remote battery testing. It supports Windows (95 to 10) and Linux systems.
Management and control
Microprocessor control, self-diagnosis function, automatic voltage regulator AVR, automatic restart, APFC compatibility
Environmental conditions
Operating temperature: 0 °C ... 40 °C, Relative humidity: 20 ... 90 % (non-condensing)
Housing
Type: 19-inch Rack, Height: 3U, Standard dimensions: 440 x 308 x 132 mm, Dimensions with handle: 485 x 345 x 132 mm
Contents
1x UPS power supply
1x UPSmart software (CD/Link)
1x USB cable
1x User manual
Dimensions, Weight
Product dimensions: 308 x 440 x 132 mm (Depth x Width x Height)
Package dimensions: 400 x 530 x 225 mm (Depth x Width x Height)
Product weight: 15000 g
Weight with packaging: 16118 g
