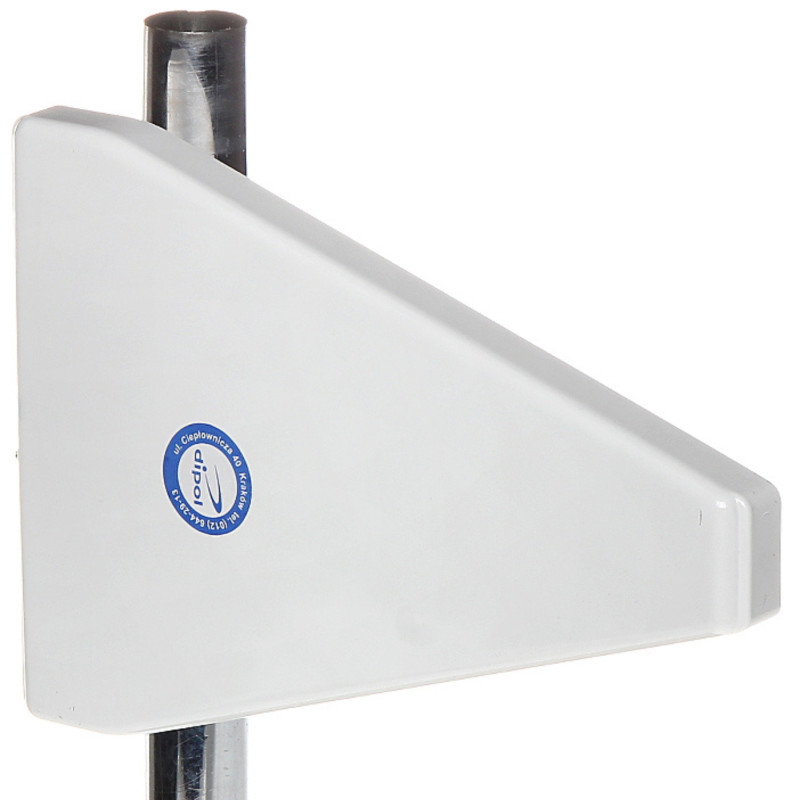

Logarithmic GSM DCS UMTS HSDPA LTE Antenna 9dBi Gain 10m Cable Right Angle SMA Connector Signal Booster Modem Router SIGNAL ATK-
zł270.37
Tax included
A logarithmic antenna is an advanced technical solution designed to significantly improve connection quality in mobile telephony and broadband data transmission systems. It is perfect for situations where standard built-in modem or router antennas prove insufficient due to long distances from the base station, terrain topography, or architectural obstacles.
Thanks to support for a wide frequency range from 800 MHz to 3000 MHz, the device is fully compatible with standards such as GSM, DCS, UMTS, HSDPA, and modern LTE. Using this antenna allows for connection stabilization, increased data transfer speeds, and latency (ping) reduction, which is crucial for comfortable remote work, gaming, or video streaming.
The logarithmic design is characterized by constant energy gain across a wide frequency range, making it an extremely versatile solution. An energy gain of up to 9 dBi guarantees effective signal amplification even in difficult reception conditions. The antenna has been designed with durability and weather resistance in mind, allowing for safe outdoor installation.
The set includes a high-quality 10-meter RF-5 cable, which minimizes signal loss during transmission between the antenna and the receiver. The use of a right-angle SMA connector facilitates connection to devices in confined spaces while ensuring a solid and reliable electrical contact. The antenna assembly is fast and intuitive, and the included accessories allow for easy attachment to masts with a diameter of up to 45 mm. It is a reliable choice for anyone looking for stable access to a mobile network.
Logarithmic GSM DCS UMTS HSDPA LTE Antenna 9dBi Gain 10m Cable Right Angle SMA Connector Signal Booster Modem Router
Model: SIGNAL ATK-ALP/LTE+SMA-KAT/10
EAN: 6931240039564 SKU: 931039561
- Wide operating range: from 800 MHz to 3000 MHz
- Support for modern GSM, DCS, UMTS, HSDPA and LTE standards
- Energy gain of up to 9 dBi
- Includes 10-meter low-loss RF-5 cable
- Right-angle SMA connector for convenient installation
- DC short-circuit construction - device protection
- Can operate in vertical or horizontal polarization
- Robust mounting for masts up to 45 mm in diameter
- Very simple and fast outdoor installation process
Description
A logarithmic antenna is an advanced technical solution designed to significantly improve connection quality in mobile telephony and broadband data transmission systems. It is perfect for situations where standard built-in modem or router antennas prove insufficient due to long distances from the base station, terrain topography, or architectural obstacles.
Thanks to support for a wide frequency range from 800 MHz to 3000 MHz, the device is fully compatible with standards such as GSM, DCS, UMTS, HSDPA, and modern LTE. Using this antenna allows for connection stabilization, increased data transfer speeds, and latency (ping) reduction, which is crucial for comfortable remote work, gaming, or video streaming.
The logarithmic design is characterized by constant energy gain across a wide frequency range, making it an extremely versatile solution. An energy gain of up to 9 dBi guarantees effective signal amplification even in difficult reception conditions. The antenna has been designed with durability and weather resistance in mind, allowing for safe outdoor installation.
The set includes a high-quality 10-meter RF-5 cable, which minimizes signal loss during transmission between the antenna and the receiver. The use of a right-angle SMA connector facilitates connection to devices in confined spaces while ensuring a solid and reliable electrical contact. The antenna assembly is fast and intuitive, and the included accessories allow for easy attachment to masts with a diameter of up to 45 mm. It is a reliable choice for anyone looking for stable access to a mobile network.
Specification
Frequency range
800 ... 3000 MHz - broadband characteristic allowing operation in multiple wireless communication systems.
Supported technologies
GSM / DCS / UMTS / HSDPA / LTE (Long Term Evolution). LTE technology enables the integration of multiple technical solutions for high-speed data transmission up to 1 Gb/s.
Energy gain
Max. 9 dBi (dBi indicates how much the antenna gain is greater relative to a hypothetical isotropic antenna at the same power supplied).
Impedance
50 Ω - parameter defining the resistance offered by the antenna to wave vibrations, standard for radiocommunication systems.
VSWR
< 1.7 - standing wave ratio defining the degree of antenna matching to the feeder line; low values mean high efficiency.
Vertical beam (H)
The width of the main beam in the vertical plane (H) is 76 degrees.
Vertical beam (V)
The width of the main beam in the vertical plane (V) is 66 degrees.
Horizontal beam (H)
The width of the main beam in the horizontal plane (H) is 66 degrees.
Horizontal beam (V)
The width of the main beam in the horizontal plane (V) is 76 degrees.
Polarization
Vertical / Horizontal - systematic relationship of the direction of electric field oscillation relative to the direction of wave propagation.
Cable parameters
Length: 10 m; Type: RF-5 - low-loss cable dedicated to high frequencies.
Connector type
Right-angle SMA connector - facilitates cable connection in tight router housings.
DC protection
The antenna is a short circuit for direct current (DC), which is an element of protection against static charges.
Installation conditions
Maximum mast diameter: 45 mm; Structure adapted for outdoor operation.
Additional information
For full LTE network support (MIMO), it is required to use two antennas mounted in opposite planes (vertical/horizontal).
Content
1x Logarithmic antenna
1x RF-5 10m cable with SMA-KAT connector
1x Mounting accessories for mast
Dimensions, Weight
Product dimensions: 25 x 180 x 260 mm (D x W x H)
Packaging dimensions: 50 x 350 x 350 mm (D x W x H)
Product weight: 310 g
Weight with packaging: 920 g
